Note: This article is discontinued. You can find the current article here: 2003703 / UP Flush-mounted device connection box, with device screws

Device/connection socket - UG 60 255 60 | 60 | 20/25 mm | 13

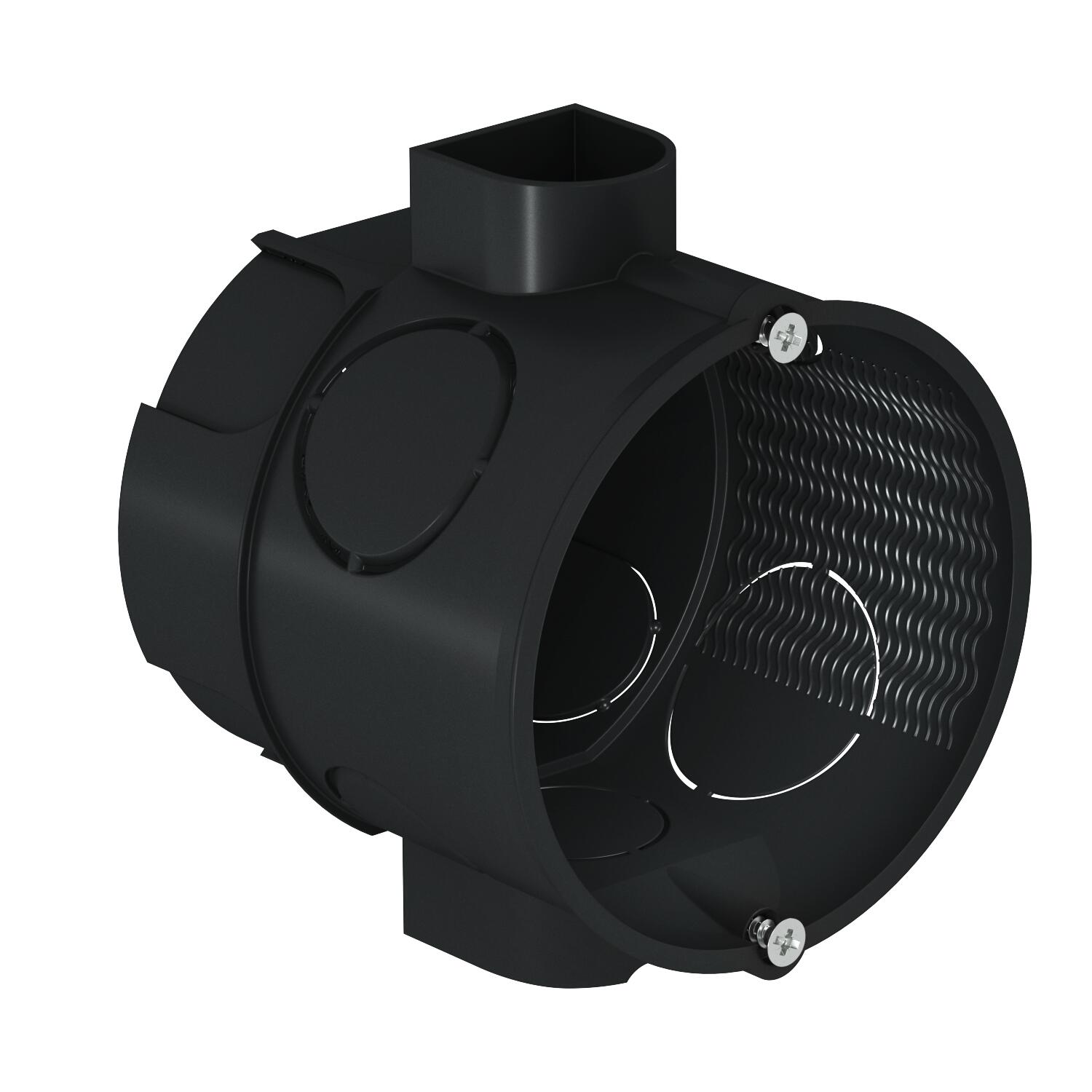

Device/connection socket - UG 60 255

Item no. 2004367 | EAN 4012195290346

Item no. / Types	2004367 / UG 60 255STS

Height	60 mm

Diameter	60 mm

for pipe diameter	20/25 mm

No. of entries	13

Product description

Product description

The ideal system for use in any kind of masonry. The products were developed according to the state of the art and are perfectly matched. They can fulfil any practical requirements, thus allowing perfect installations in record time.
The system comprises a comprehensive range of accessories and can be used for any application.

Technical data

Technical data

Accessory screw clearance	60 mm
Airtight	no
CO2 Footprint (GWP) Cradle-to-Gate	0,0622 kg CO₂e / 1 Piece
Colour	Black
Cover	Without
Cover fastening	Not applicable
Device fixing	Screw or spread
Diameter	60 mm
Dimension	Ø60mm, H62mm
Entry from rear	no
Equipment	Without
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Floor height, min.	64 mm
for pipe diameter	20/25 mm
Height	60 mm
Maintain electrical functions	Without

Material	Polystyrene
No. of entries	13
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Number of switch boxes	1
Protection rating	IP20
Rated voltage	400 V
Sealable	no
Shape	Round
Support	Tunnel support
Type of entry	break-out openings for cables and pipes Ø 20 mm and Ø 25 mm
Type of housing penetration	Pre-marking
With bolts	no
With nail strap	no
With screening	no
