Dolü branch terminals, open on both sides, 10-pole
Item no. 2055503 | EAN 4012195183914
- Product description
-

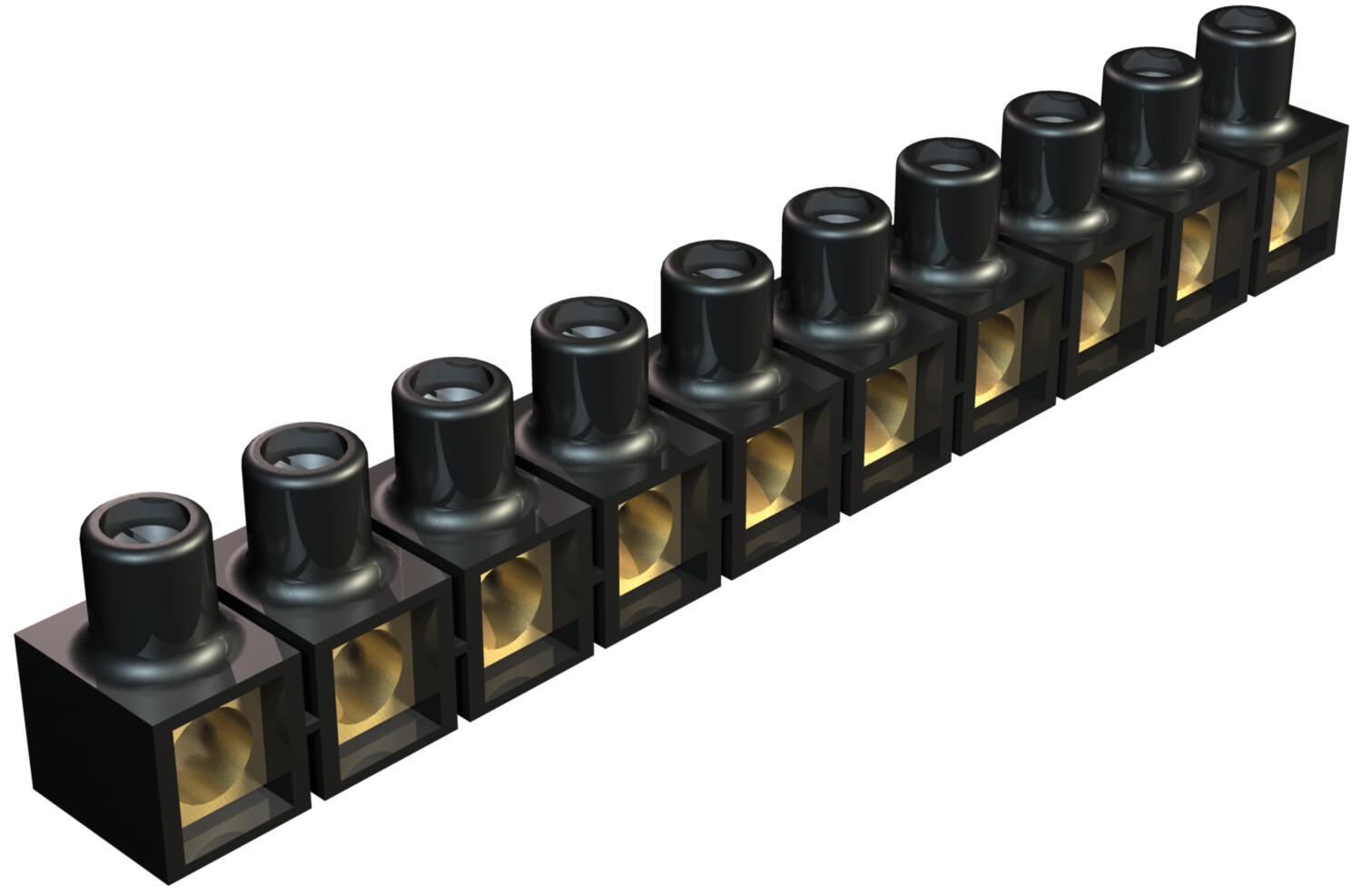

Product descriptionTerminals made of brass, screws of steel, galvanised and transparently passivated, 10-pole, strip separable into individual terminals, open on both sides.
Captive upwards screw.
Nominal cross-section 10 ÷ mm².
Nominal voltage 380 V.
Max. connectable cross-sections per terminal: 3 x 10 mm², 4 x 6 mm².
-
- Technical data
-
Technical data
Closing plate required no Colour Black Connectable conductor cross-section, single-wire, max. 10 mm² Connectable conductor cross-section, single-wire, min. 6 mm² Connection position Side Cross-section Max. connectable cross-sections per terminal: 3 x 10 mm², 4 x 6 mm² mm² Dimension 10mm² Drill hole spacing, centre 14,8 mm Explosion-tested version no Insulation material Thermoplast Material Polypropylene No. of terminals 10 Nominal cross-section, min. 10 mm² Nominal current 24 A Nominal voltage 380 V Number of screwless terminals per pole 1 Pole number 10 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors no Transparent no Version of electrical connection 1 Screw connection Dimensions

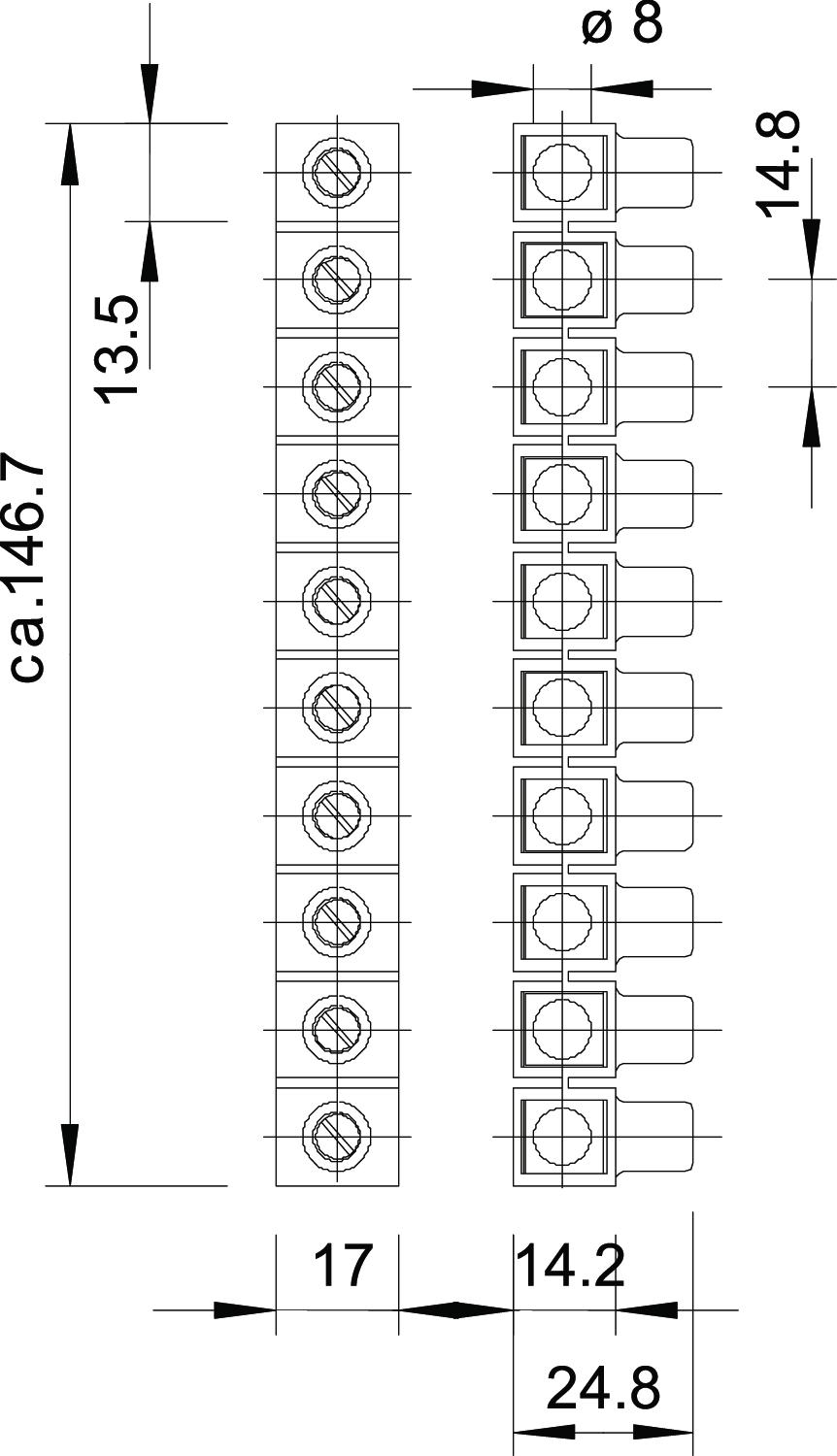

Height 24,8 mm Length 146,7 mm Width 17 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1866 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1866 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
