DSSL heavy-duty support
Item no. 7410583 | EAN 4012196540921
- Product description
-

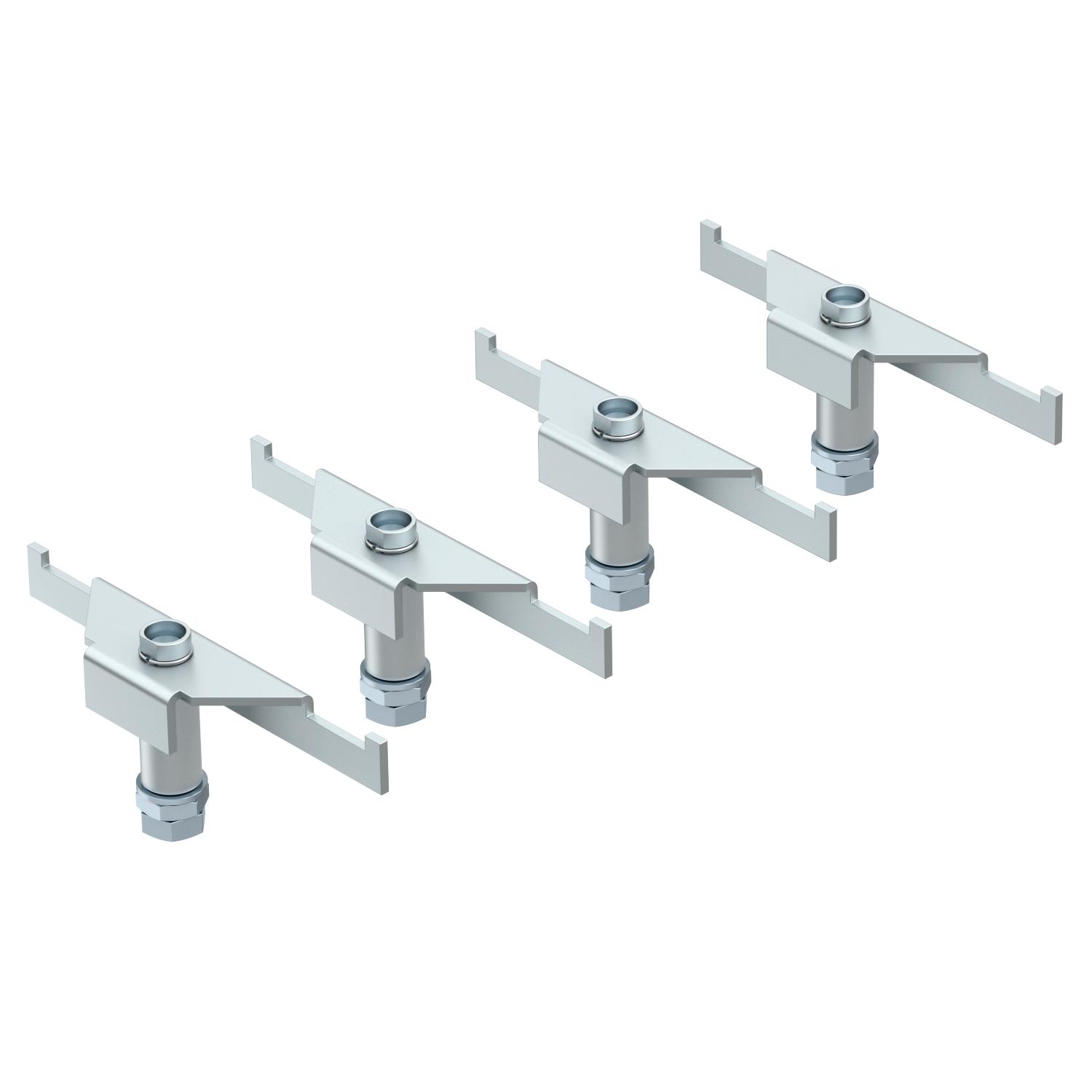

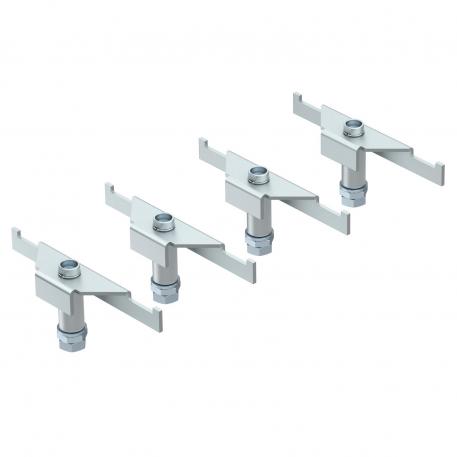

Product descriptionThe heavy-duty supports reinforce the corner areas of the type UZD-3 underfloor box for increased load requirements.
-
- Technical data
-
Technical data
Dimension 105/140 Heavy-duty version yes Material Steel Screed height, max. 140 mm Screed height, min. 105 mm Surface Strip galvanised Dimensions

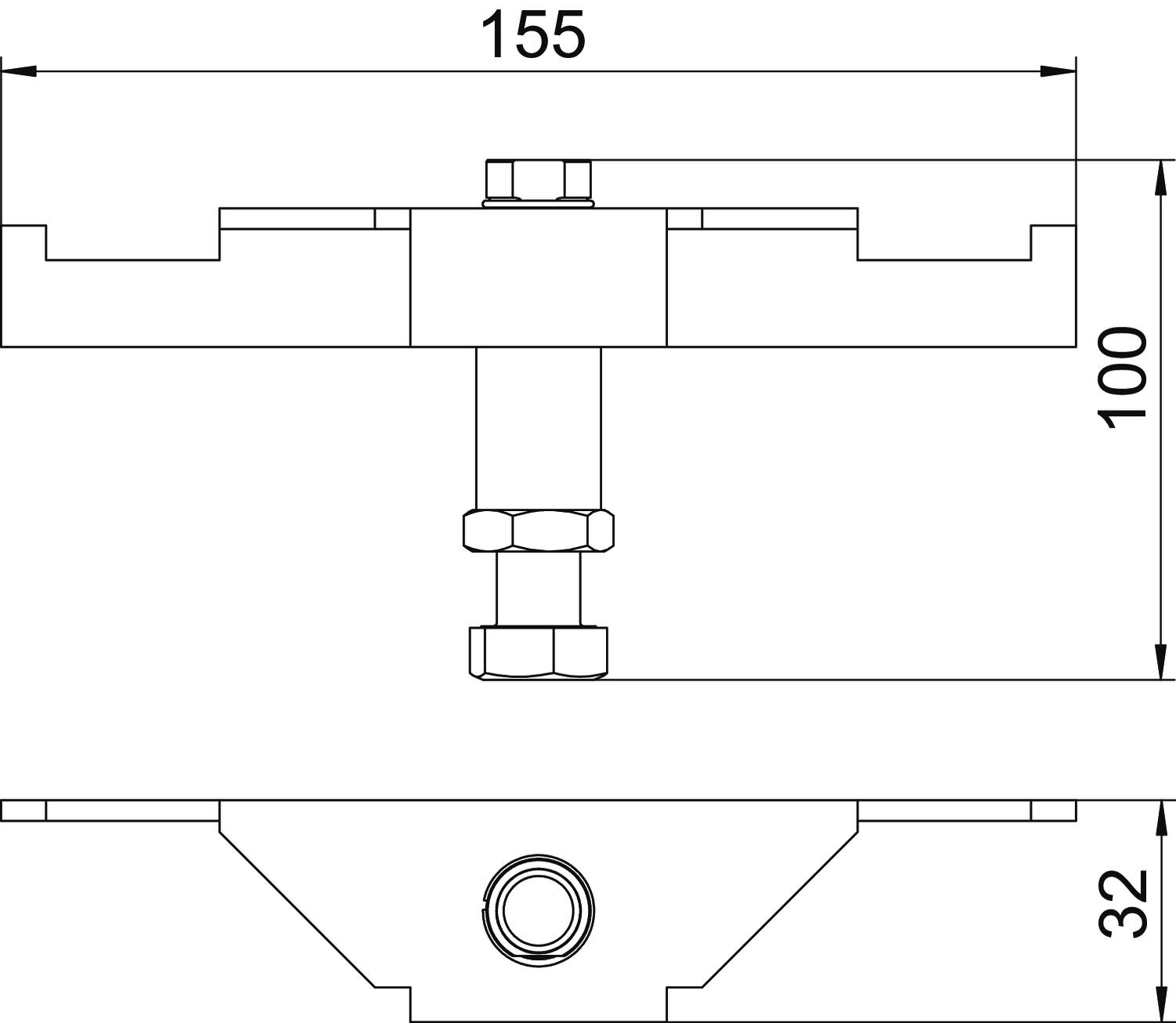

Height 100 mm Length 155 mm Width 32 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 3,2851 kg CO2e / 4 Piece CO₂ Footprint (GWP) 3,2851 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 4 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet DSSL2 105 / 7410583 , 0.20MB , pdfEU declaration of conformity DSSL2 105 / 7410583 , 0.10MB , pdfUK Declaration of Conformity DSSL2 105 / 7410583 , 0.14MB , pdfREACH Declaration of conformity DSSL2 105 / 7410583 , 0.10MB , pdfRoHS Declaration of conformity DSSL2 105 / 7410583 , 0.13MB , pdfLabel approval Label approval Heavy-duty cassettes , 0.12MB , pdfMounting instructions Heavy-load system , 6.72MB , pdfMounting instructions Heavy-duty cassettes, supports , 3.28MB , pdfNo invitation to tender text is available for this product.
