DSSL heavy-duty support
Item no. 7410587 | EAN 4012196540945
- Product description
-

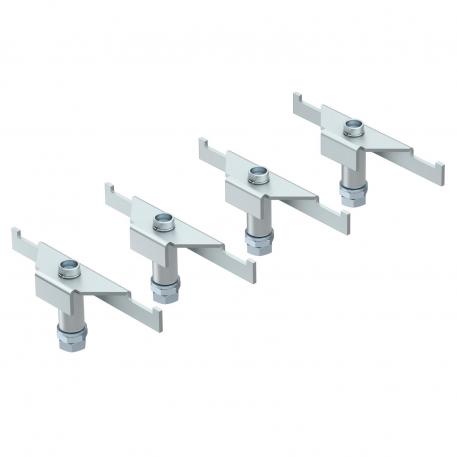

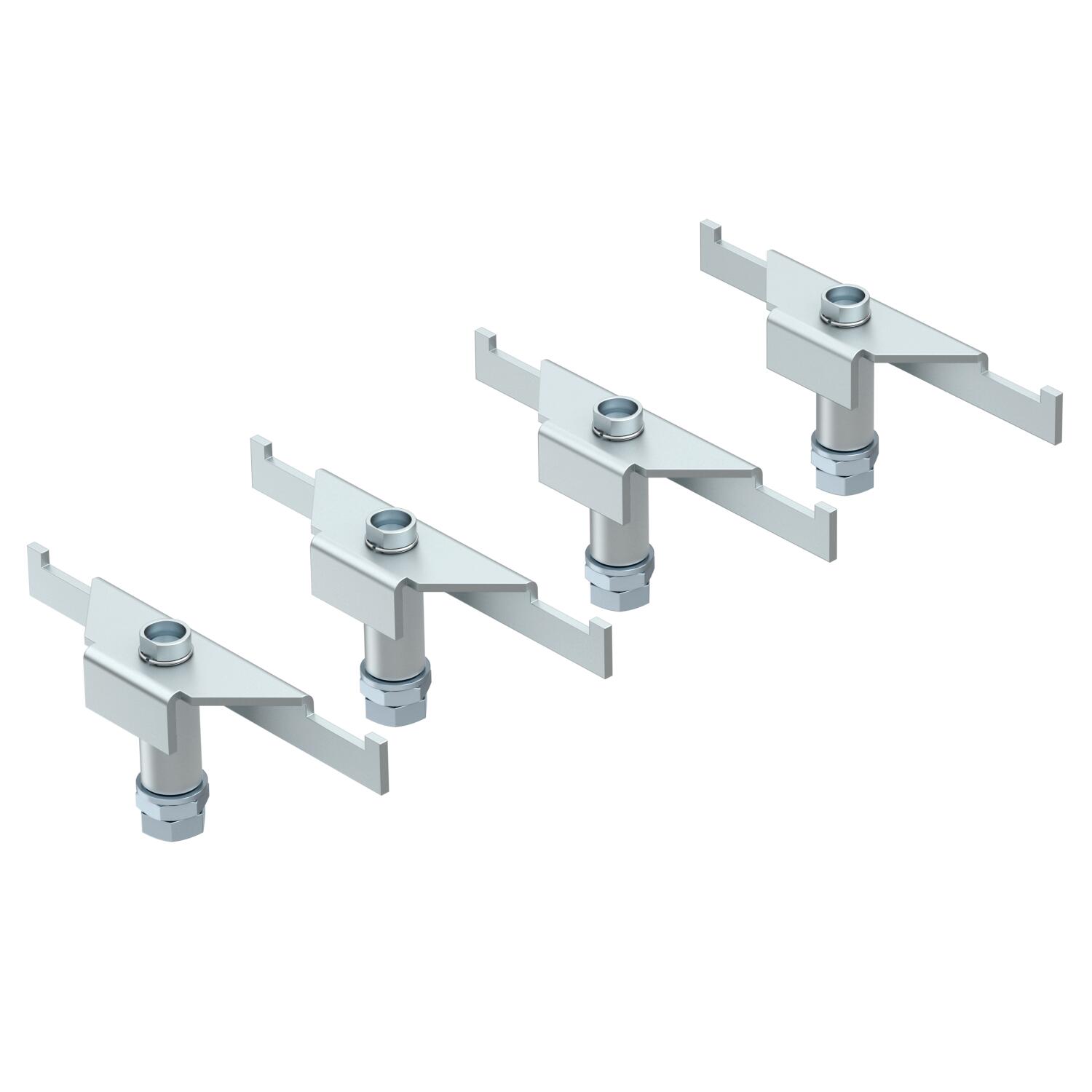

Product descriptionThe heavy-duty supports reinforce the corner areas of the type UZD-3 underfloor box for increased load requirements.
-
- Technical data
-
Technical data
Dimension 165/200 Heavy-duty version yes Material Steel Screed height, max. 200 mm Screed height, min. 165 mm Surface Strip galvanised Dimensions

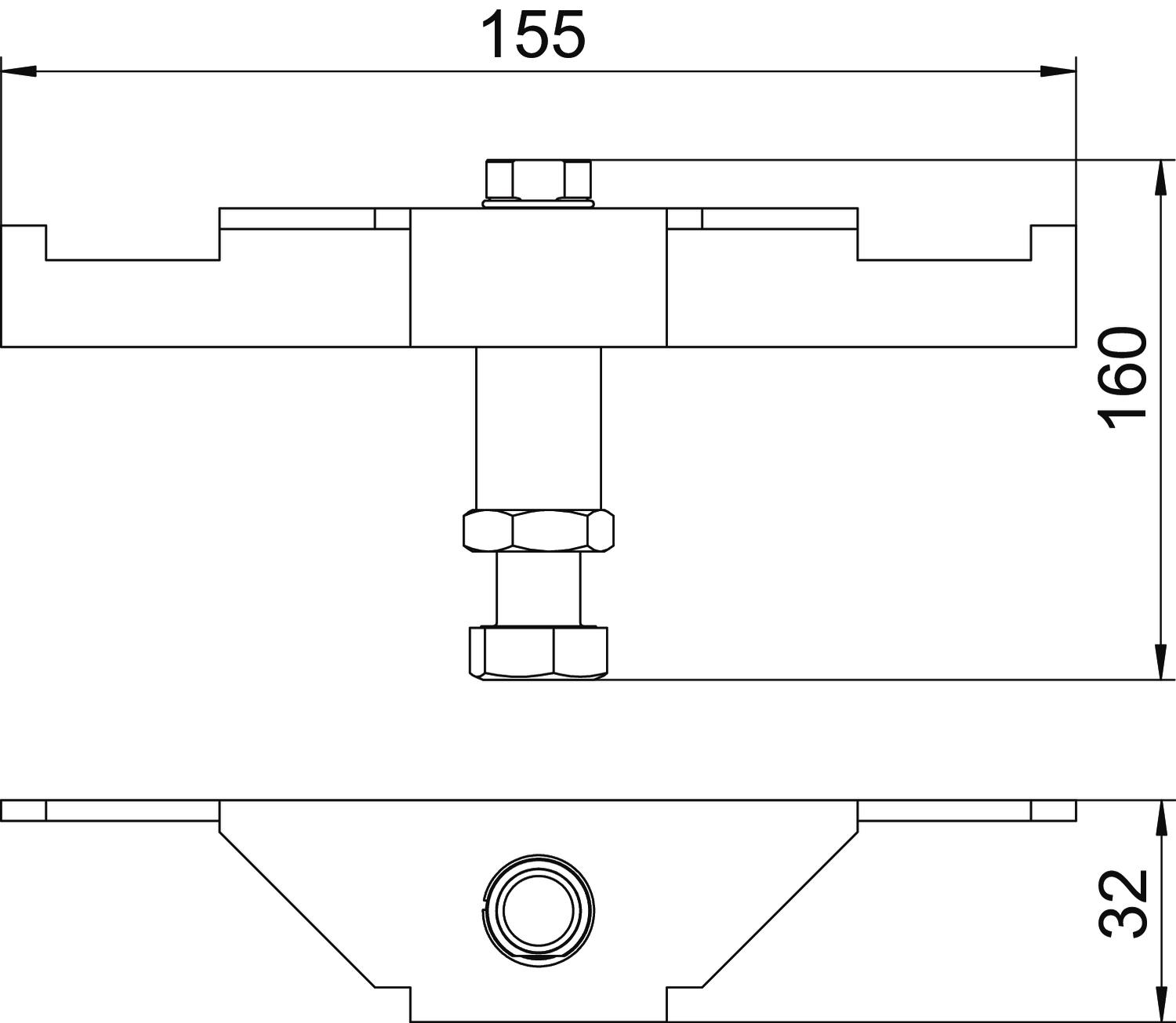

Height 160 mm Length 155 mm Width 32 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 3,6856 kg CO2e / 4 Piece CO₂ Footprint (GWP) 3,6856 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 4 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet DSSL2 165 / 7410587 , 0.20MB , pdfEU declaration of conformity DSSL2 165 / 7410587 , 0.10MB , pdfUK Declaration of Conformity DSSL2 165 / 7410587 , 0.14MB , pdfREACH Declaration of conformity DSSL2 165 / 7410587 , 0.12MB , pdfRoHS Declaration of conformity DSSL2 165 / 7410587 , 0.12MB , pdfLabel approval Label approval Heavy-duty cassettes , 0.12MB , pdfMounting instructions Heavy-load system , 6.72MB , pdfMounting instructions Heavy-duty cassettes, supports , 3.28MB , pdfNo invitation to tender text is available for this product.
