DSSL heavy-duty support 32 | 135 | 170
morepic-1 morepic-2

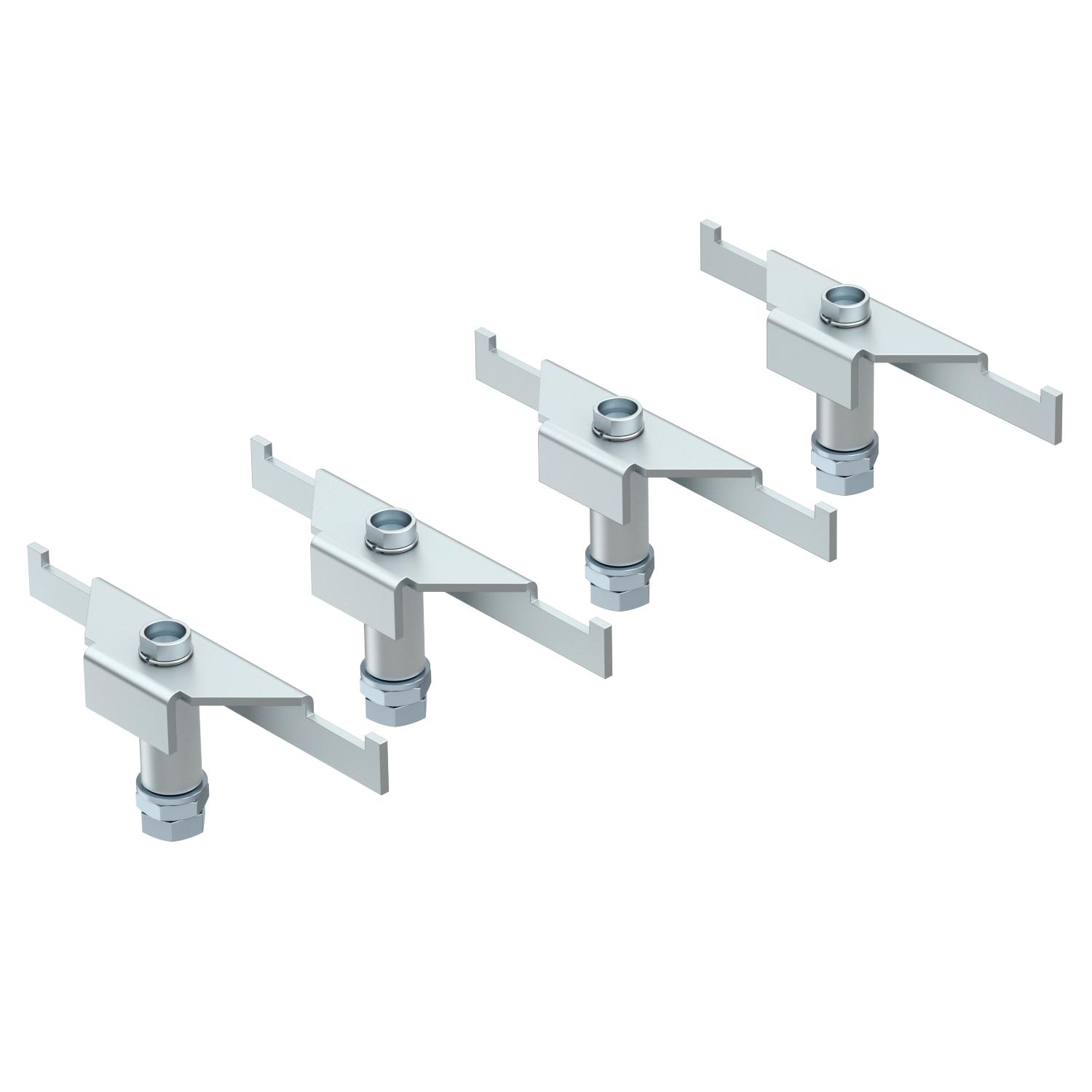

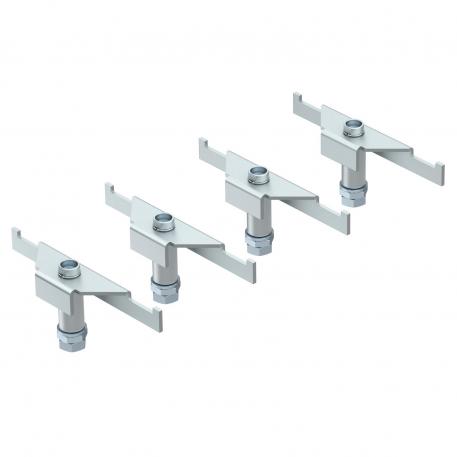

DSSL heavy-duty support

Item no. 7410585 | EAN 4012196540938

32 mm
Product description
Product description
The heavy-duty supports reinforce the corner areas of the type UZD-3 underfloor box for increased load requirements.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Dimension 135/170
Heavy-duty version yes
Material Steel
Screed height, max. 170 mm
Screed height, min. 135 mm
Surface Strip galvanised

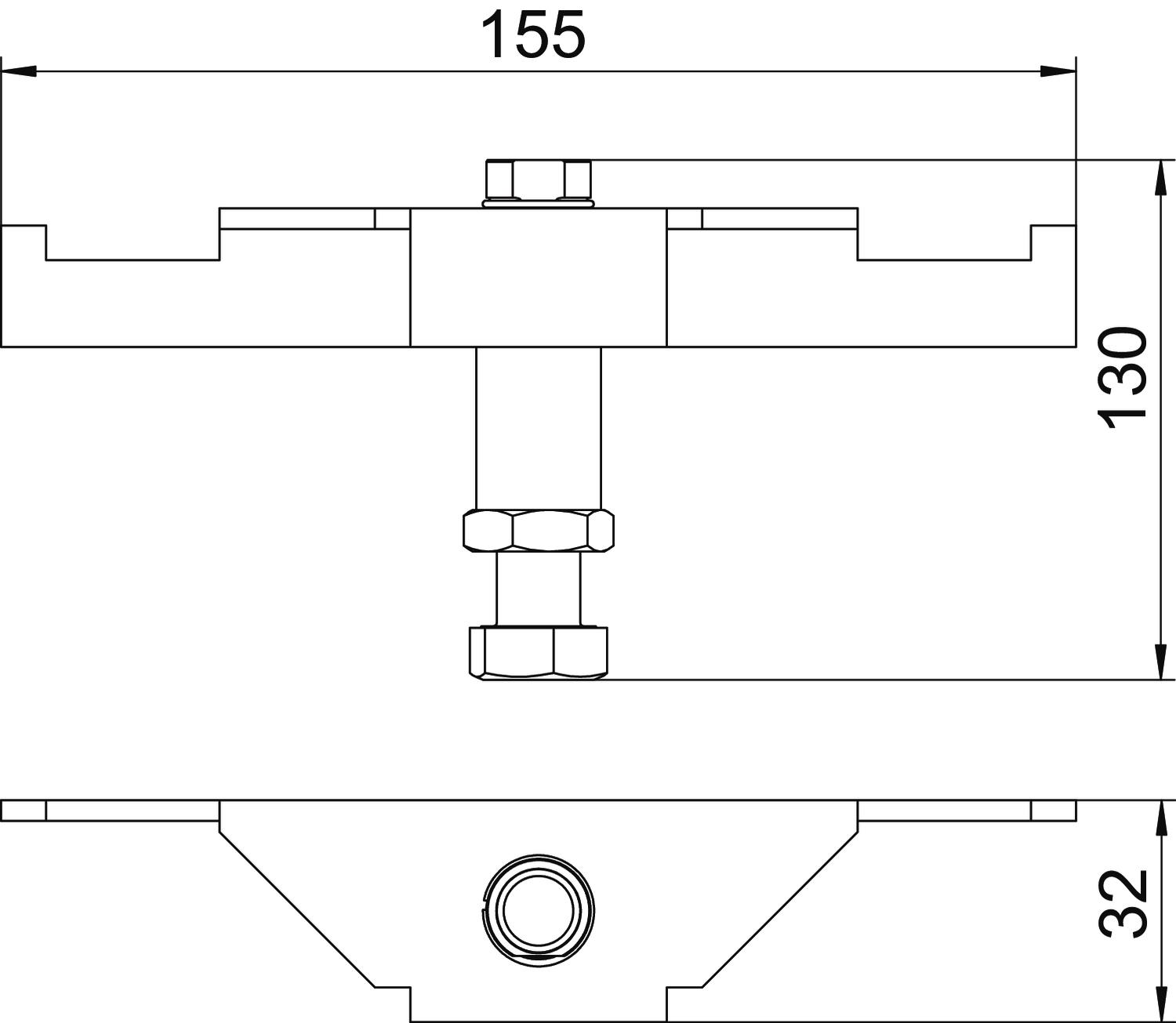

Dimensions

Height 130 mm
Length 155 mm
Width 32 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 3,2714 kg CO2e / 4 Piece
CO₂ Footprint (GWP) 3,2714 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 4
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Width Screed height, min. Screed height, max. Item no. Quantity SSU
DSSL2 75 32 mm 75 mm 110 mm 7410581
1 PU
DSSL2 105 32 mm 105 mm 140 mm 7410583
1 PU
DSSL2 135 32 mm 135 mm 170 mm 7410585
1 PU
DSSL2 165 32 mm 165 mm 200 mm 7410587
1 PU
DSSL2 195 32 mm 195 mm 230 mm 7410589
1 PU
Downloads

Download

Download

EU declaration of conformity DSSL2 135 / 7410585 , 0.10MB , pdf
Download
UK Declaration of Conformity DSSL2 135 / 7410585 , 0.14MB , pdf
Download
REACH Declaration of conformity DSSL2 135 / 7410585 , 0.12MB , pdf
Download
RoHS Declaration of conformity DSSL2 135 / 7410585 , 0.12MB , pdf
Download

Download

Download
Download

No invitation to tender text is available for this product.
