Exit plate FT
Item no. 6220142 | EAN 4012195807124
- Product description
-

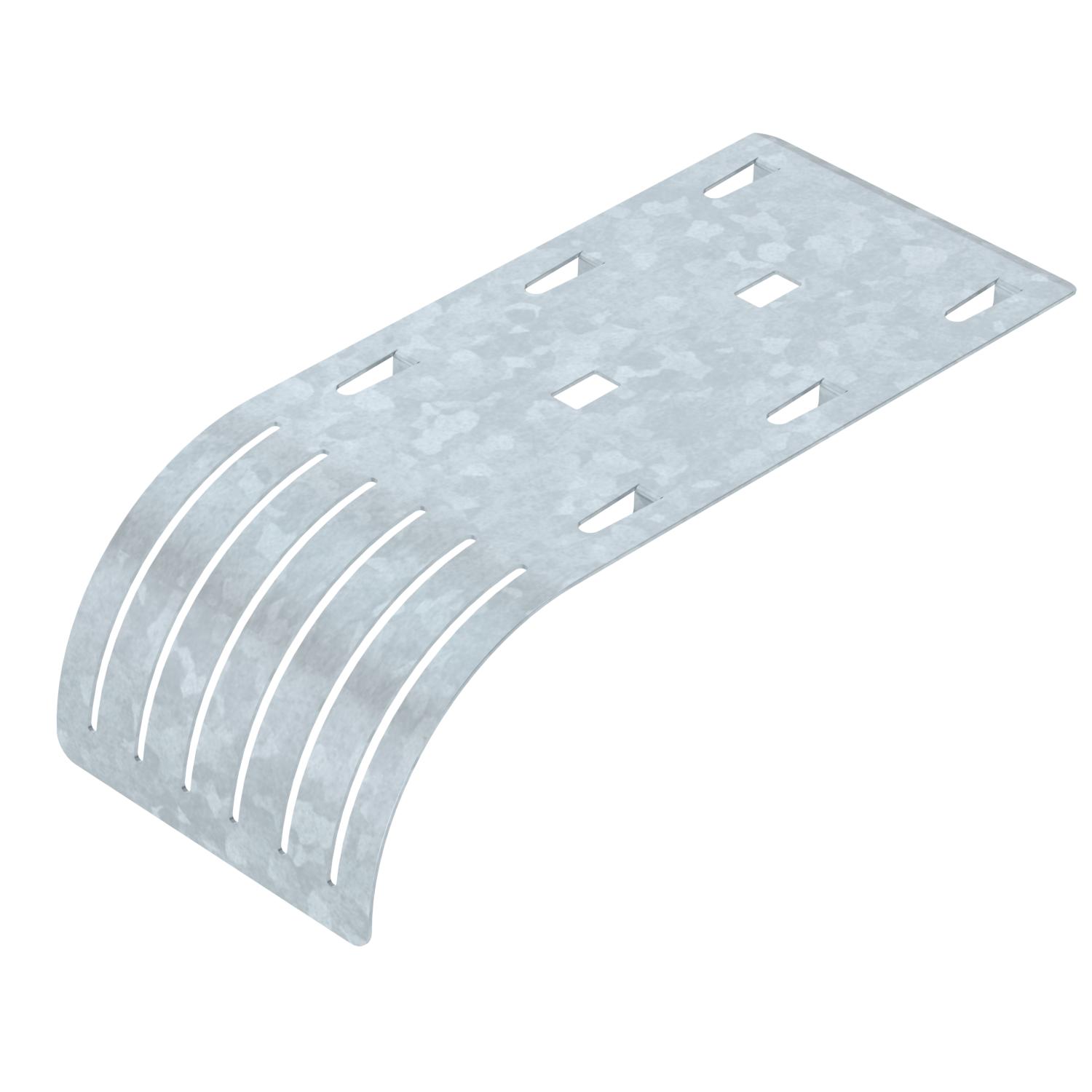

Product descriptionDrop-out plate for mesh cable trays.
The exit plate allows compliance with specific bend radii, thus preventing possible cable breaks. Can be mounted in a lengthwise direction and at the side, can also be arranged next to each other for greater widths.
-
- Technical data
-
Technical data

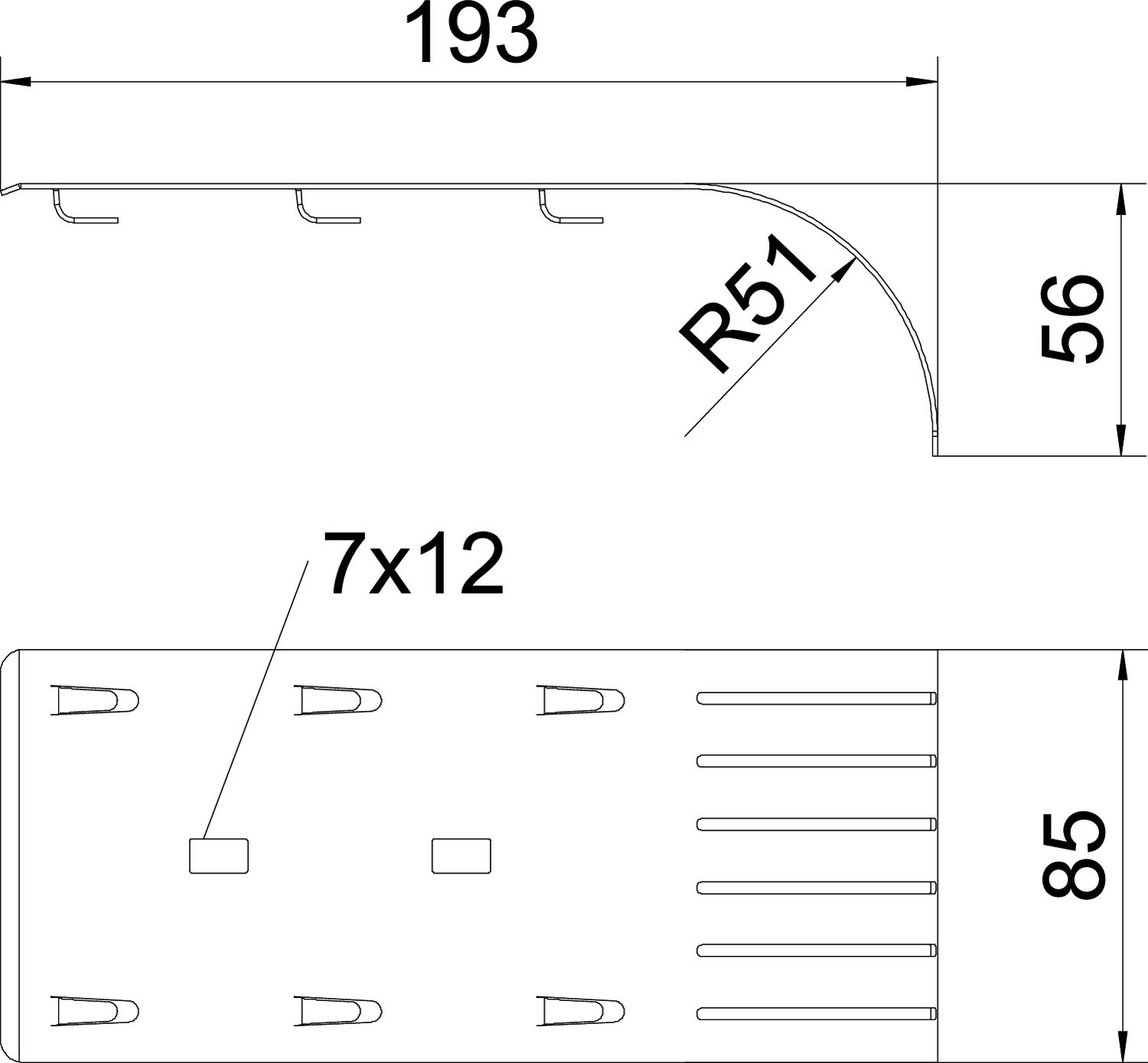

Colour zinc Dimension 192x85x51 Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Wide-span version no Dimensions
Length 193 mm Width 3,47 in Width 85 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,4438 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,4438 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet KAB GR FT / 6220142 , 0.17MB , pdfEU declaration of conformity KAB GR FT / 6220142 , 0.10MB , pdfREACH Declaration of conformity KAB GR FT / 6220142 , 0.27MB , pdfRoHS Declaration of conformity KAB GR FT / 6220142 , 0.28MB , pdfSelection aid GR-Magic® , 0.27MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
