Fastening clip 822, heavy duty, FT
Item no. 1014218 | EAN 4012195014119
- Product description
-

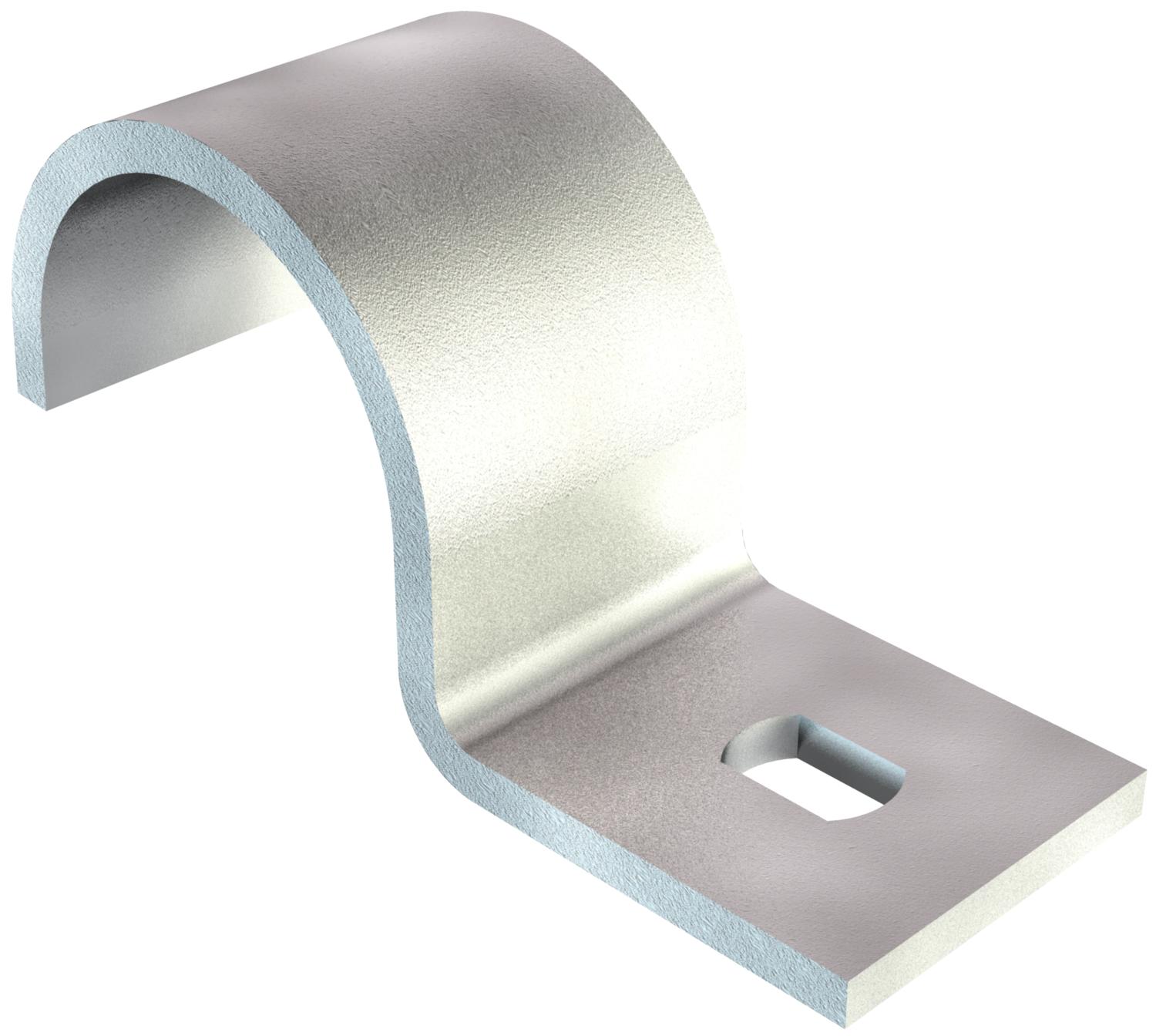

Product descriptionFastening clip, single-lobe, 28 mm
-
- Technical data
-
Technical data

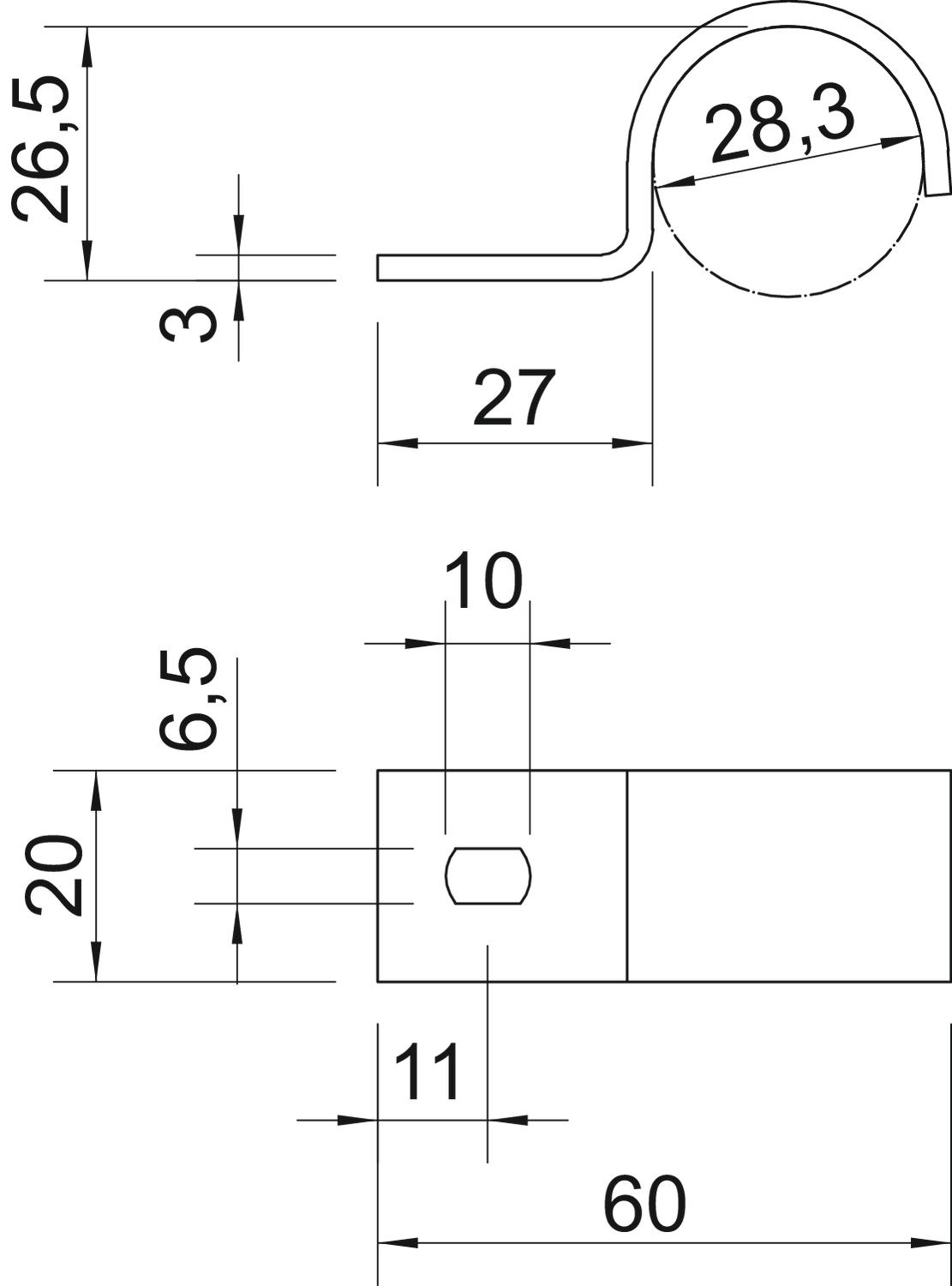

CO2 Footprint (GWP) Cradle-to-Gate 0,0889 kg CO₂e / 1 Piece Dimension 28mm Dimension A 11 mm Dimension b 20 mm Dimension D 28,3 mm Dimension H 26,5 mm Dimension L 27 mm Dimension L1 60 mm Dimension t 3 mm Distance to the wall no Fastening type Screw hole For diameter 28,3 Halogen-free yes Height 26,5 mm Hole size 6,5 x 10 mm Length 60 mm Material Steel Material thickness 2 mm Nominal diameter 28,3 mm Number of cables/pipes 1 Plastic-covered no Size PG21 Suitable in fire protection area no Surface Hot-dip galvanised UV-resistant yes Version for Single-lobe Width 20 mm - All types
-
All types
- Downloads
-
Data sheet 822 28.3 FT / 1014218 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 822 28.3 FT / 1014218 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 822 28.3 FT / 1014218 , 0.09MB , pdfREACH Declaration of conformity 822 28.3 FT / 1014218 , 0.12MB , pdfRoHS Declaration of conformity 822 28.3 FT / 1014218 , 0.13MB , pdf
