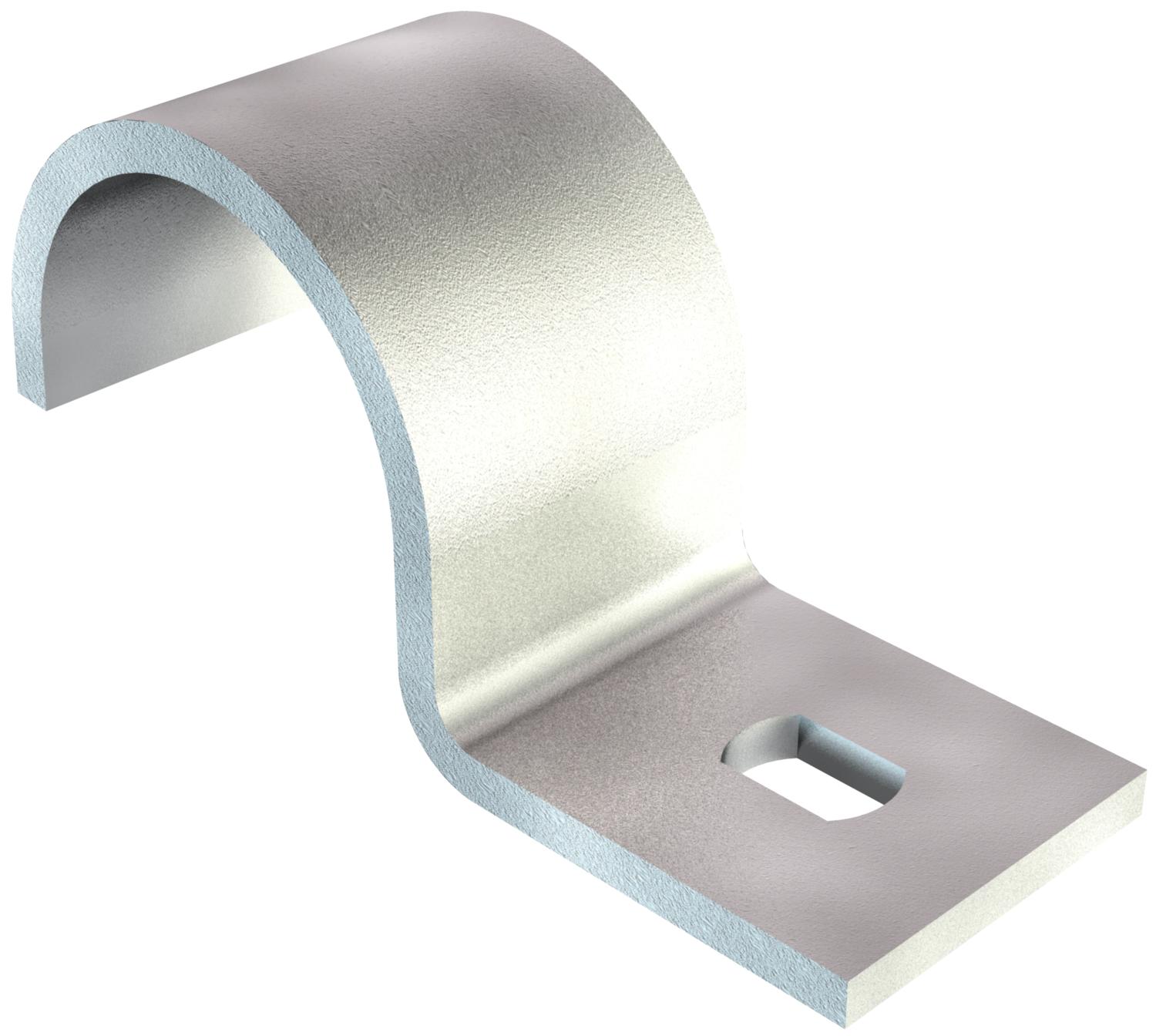

Fastening clip 822, heavy duty, FT
Item no. 1014366 | EAN 4012195014232
- Product description
-
Product descriptionFastening clip, single-lobe, 47 mm
-
- Technical data
-
Technical data

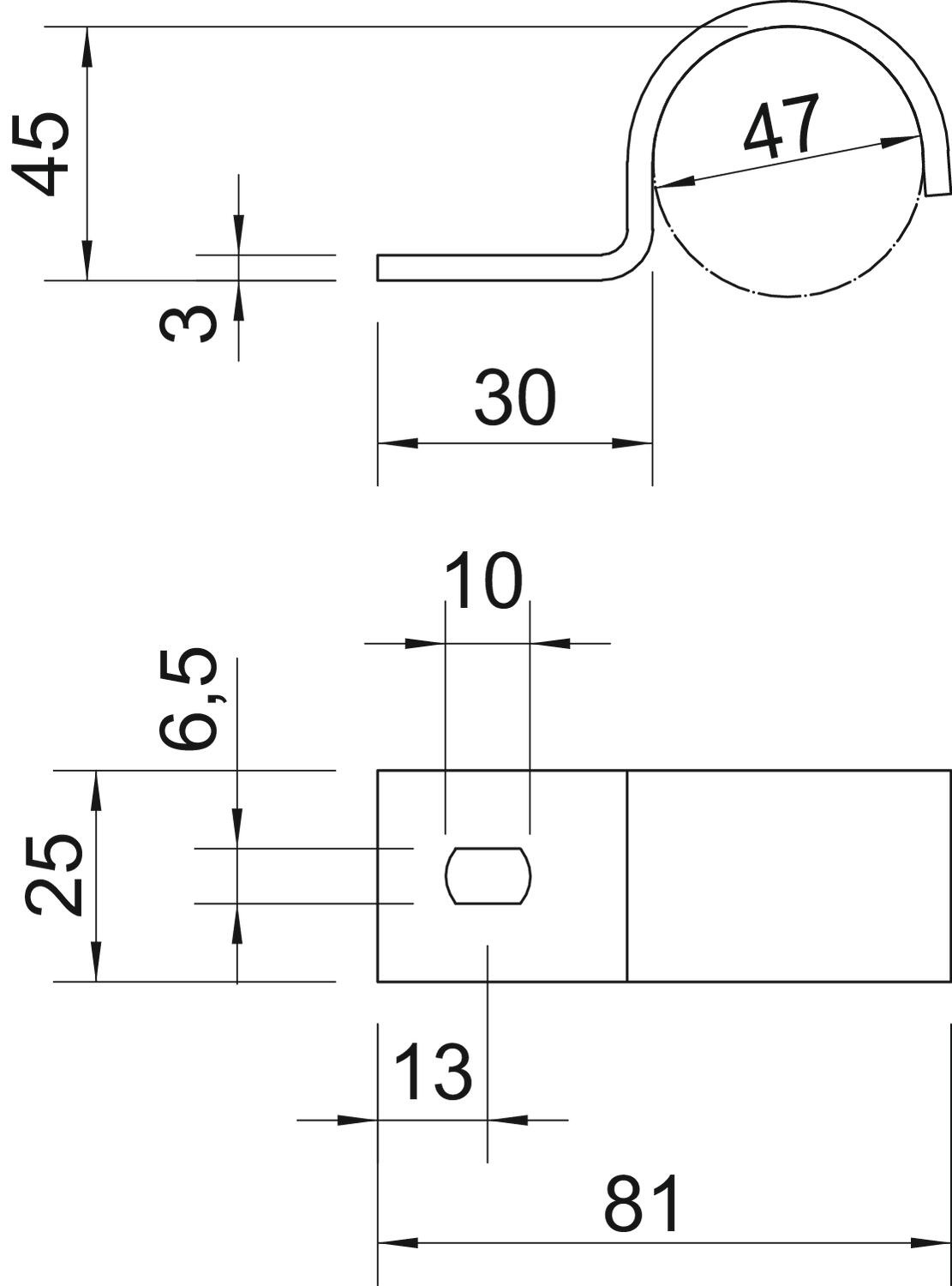

CO2 Footprint (GWP) Cradle-to-Gate 0,1614 kg CO₂e / 1 Piece Dimension 47mm Dimension A 13 mm Dimension b 25 mm Dimension D 47 mm Dimension H 45 mm Dimension L 30 mm Dimension L1 81 mm Dimension t 3 mm Distance to the wall no Fastening type Screw hole For diameter 47 Halogen-free yes Height 45 mm Hole size 6,5 x 10 mm Length 81 mm Material Steel Material thickness 3 mm Nominal diameter 47 mm Number of cables/pipes 1 Plastic-covered no Size PG36 Suitable in fire protection area no Surface Hot-dip galvanised UV-resistant yes Version for Single-lobe Width 25 mm - All types
-
All types
- Downloads
-
Data sheet 822 47 FT / 1014366 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 822 47 FT / 1014366 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 822 47 FT / 1014366 , 0.09MB , pdfREACH Declaration of conformity 822 47 FT / 1014366 , 0.12MB , pdfRoHS Declaration of conformity 822 47 FT / 1014366 , 0.13MB , pdf
