Note: This article is discontinued.
You can find the current article here: 7205742 / FireBox T160 with plug-in seals, single terminals
FireBox T100ED with plug-in seal and internal fastening
Item no. 7205533 | EAN 4012195993087
- Product description
-

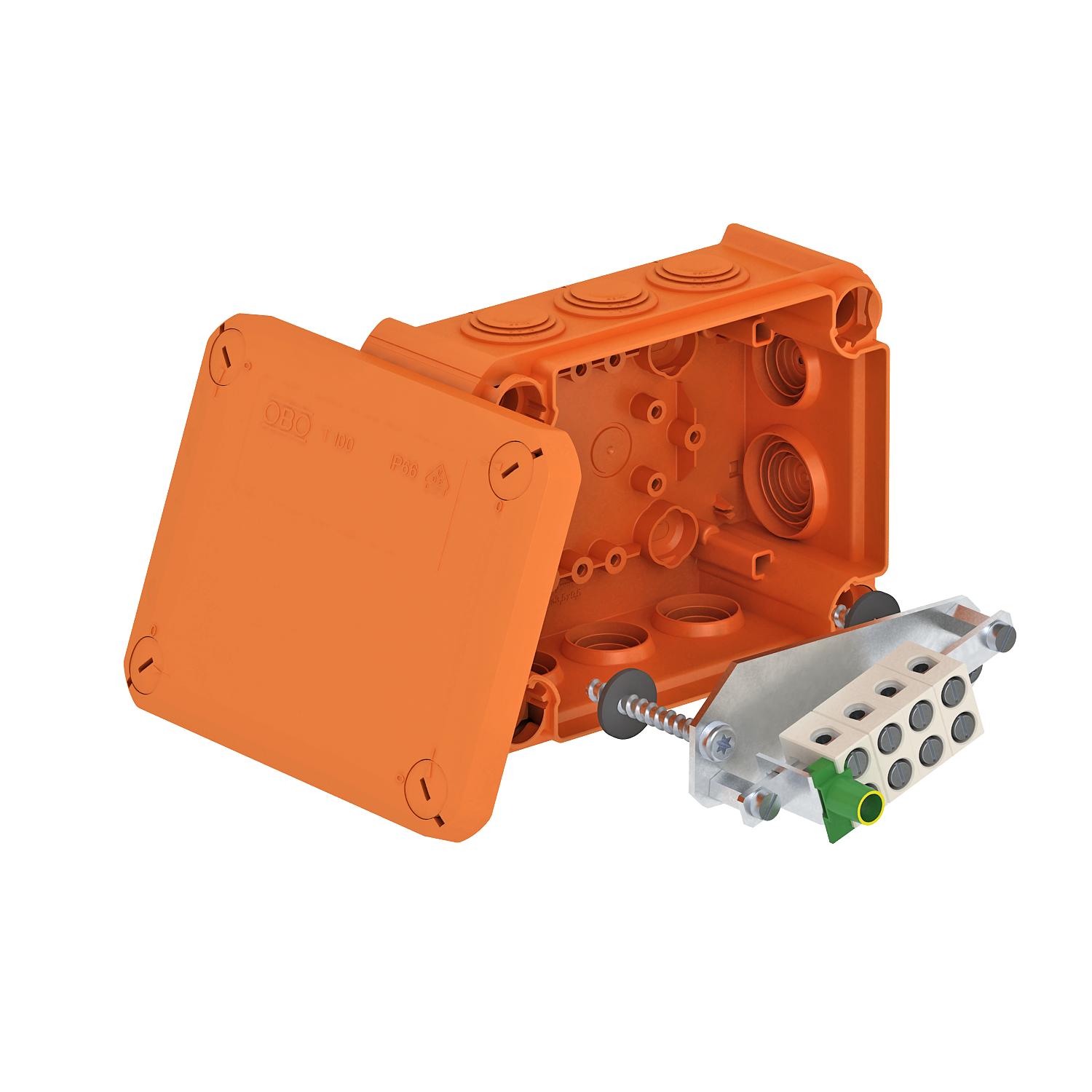

Product descriptionHalogen-free junction box with pre-mounted, soft plug-in seals, approved for the maintenance of electrical functionality according to DIN 4102 Part 12.
Maintenance of electrical functionality classes E30 to E90.
Colour: Pastel orange.
Including pre-mounted connection unit made of high temperature-resistant special ceramic and labelled protective conductor terminal. Supplied with 2 MMS 6x50 fire protection screw ties for anchorless fastening.
Nominal cross-section of power cable: Max 10 mm². Maximum of two 4 mm² rigid copper cables per terminal.
High protection rating IP66, impact resistance class IK08.
Details on the cable types and manufacturers can be found in the general construction test certificate of the material testing institute NRW, Erwitte.
-
- Technical data
-

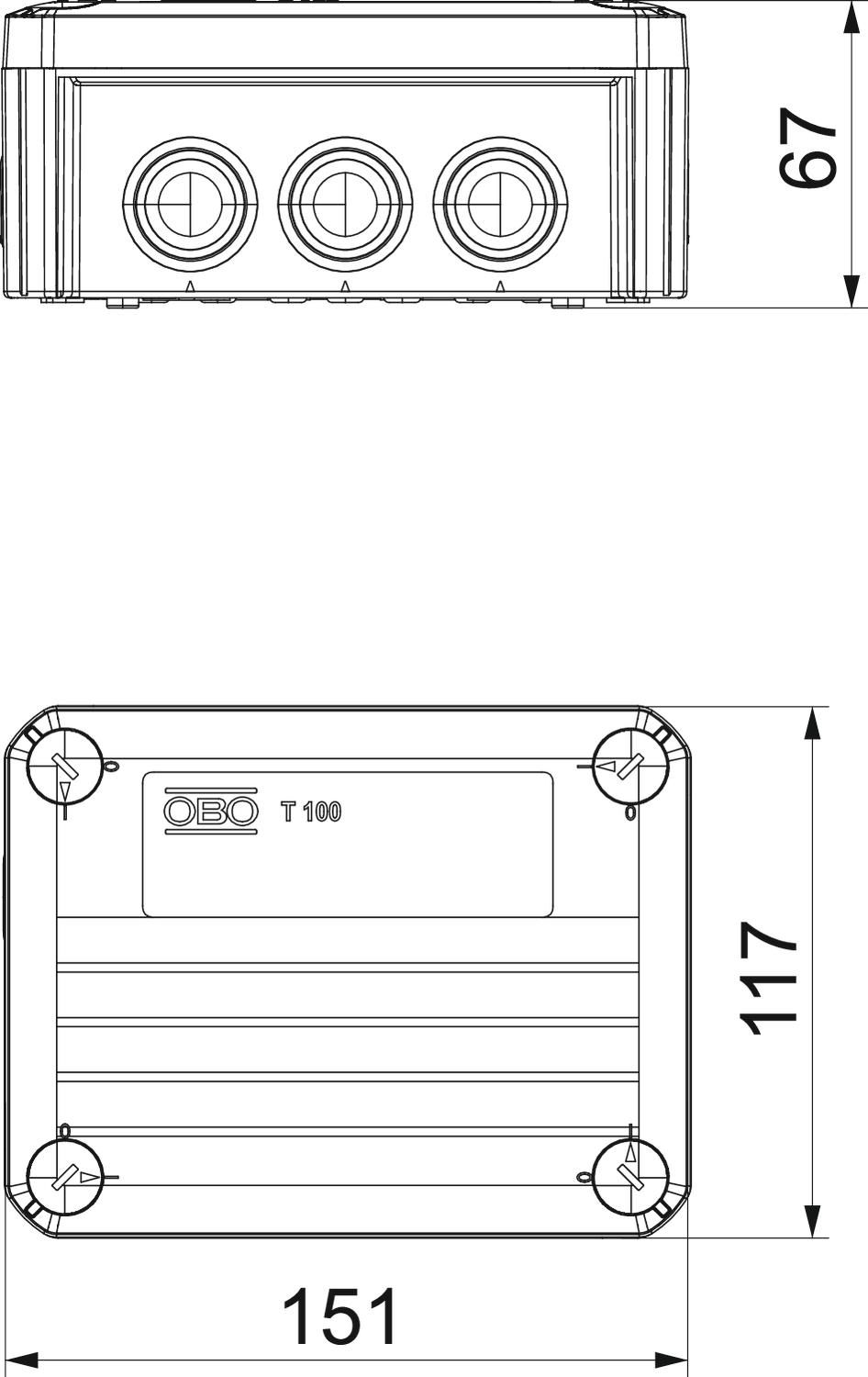

Dimensions
Clear internal dimensions 136x102x57 mm CO2 Footprint (GWP) Cradle-to-Gate 1,5309 kg CO₂e / 1 Piece Colour Pastel orange; RAL 2003 Cover Not transparent Cover fastening Screwed Dimension 150x116x67 Entries 8x M25
2x M32
Entry from rear no Equipment Terminal Expandable no Explosion-tested version no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 67 mm Impact-resistant no Length 150 mm Maintain electrical functions E 90 Material Polypropylene Measured insulation voltage Vi 690 V No. of entries 10 Nominal cross-section, min. 10 mm² Nominal voltage 660 V Number of terminals 5 Protection rating IP66 Sealable no Shape Rectangular Transparent lid no Type of housing penetration Cuttable stepped membrane Weatherproof no Width 116 mm with lid yes With screening no - All types
- Downloads
-
Data sheet T 100 ED 10-5 / 7205533 , 0.27MB , pdfBrochure FireBox , 2.61MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity T 100 ED 10-5 / 7205533 , 0.10MB , pdfREACH Declaration of conformity T 100 ED 10-5 / 7205533 , 0.12MB , pdfRoHS Declaration of conformity T 100 ED 10-5 / 7205533 , 0.12MB , pdf
