Note: This article is discontinued.

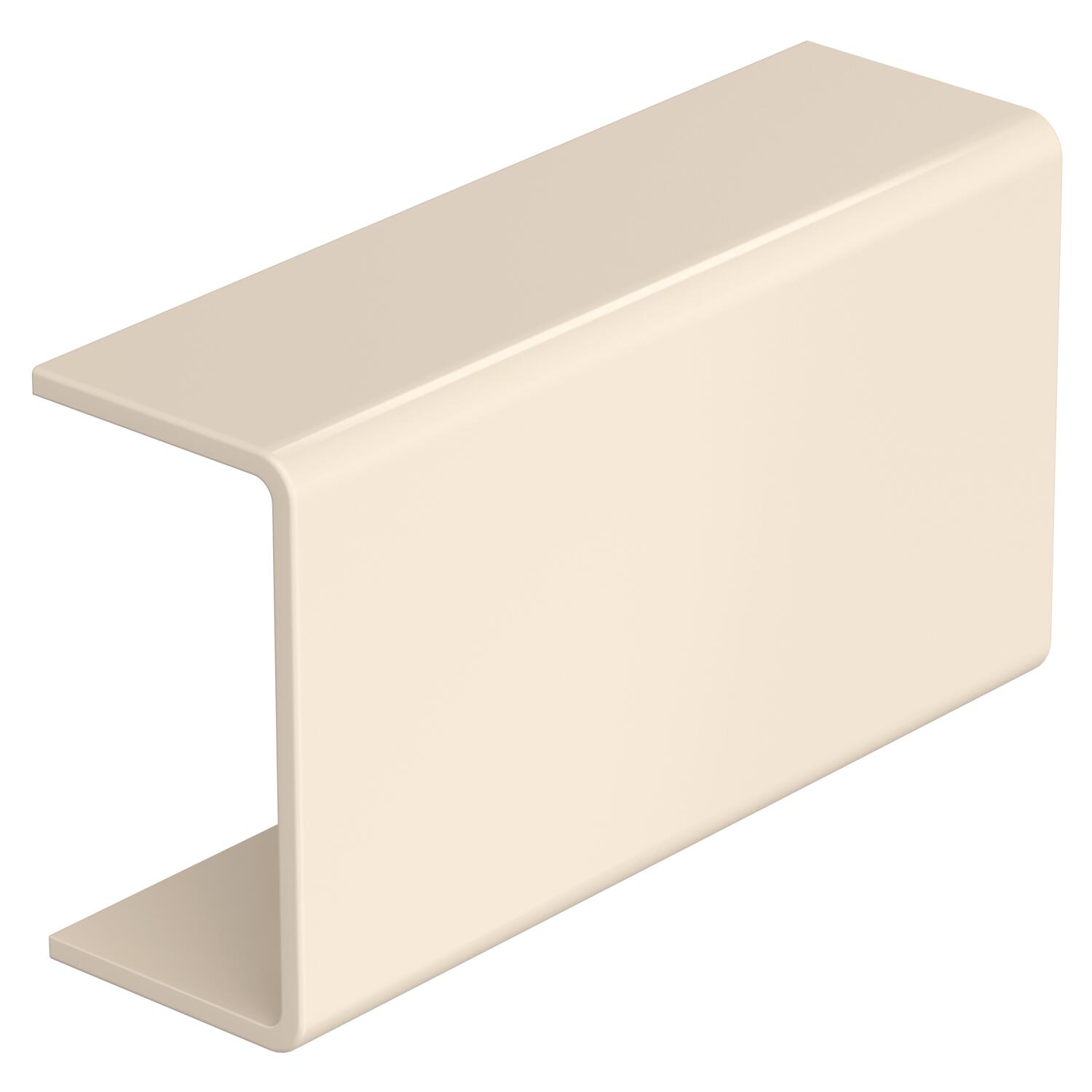

Joint cover, for trunking, type WDK 13025
Item no. 6193496 | EAN 4012195959076
- Product description
-
Product descriptionJoint cover for perfect connection of the WDK trunking segments, type 13025. Incl. coupling for the raised trunking floor.
-
- Technical data
-
Technical data
Colour Oyster white; RAL 1013 Dimension 15x27x50mm Fastening type Lockable Halogen-free no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Product series WDK Protection rating IP30 Protection rating IK code IK04 ROHS-conformant yes Shape Symmetrical Version for Trunking cut cover Dimensions

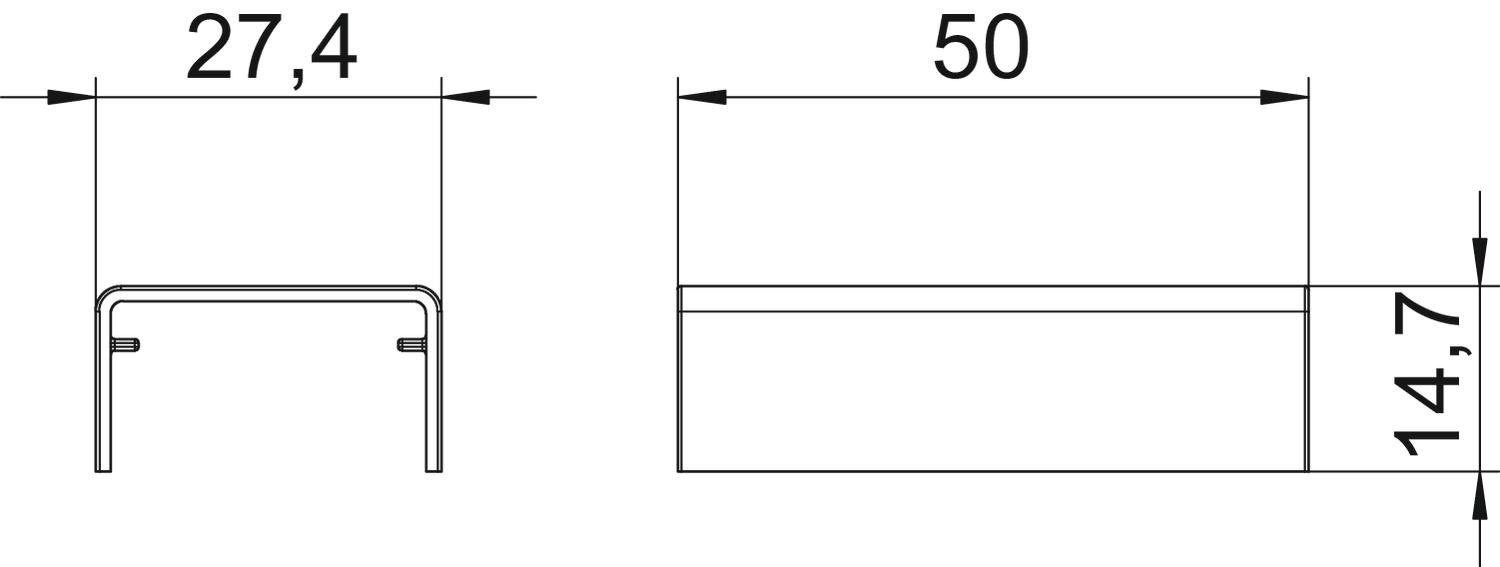

Height 14,7 mm Length 50 mm Width 27,4 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0552 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0552 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WDK HS13025PW / 6193496 , 0.16MB , pdfSafety data sheet WDK HS13025PW / 6193496 , 0.02MB , pdfCatalogue cable routing systems , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HS13025PW / 6193496 , 0.10MB , pdfUK Declaration of Conformity WDK HS13025PW / 6193496 , 0.09MB , pdfREACH Declaration of conformity WDK HS13025PW / 6193496 , 0.12MB , pdfRoHS Declaration of conformity WDK HS13025PW / 6193496 , 0.13MB , pdfLabel approval VDE symbol approval, WDK , 0.64MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
