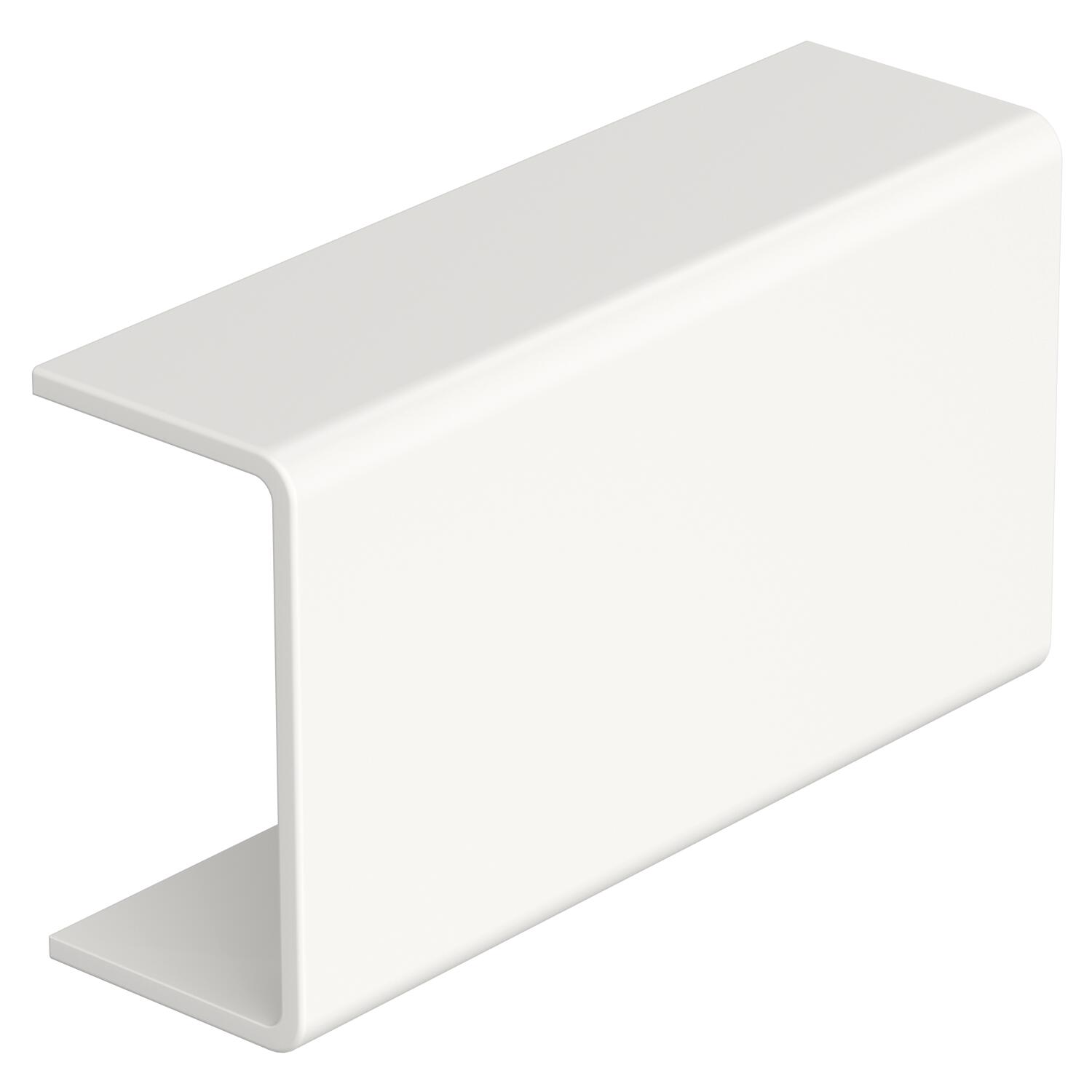

Joint cover, for trunking, type WDK 13025
Item no. 6193498 | EAN 4012195959069
- Product description
-
Product descriptionJoint cover for perfect connection of the WDK trunking segments, type 13025. Incl. coupling for the raised trunking floor.
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Dimension 15x27x50mm Fastening type Lockable Halogen-free no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Shape Symmetrical Version for Trunking cut cover Dimensions

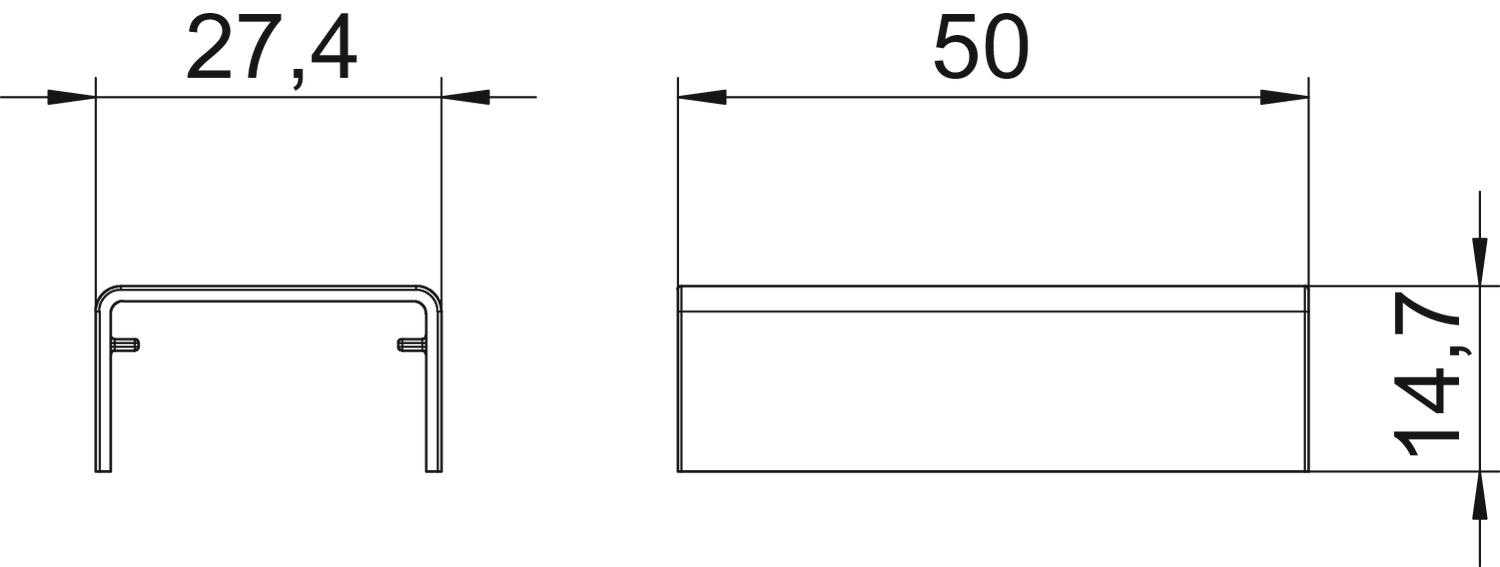

Height 14,7 mm Length 50 mm Width 27,4 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0701 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0701 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WDK HS13025RW / 6193498 , 0.18MB , pdfSafety data sheet WDK HS13025RW / 6193498 , 0.02MB , pdfCatalogue cable routing systems , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HS13025RW / 6193498 , 0.11MB , pdfUK Declaration of Conformity WDK HS13025RW / 6193498 , 0.09MB , pdfREACH Declaration of conformity WDK HS13025RW / 6193498 , 0.12MB , pdfRoHS Declaration of conformity WDK HS13025RW / 6193498 , 0.13MB , pdfLabel approval VDE symbol approval, WDK , 0.64MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
