Note: This article is discontinued.

Perforated steel strap, ridged 25 | 26 x 1,2 | 9 |

morepic-1

morepic-2

morepic-3

Perforated steel strap, ridged

Item no. 1475266 | EAN 4012195140054

Item no. / Types

Dimension A

Dimension

Hole diameter

Product description

Product description

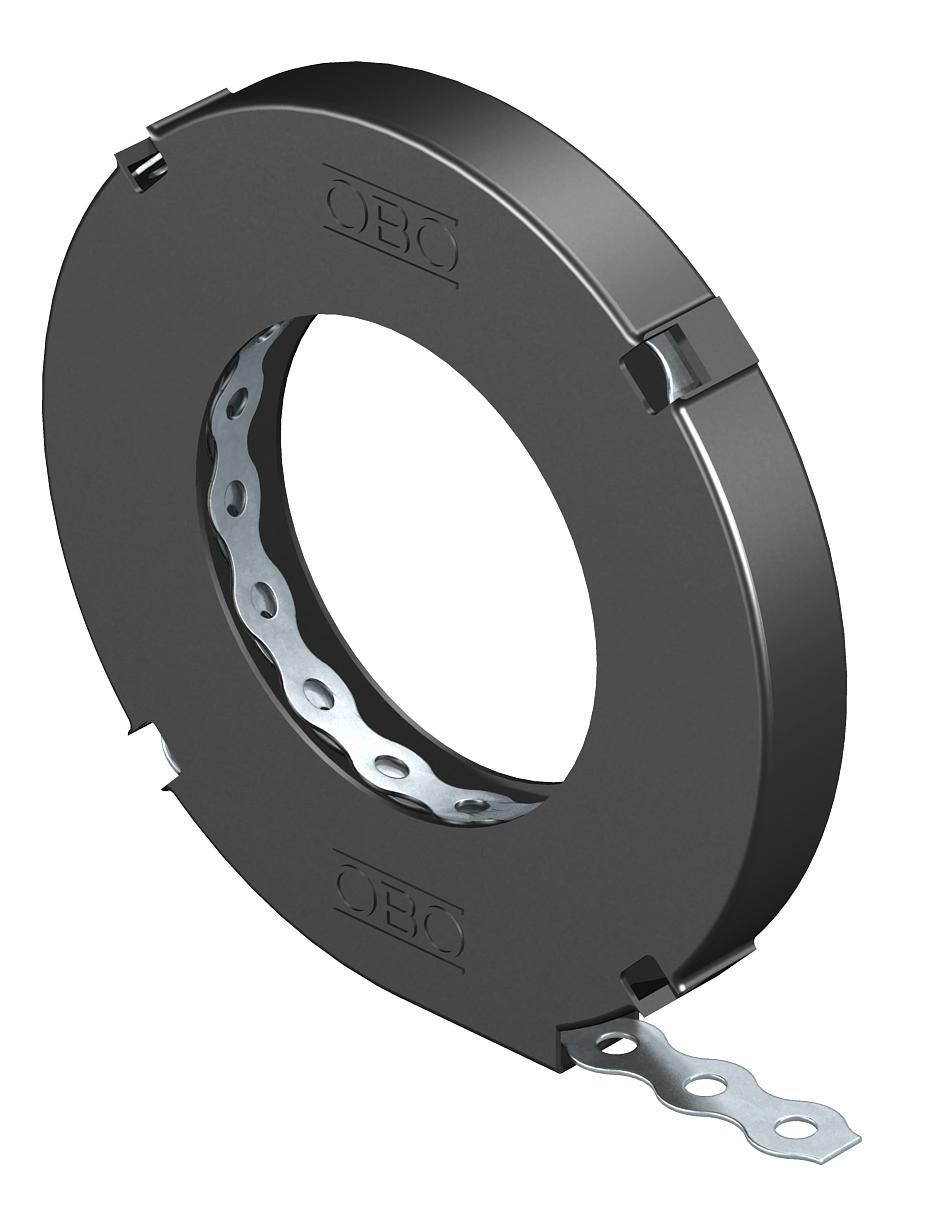

Perforated mounting strap in wave form, for the mounting of pipes on walls and ceiling, for example. In uncoiling box.

Technical data

Technical data

Dimension	26 x 1,2
Dimension	26x1,2mm
Dimension A	25 mm
Dimension b	26 mm
Dimension b1	17,2 mm
Dimension d	9 mm
Hole diameter	9 mm
In the holder	yes

Material	Steel
per rolls	10
Perforation	Round
Size	III
Surface	Strip galvanized
Type of band	Ribbed
Version for	Perforated
With perforation	yes

All types

All types

Types	Dimension A	Dimension	Hole diameter	Item no.	Quantity	SSU
5062 I12 FS	14 mm	12 x 1	5 mm	1475126	piece	1 piece
5062 III26 FS	25 mm	26 x 1,2	9 mm	1475266	piece	1 piece

Downloads

Data sheet 5062 III26 FS / 1475266 , 0.16MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity 5062 III26 FS / 1475266 , 0.71MB , pdf

Download

REACH Declaration of conformity 5062 III26 FS / 1475266 , 0.12MB , pdf

Download

RoHS Declaration of conformity 5062 III26 FS / 1475266 , 0.12MB , pdf

Download

Product graphic 5062 III26 FS / 1475266, 54.26 kB, jpg

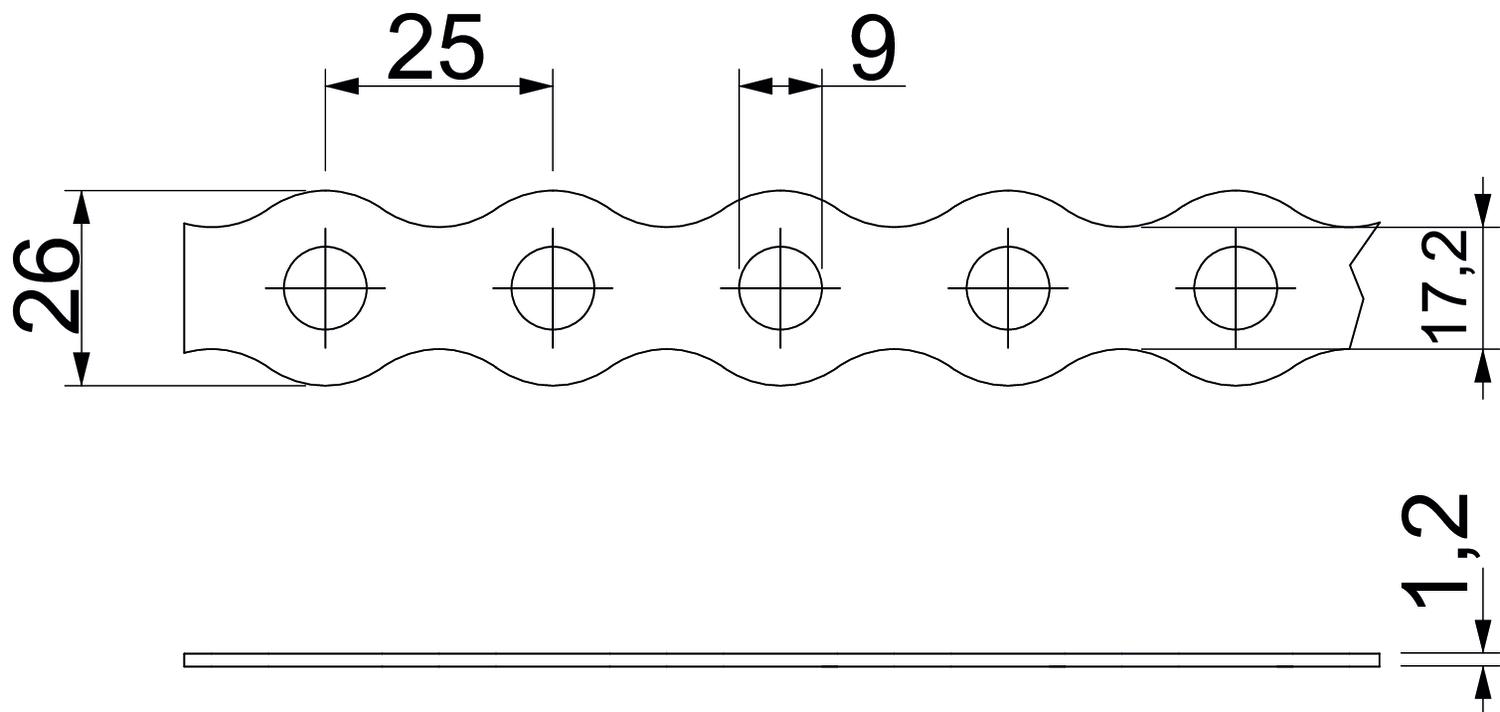

Scale drawing 5062 III26 FS / 1475266, 44.32 kB, jpg

5062 III26 FS / 1475266
