Note: This article is discontinued.

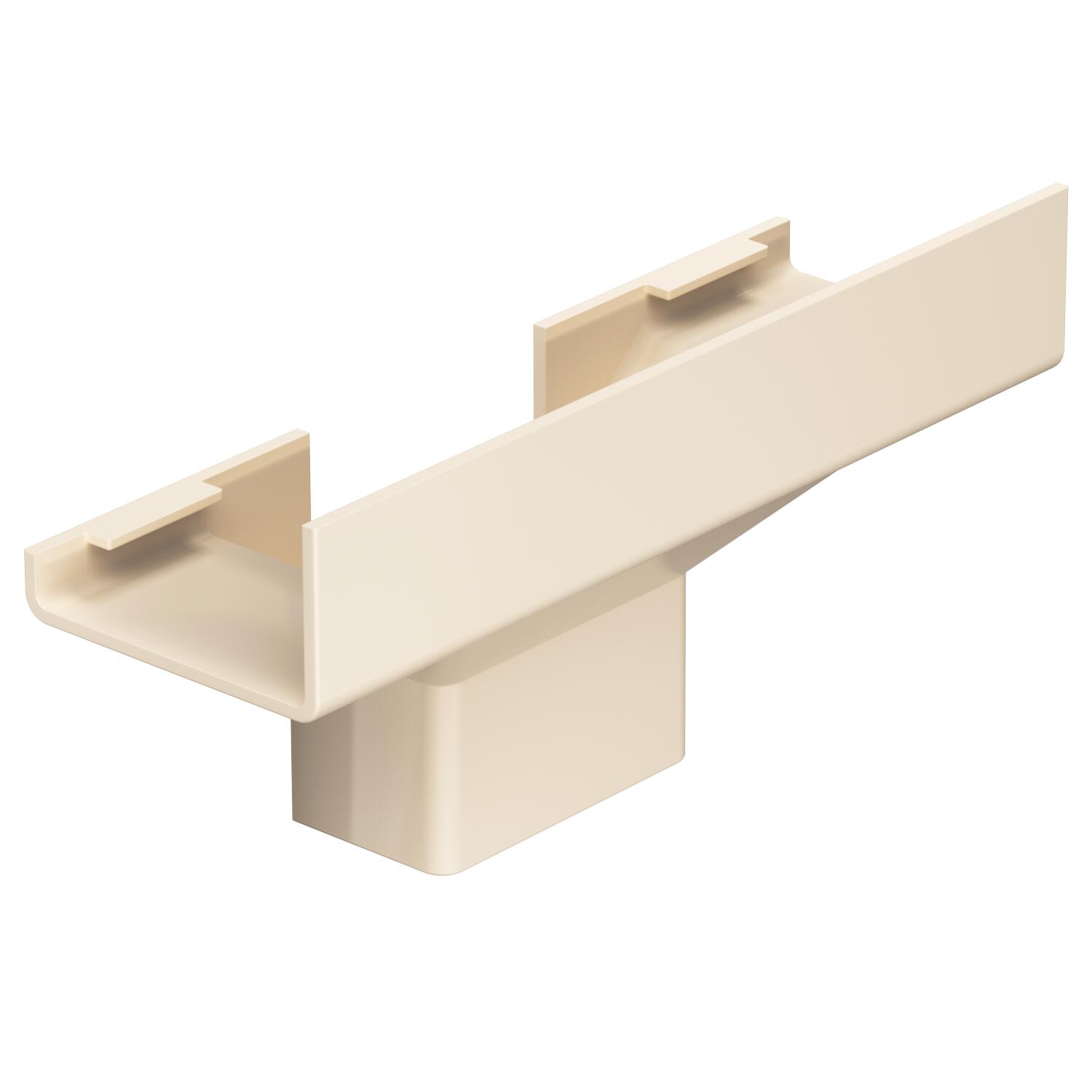

T piece cover, for trunking type WDK 13025
Item no. 6192448 | EAN 4012195959137
- Product description
-
Product descriptionT piece cover for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data

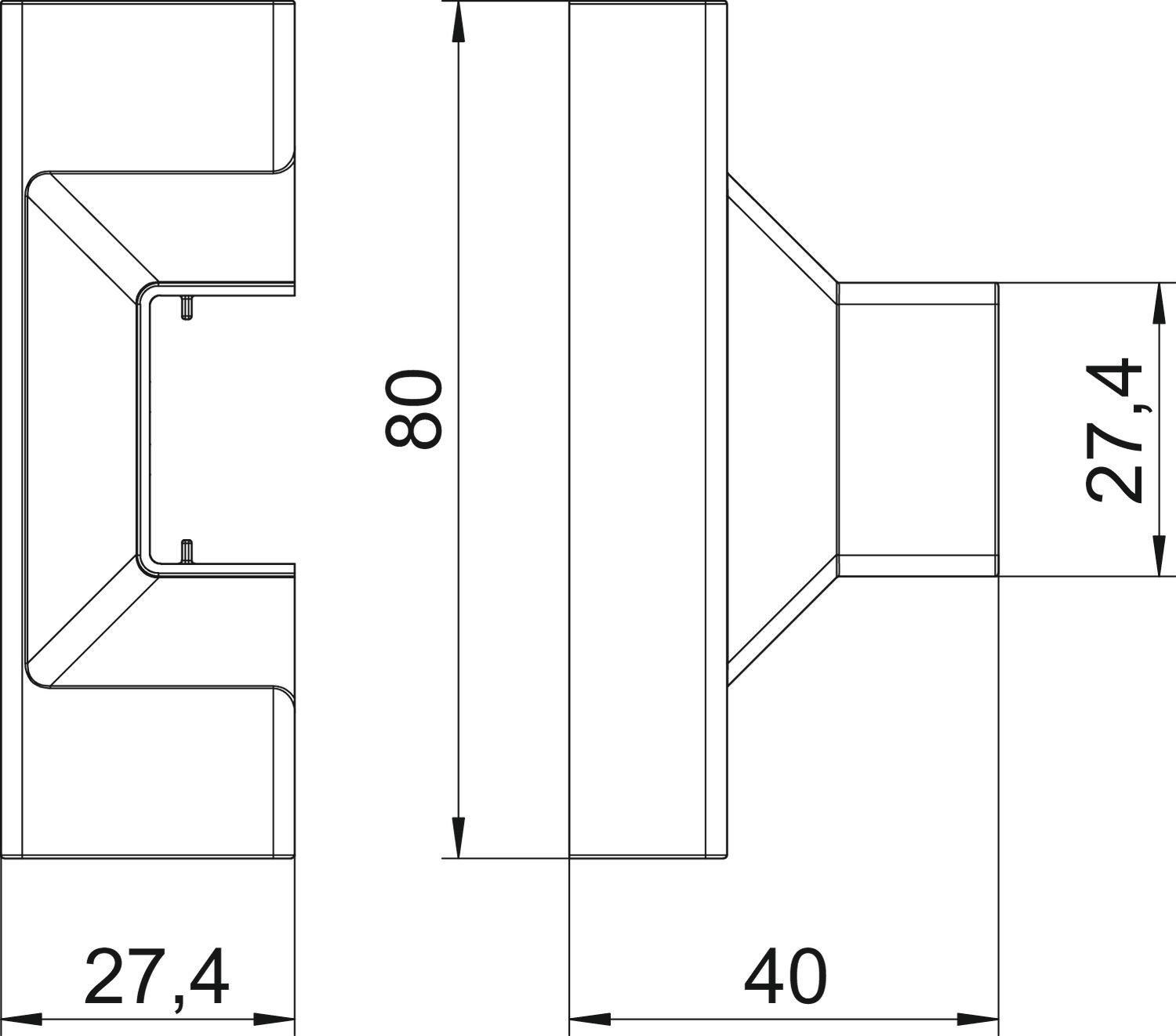

Antibacterial treatment no Colour Oyster white; RAL 1013 Dimension 15x80x40mm Fastening type Lockable Halogen-free no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Product series WDK Protection rating IP30 Protection rating IK code IK04 Protective film no ROHS-conformant yes Version for Hood fitting Dimensions
Height 13 mm Length 80 mm Width 25 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0786 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0786 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WDK HTCW13025PW / 6192448 , 0.17MB , pdfSafety data sheet WDK HTCW13025PW / 6192448 , 0.02MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HTCW13025PW / 6192448 , 0.11MB , pdfUK Declaration of Conformity WDK HTCW13025PW / 6192448 , 0.09MB , pdfREACH Declaration of conformity WDK HTCW13025PW / 6192448 , 0.12MB , pdfRoHS Declaration of conformity WDK HTCW13025PW / 6192448 , 0.13MB , pdfLabel approval VDE symbol approval, WDK , 0.64MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
