T piece cover, for trunking type WDK 13025 | | | Pure white; RAL 9010
morepic-1 morepic-2

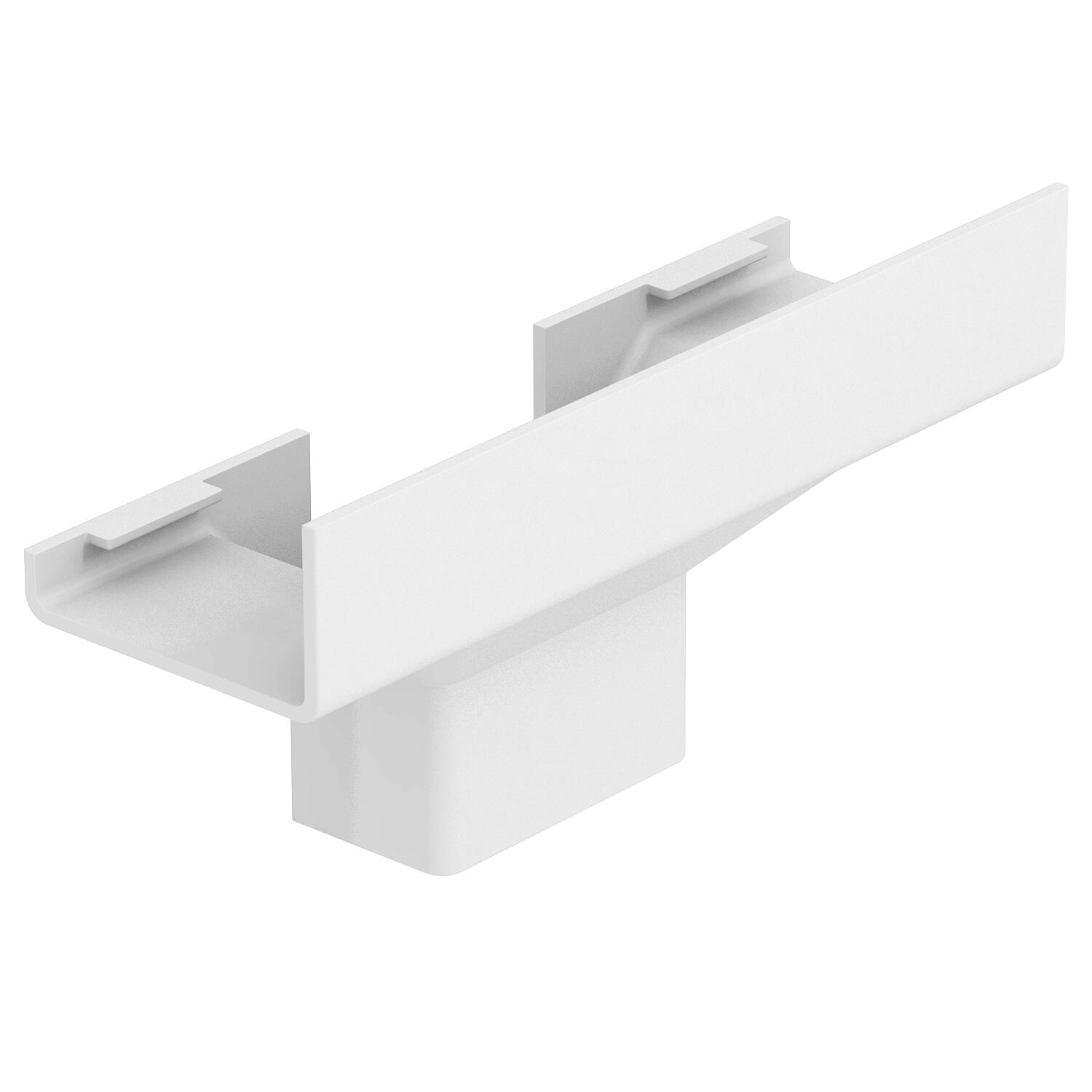

T piece cover, for trunking type WDK 13025

Item no. 6192450 | EAN 4012195959120

Product description
Product description
T piece cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 15x80x40mm
Fastening type Lockable
Halogen-free no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Hood fitting

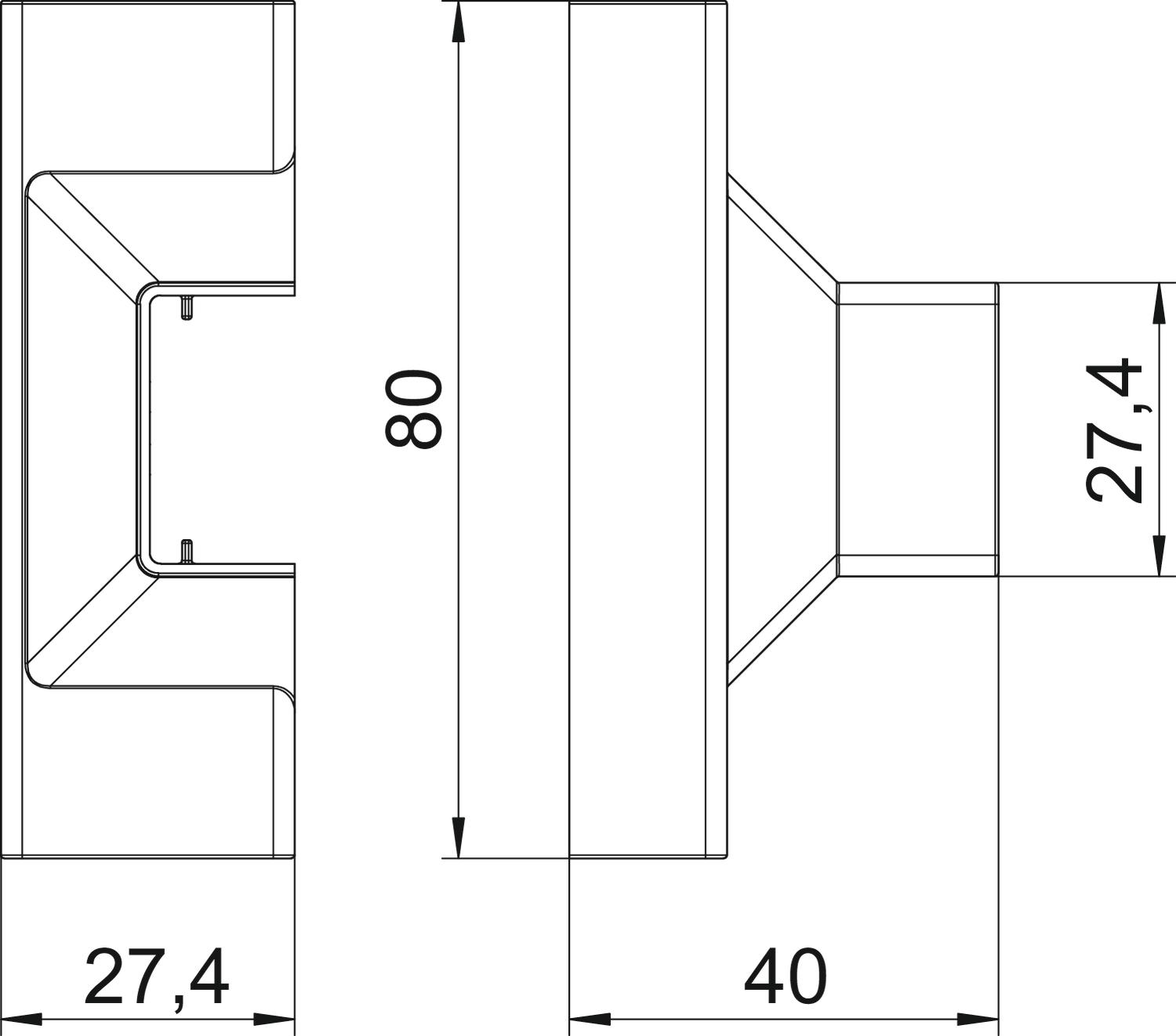

Dimensions

Height 13 mm
Length 80 mm
Width 25 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,0786 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,0786 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-21T00:00:00.000+0200
All types

All types

Types Colour Item no. Quantity SSU
WDK HTCW13025PW Oyster white; RAL 1013 6192448
10 piece
WDK HTCW13025RW Pure white; RAL 9010 6192450
10 piece
Downloads

Download
Download

Download

EU declaration of conformity WDK HTCW13025RW / 6192450 , 0.10MB , pdf
Download
UK Declaration of Conformity WDK HTCW13025RW / 6192450 , 0.09MB , pdf
Download
REACH Declaration of conformity WDK HTCW13025RW / 6192450 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HTCW13025RW / 6192450 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
