Trunking connector and joint cover
Item no. 6113214 | EAN 4012196418268
- Product description
-

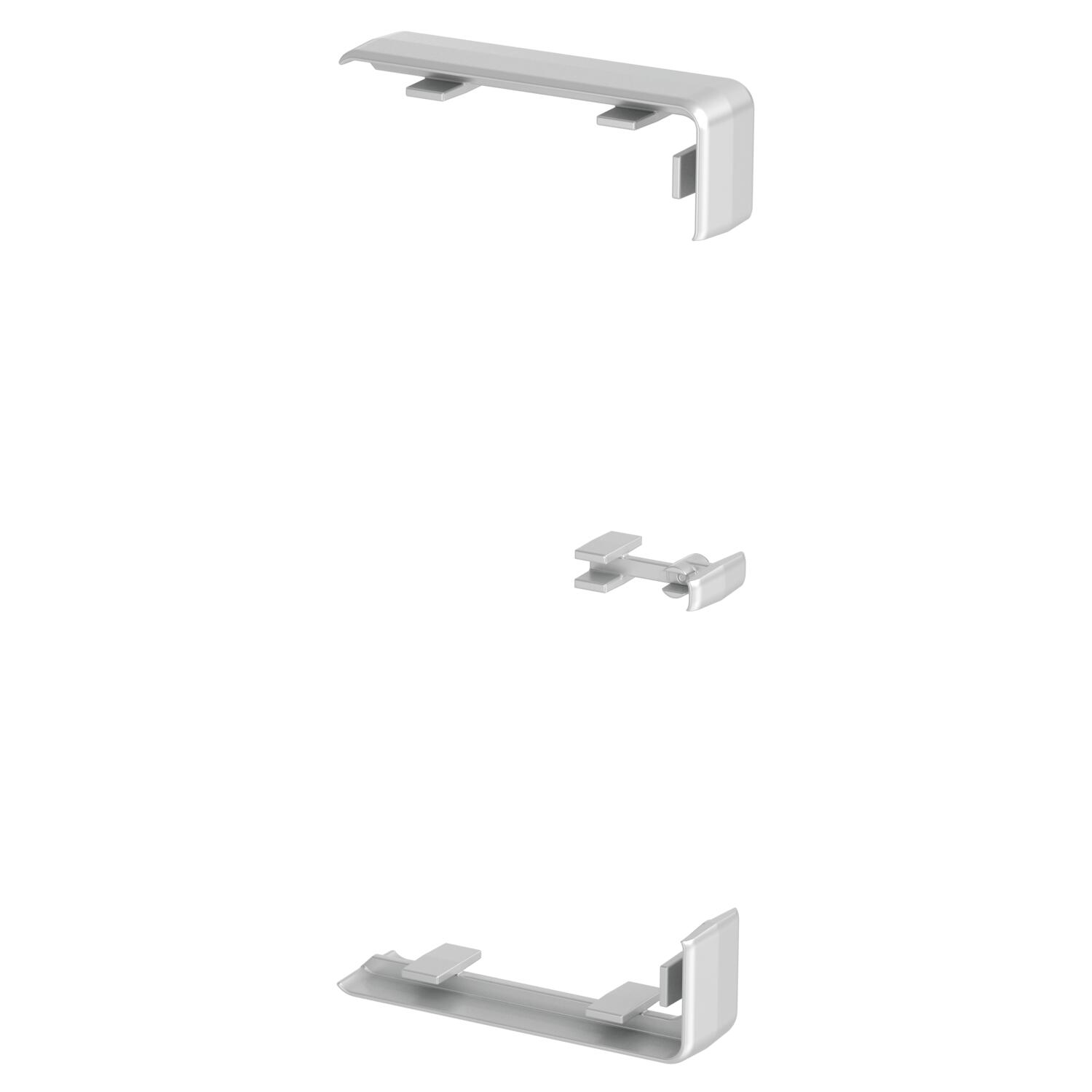

Product descriptionJoint cover for the bases of the Rapid 45 device installation trunking to hide cut edges and provide a perfect connection of the trunking segments. The joint covers are attached. Suitable for trunking width 130 mm.
-
- Technical data
-
Technical data

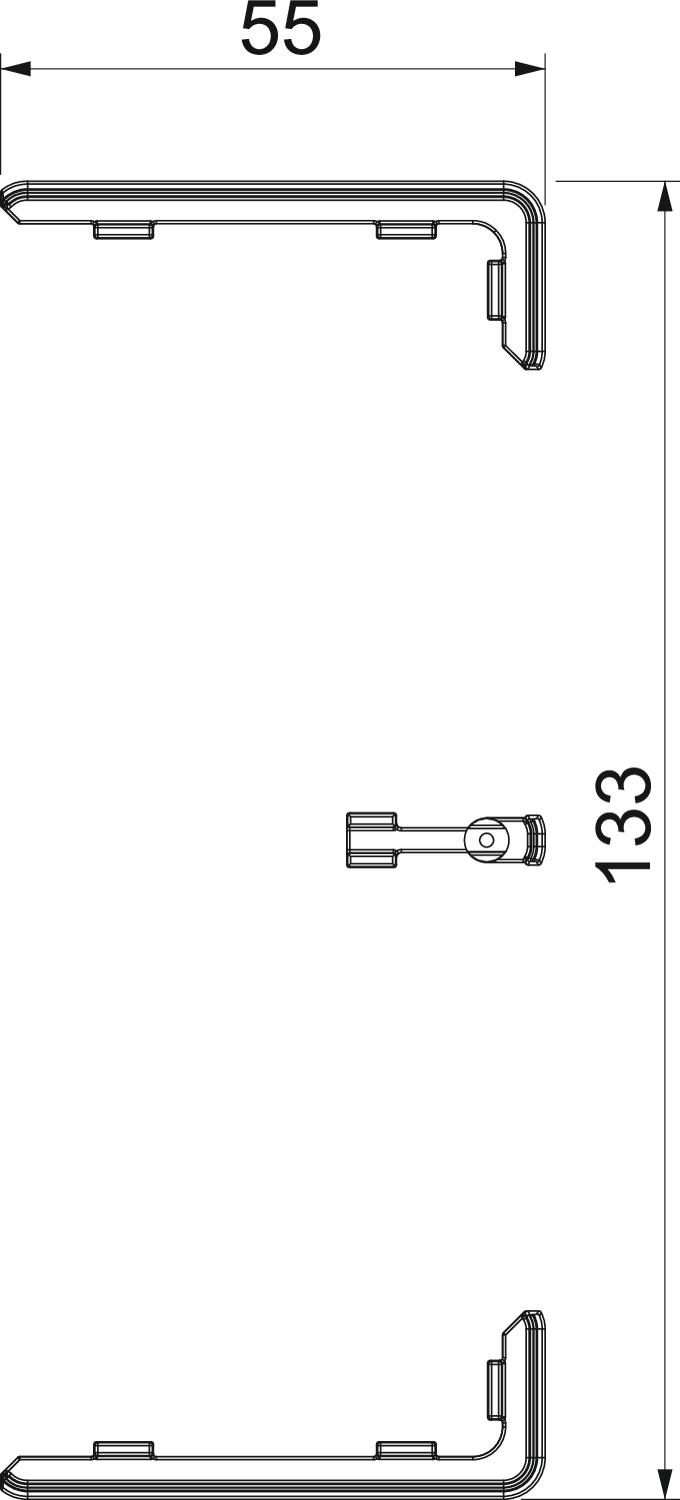

Colour aluminium Cover width 45 mm Dimension 133x55x15 Fastening type Slide (before mounting) for duct width 130 mm for trunking height 53 mm Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Shape Symmetrical Version for Trunking cut cover Dimensions
Height 17 mm Length 15 mm Width 55 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1003 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1003 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet GK-KS45-2AL / 6113214 , 0.18MB , pdfEU declaration of conformity GK-KS45-2AL / 6113214 , 0.10MB , pdfREACH Declaration of conformity GK-KS45-2AL / 6113214 , 0.27MB , pdfRoHS Declaration of conformity GK-KS45-2AL / 6113214 , 0.28MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfNo invitation to tender text is available for this product.
