Trunking connector and joint cover
Item no. 6113212 | EAN 4012196419432
- Product description
-

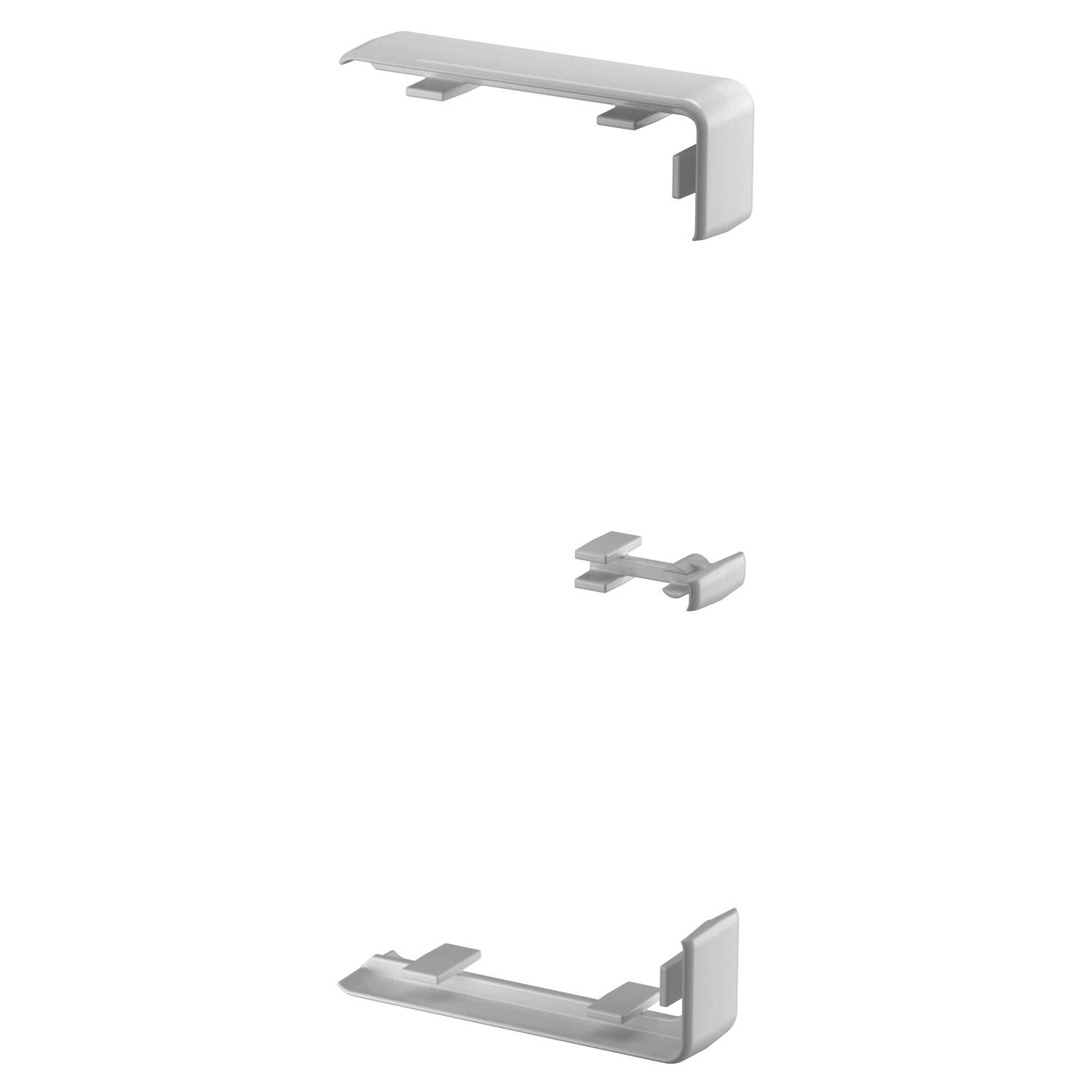

Product descriptionJoint cover for the bases of the Rapid 45 device installation trunking to hide cut edges and provide a perfect connection of the trunking segments. The joint covers are attached. Suitable for trunking width 130 mm.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Cover width 45 mm Dimension 133x55x15 Fastening type Slide (before mounting) for duct width 130 mm for trunking height 53 mm Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Product series Rapid 45® Protection rating IP40 Protection rating IK code IK08 ROHS-conformant yes Shape Symmetrical Version for Trunking cut cover Dimensions
Height 17 mm Length 15 mm Width 55 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0496 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0496 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet GK-KS45-2LGR / 6113212 , 0.15MB , pdfEU declaration of conformity GK-KS45-2LGR / 6113212 , 0.10MB , pdfREACH Declaration of conformity GK-KS45-2LGR / 6113212 , 0.12MB , pdfRoHS Declaration of conformity GK-KS45-2LGR / 6113212 , 0.13MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfNo invitation to tender text is available for this product.
