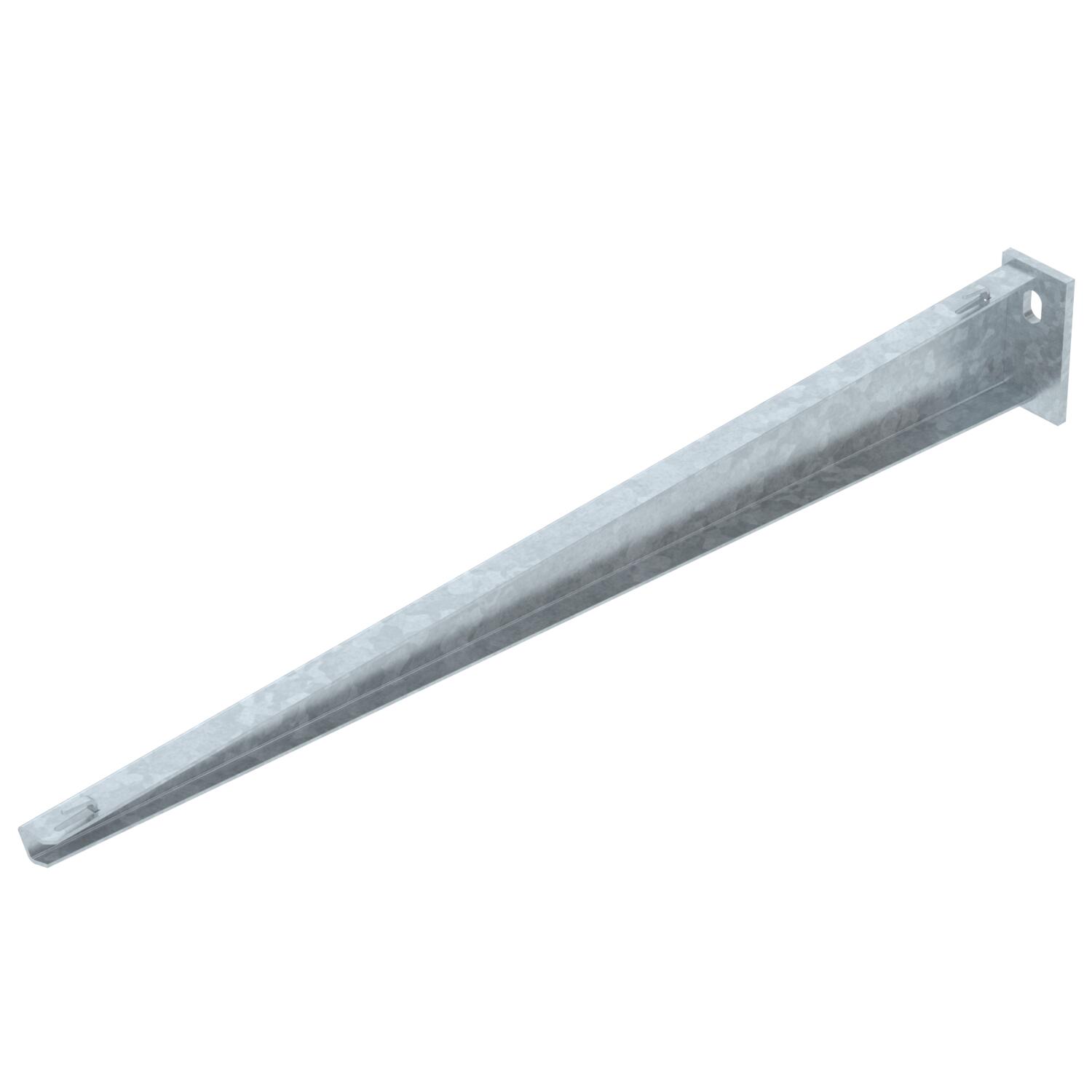

Wall and support bracket AWG 15 FT
Item no. 6420616 | EAN 4012196662777
- Product description
-
Product descriptionLight-duty wall and support bracket with welded head plate for screwless mesh cable tray fastening.
Fastening of the bracket to the U support of width 400 mm or greater using a hexagonal bolt through both sides of the support. Please insert suitable spacers.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension B610mm F in kN 1,5 kN for width max. 600 mm for width min. 600 Hole diameter 11 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Dimensions

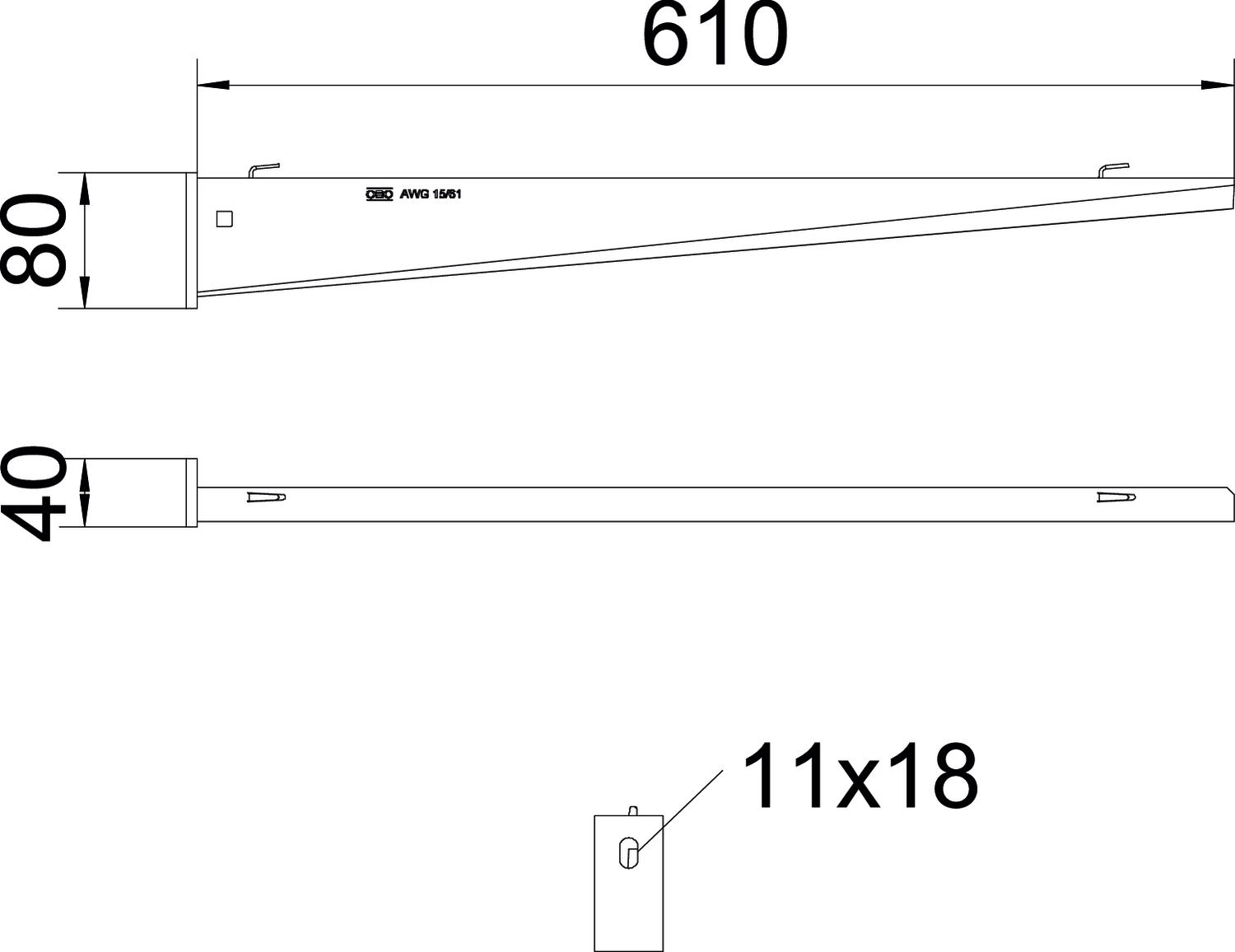

Dimension A 40 mm Dimension B 610 mm Dimension H 80 mm Height 80 mm Length 40 mm Width 610 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,9465 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,9465 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 Technical data
Load diagram, bracket type AW G 15
- All types
-
All types
- Downloads
-
Data sheet AW G 15 61 FT / 6420616 , 0.29MB , pdfEU declaration of conformity AW G 15 61 FT / 6420616 , 0.11MB , pdfUK Declaration of Conformity AW G 15 61 FT / 6420616 , 0.09MB , pdfREACH Declaration of conformity AW G 15 61 FT / 6420616 , 0.12MB , pdfRoHS Declaration of conformity AW G 15 61 FT / 6420616 , 0.12MB , pdfSelection aid GR-Magic® , 0.27MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
