Wall and support bracket AWG 15 FT
Item no. 6420608 | EAN 4012196662531
- Product description
-

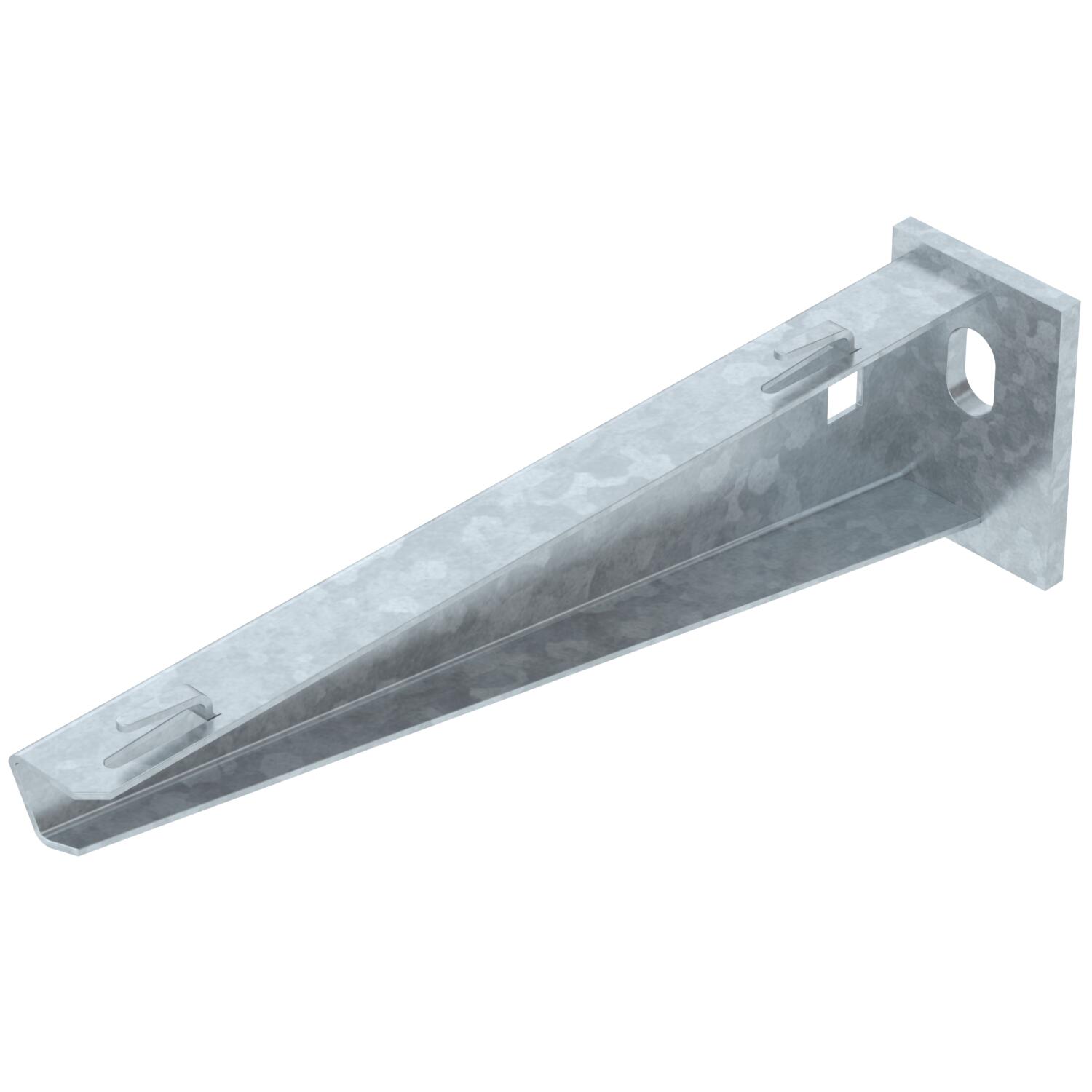

Product descriptionLight-duty wall and support bracket with welded head plate for screwless mesh cable tray fastening.
Fastening of the bracket to the U support of width 400 mm or greater using a hexagonal bolt through both sides of the support. Please insert suitable spacers.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension B210mm F in kN 1,5 kN for width max. 200 mm for width min. 200 Hole diameter 11 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Dimensions

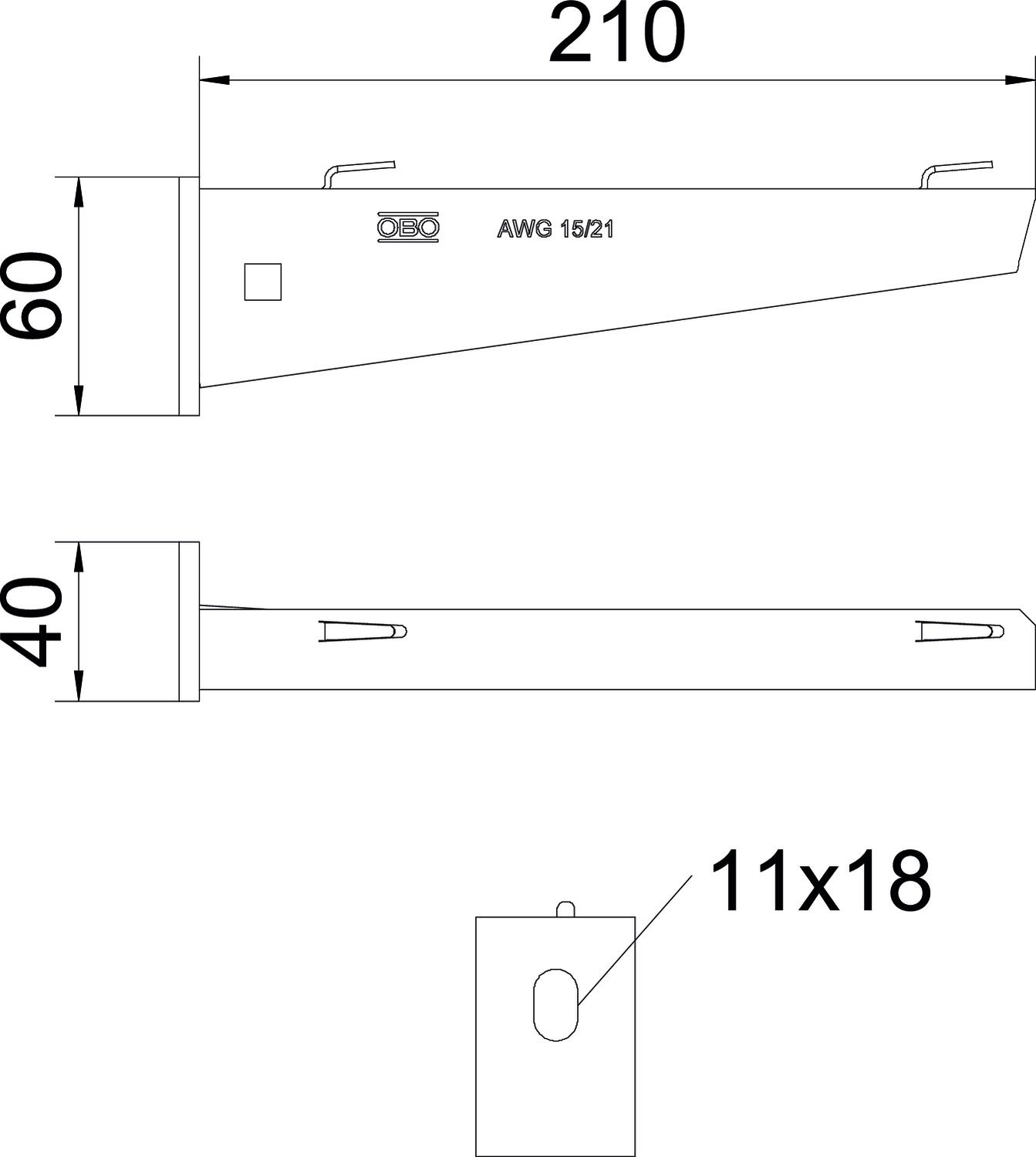

Dimension A 40 mm Dimension B 210 mm Dimension H 60 mm Height 60 mm Length 40 mm Width 210 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,5856 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,5856 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 Technical data
Load diagram, bracket type AW G 15
- All types
-
All types
- Downloads
-
Data sheet AW G 15 21 FT / 6420608 , 0.30MB , pdfEU declaration of conformity AW G 15 21 FT / 6420608 , 0.11MB , pdfUK Declaration of Conformity AW G 15 21 FT / 6420608 , 0.09MB , pdfREACH Declaration of conformity AW G 15 21 FT / 6420608 , 0.12MB , pdfRoHS Declaration of conformity AW G 15 21 FT / 6420608 , 0.13MB , pdfSelection aid GR-Magic® , 0.27MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
