BKRS FT support bracket
Item no. 6044547 | EAN 4012196695119
- Product description
-

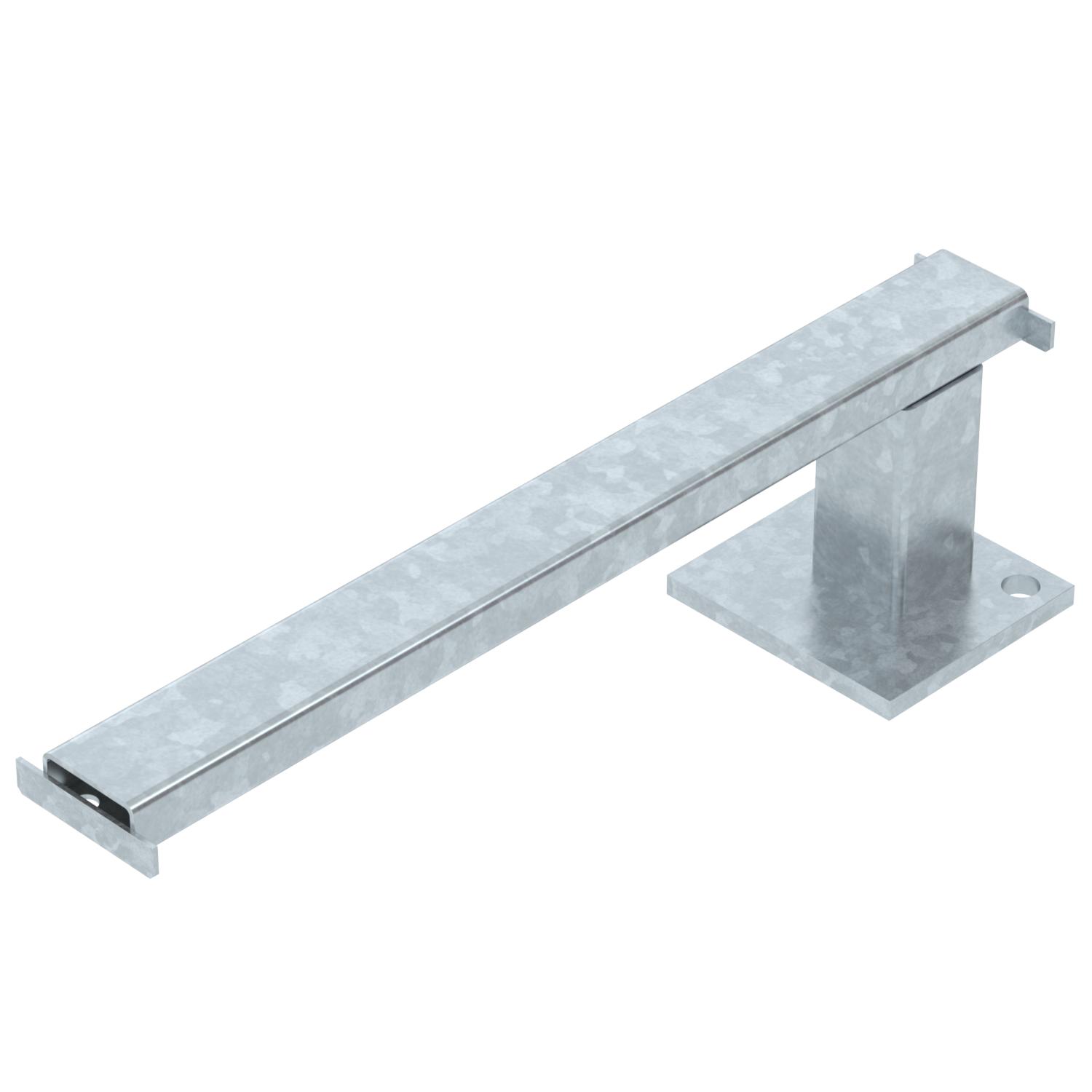

Product descriptionSupport bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.
-
- Technical data
-
Technical data
Colour zinc Dimension B=400 for width max. 400 mm for width min. 400 Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Miscellaneous Version for Support bracket Dimensions

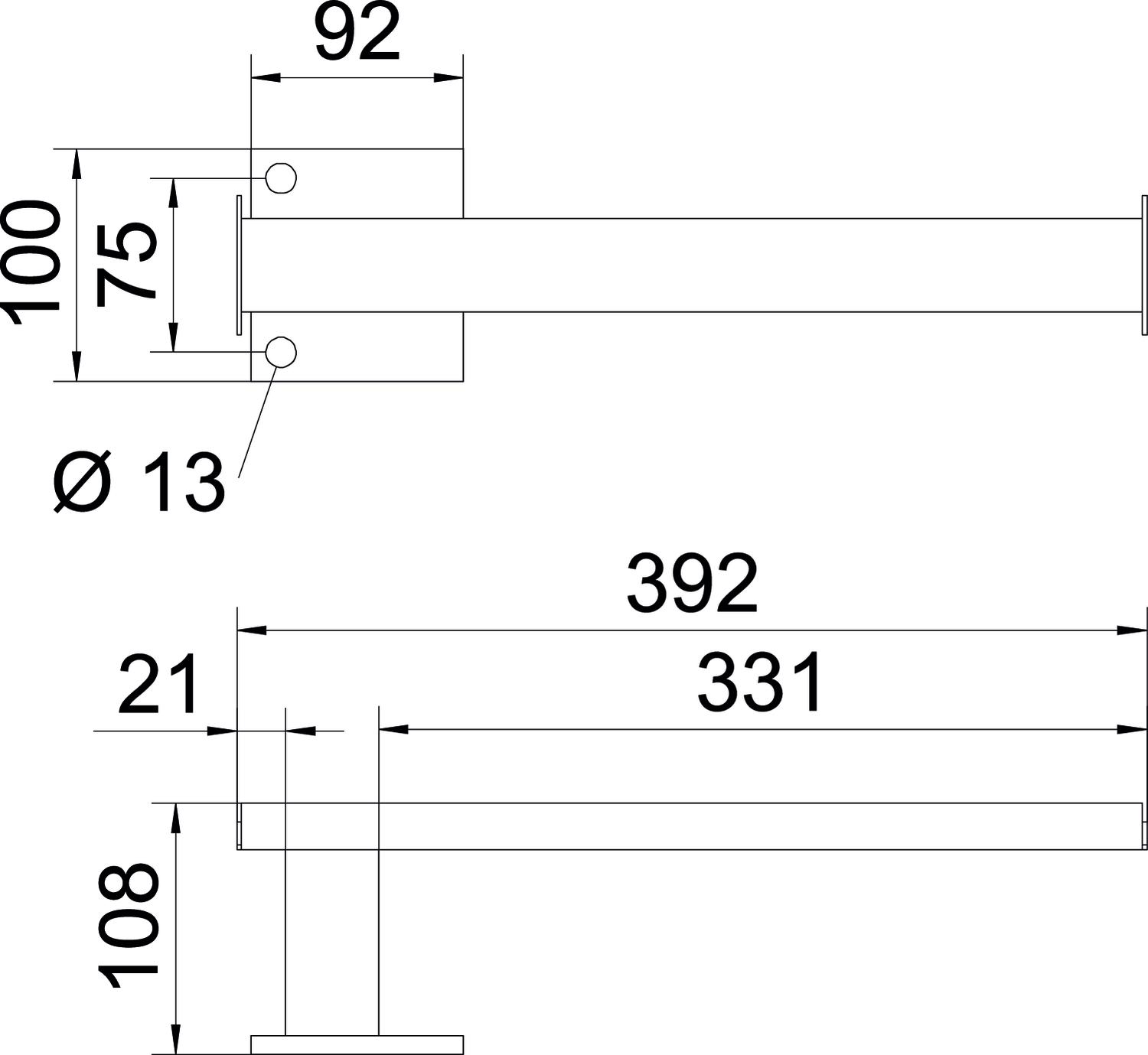

Dimension B 392 mm Dimension b1 23 mm Dimension b2 329 mm Dimension D 13 mm Height 108 mm Length 100 mm Width 392 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 3,4808 kg CO2e / 1 Piece CO₂ Footprint (GWP) 3,4808 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet STA BKRS 400 FT / 6044547 , 0.18MB , pdfEU declaration of conformity STA BKRS 400 FT / 6044547 , 0.10MB , pdfREACH Declaration of conformity STA BKRS 400 FT / 6044547 , 0.12MB , pdfRoHS Declaration of conformity STA BKRS 400 FT / 6044547 , 0.12MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Begehbares Kabelrinnensystem BKRS für VW AG nach VASS-Standard , 4.17MB , pdfMounting instructions BKRS walkable cable tray systems , 5.36MB , pdf
