BKRS FT support bracket
Item no. 6044543 | EAN 4012196695089
- Product description
-

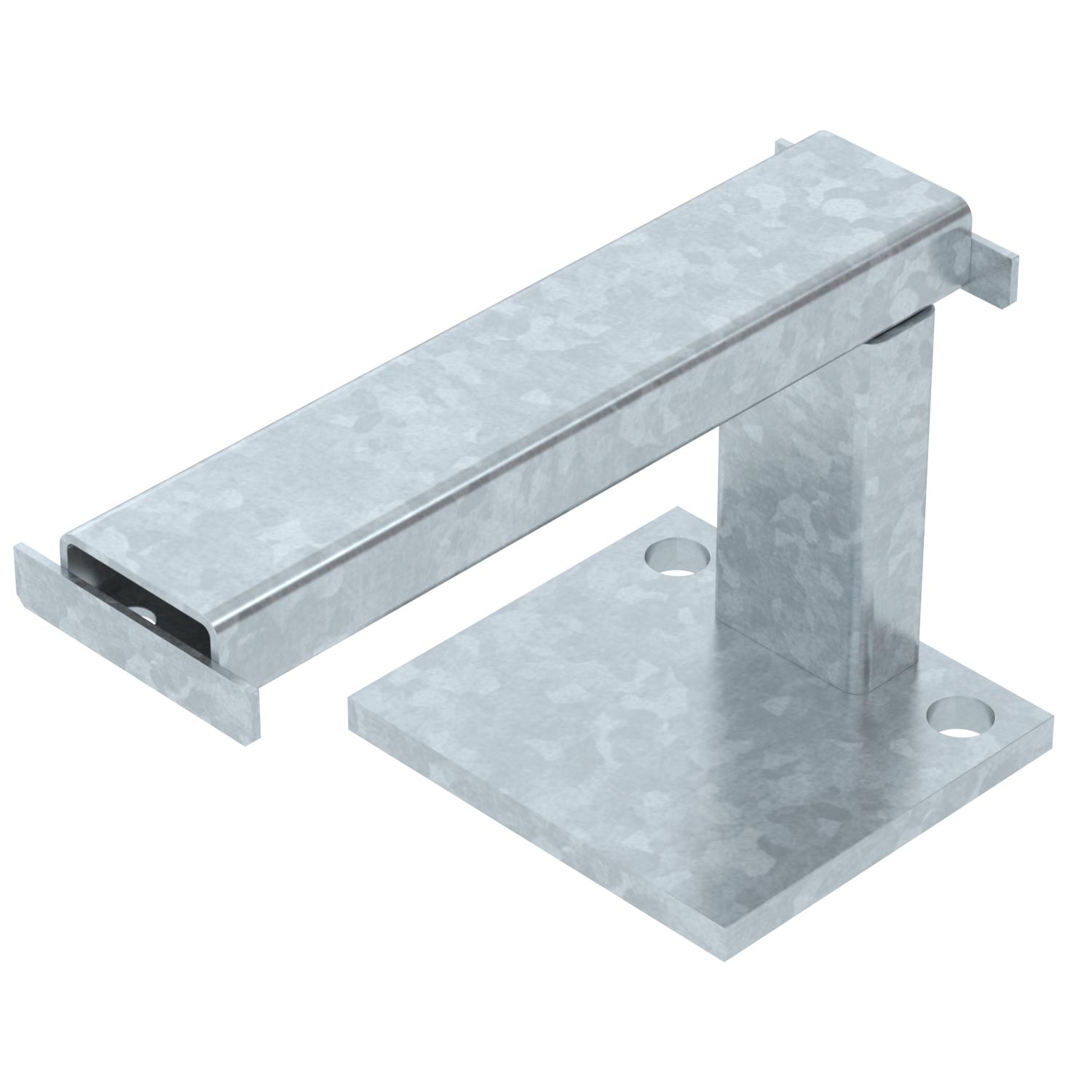

Product descriptionSupport bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.
-
- Technical data
-
Technical data
Colour zinc Dimension B=200 for width max. 200 mm for width min. 200 Material Steel Product series BKRS Series ROHS-conformant yes Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Support bracket Version for Miscellaneous Dimensions

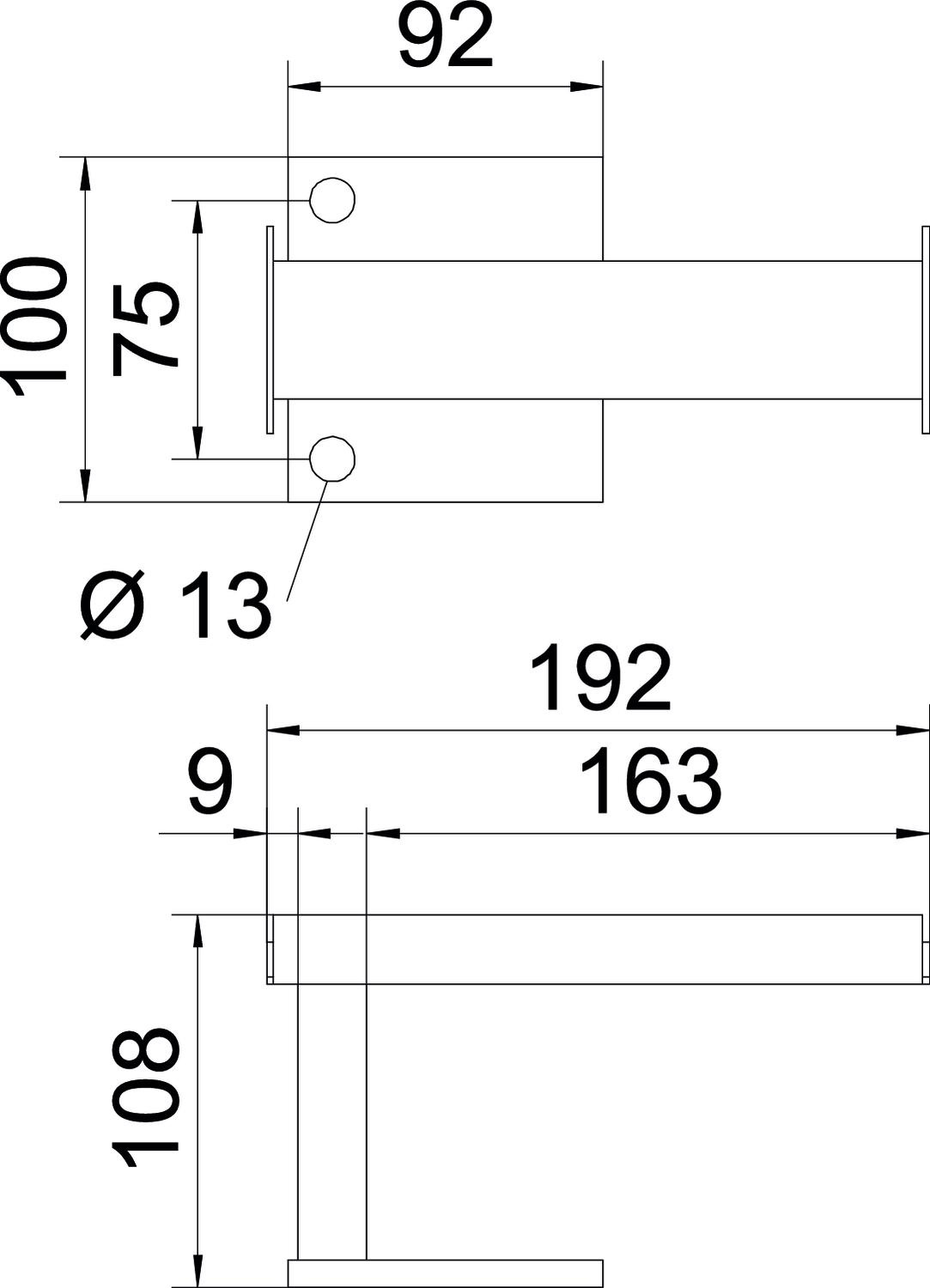

Dimension B 192 mm Dimension b1 11 mm Dimension b2 161 mm Dimension D 13 mm Height 108 mm Length 100 mm Width 192 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,6293 kg CO2e / 1 Piece CO₂ Footprint (GWP) 2,6293 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet STA BKRS 200 FT / 6044543 , 0.18MB , pdfEU declaration of conformity STA BKRS 200 FT / 6044543 , 0.10MB , pdfREACH Declaration of conformity STA BKRS 200 FT / 6044543 , 0.12MB , pdfRoHS Declaration of conformity STA BKRS 200 FT / 6044543 , 0.12MB , pdfMounting instructions BKRS walkable cable tray systems , 5.36MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
