BKRS FT support bracket
Item no. 6044551 | EAN 4012196695126
- Product description
-

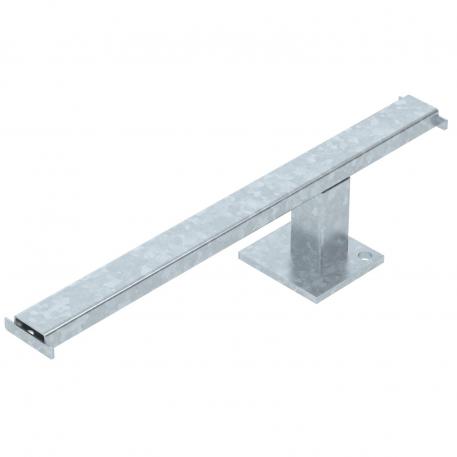

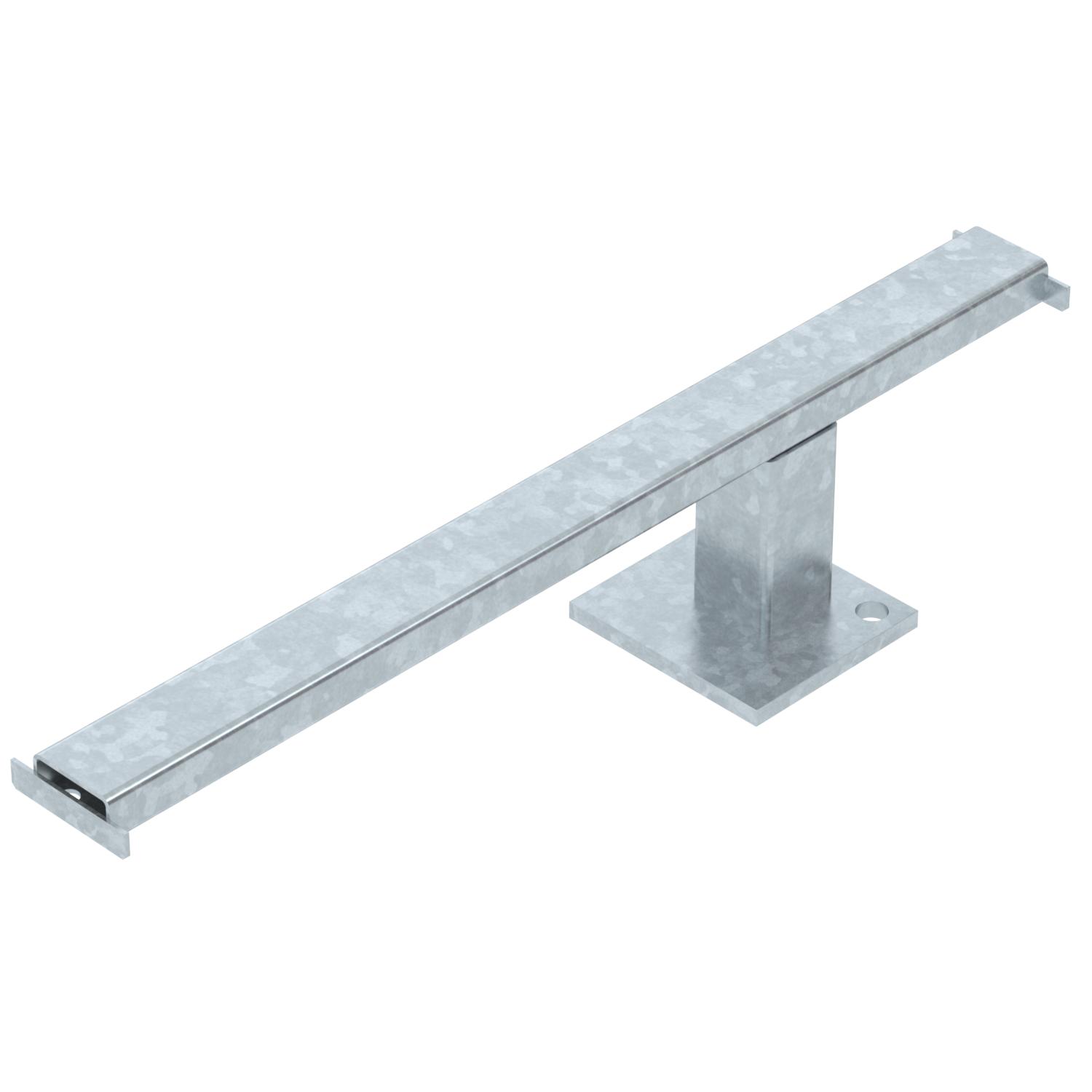

Product descriptionSupport bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.
-
- Technical data
-
Technical data
Colour zinc Dimension B=500 for width max. 500 mm for width min. 500 Material Steel Product series BKRS Series ROHS-conformant yes Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Support bracket Version for Miscellaneous Dimensions

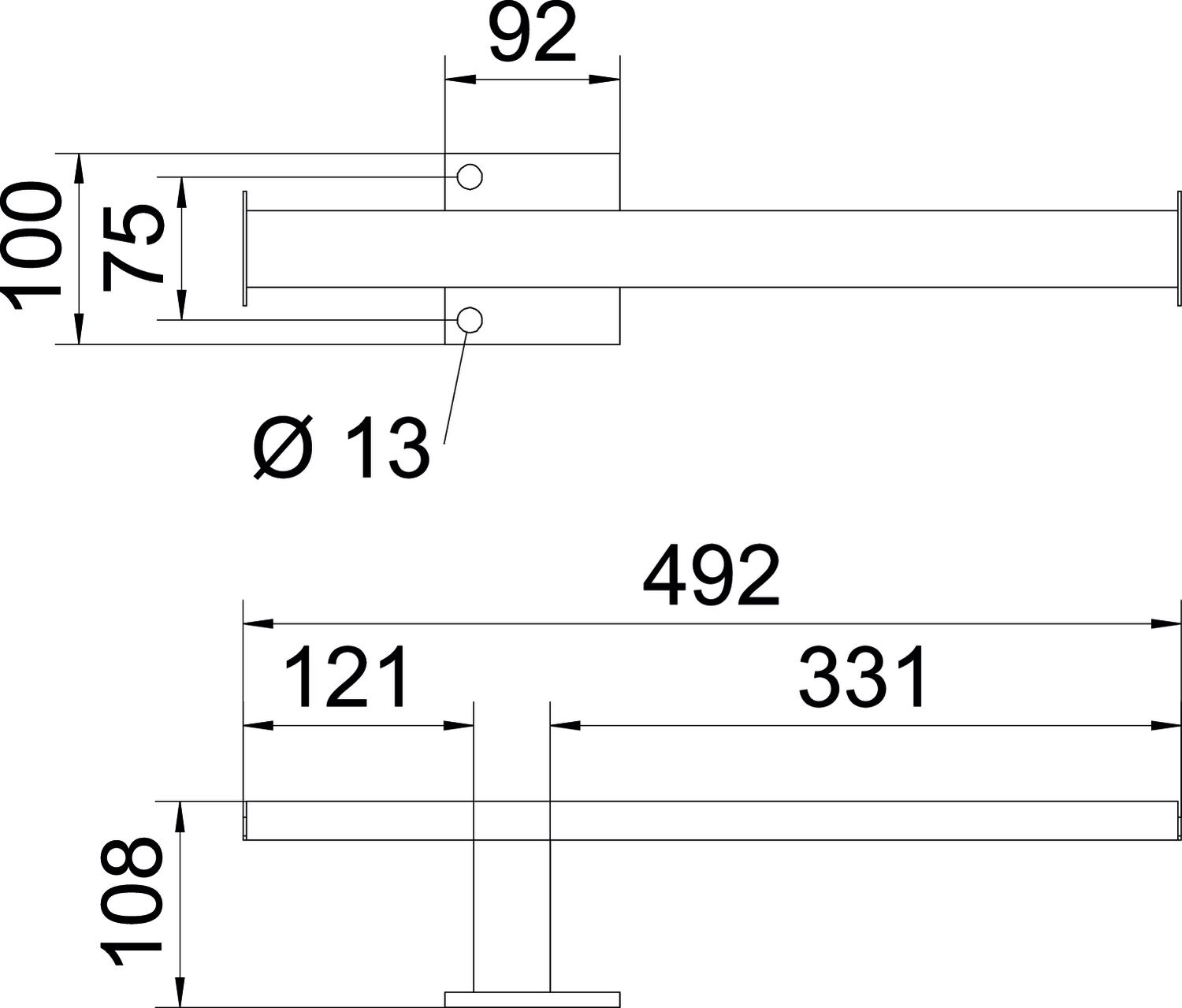

Dimension B 492 mm Dimension b1 123 mm Dimension b2 329 mm Dimension D 13 mm Height 108 mm Length 100 mm Width 492 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 3,7956 kg CO2e / 1 Piece CO₂ Footprint (GWP) 3,7956 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet STA BKRS 500 FT / 6044551 , 0.17MB , pdfEU declaration of conformity STA BKRS 500 FT / 6044551 , 0.10MB , pdfREACH Declaration of conformity STA BKRS 500 FT / 6044551 , 0.12MB , pdfRoHS Declaration of conformity STA BKRS 500 FT / 6044551 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions BKRS walkable cable tray systems , 5.36MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdf
