BKRS FT support bracket
Item no. 6044541 | EAN 4012196695096
- Product description
-

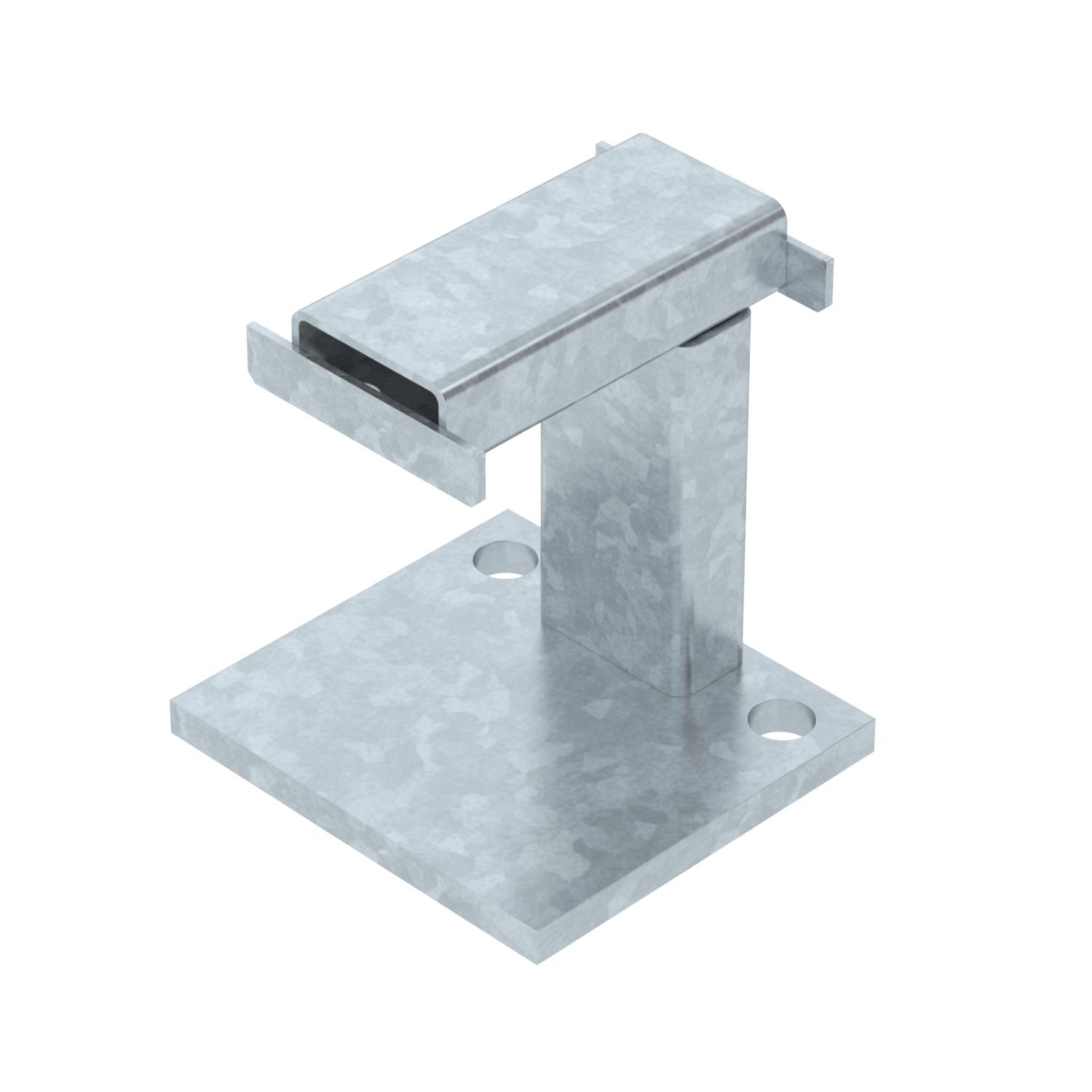

Product descriptionSupport bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.
-
- Technical data
-
Technical data
Colour zinc Dimension B=100 for width max. 100 mm for width min. 100 Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Miscellaneous Version for Support bracket Dimensions

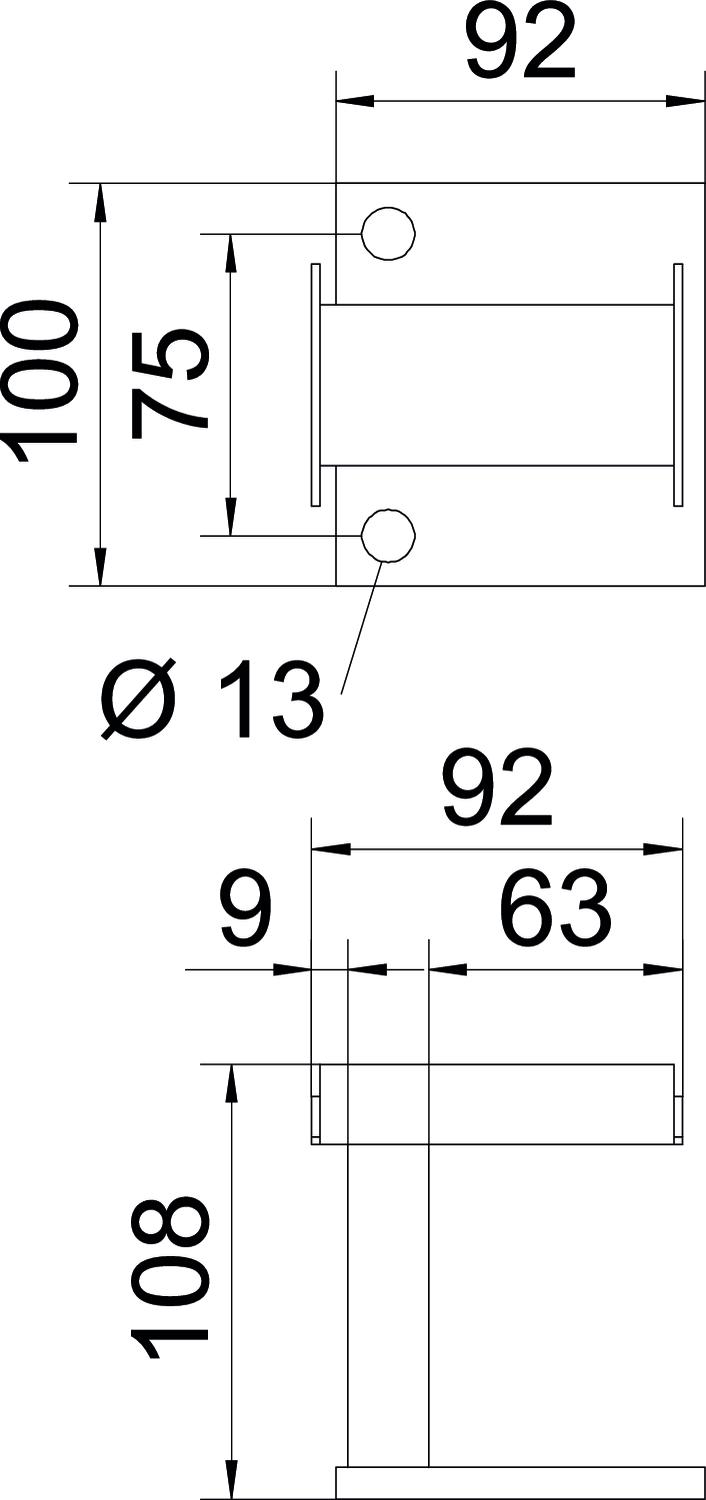

Dimension B 92 mm Dimension b1 11 mm Dimension b2 61 mm Dimension D 13 mm Height 108 mm Length 100 mm Width 98 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,2811 kg CO2e / 1 Piece CO₂ Footprint (GWP) 2,2811 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet STA BKRS 100 FT / 6044541 , 0.17MB , pdfEU declaration of conformity STA BKRS 100 FT / 6044541 , 0.10MB , pdfREACH Declaration of conformity STA BKRS 100 FT / 6044541 , 0.12MB , pdfRoHS Declaration of conformity STA BKRS 100 FT / 6044541 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Begehbares Kabelrinnensystem BKRS für VW AG nach VASS-Standard , 4.17MB , pdfMounting instructions BKRS walkable cable tray systems , 5.36MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdf
