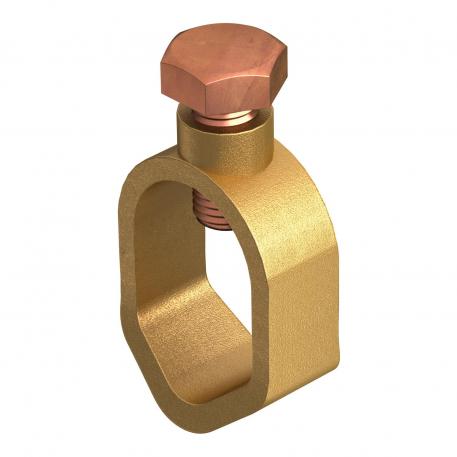

Connection clamp
Item no. 5001594 | EAN 4012196431267
- Product description
-
Product description• For connection of the copper-plated earth rod, type 219 16 CU, with cables/round conductors 16 mm² to 70 mm²
• Type A terminal
-
- Technical data
-
Technical data

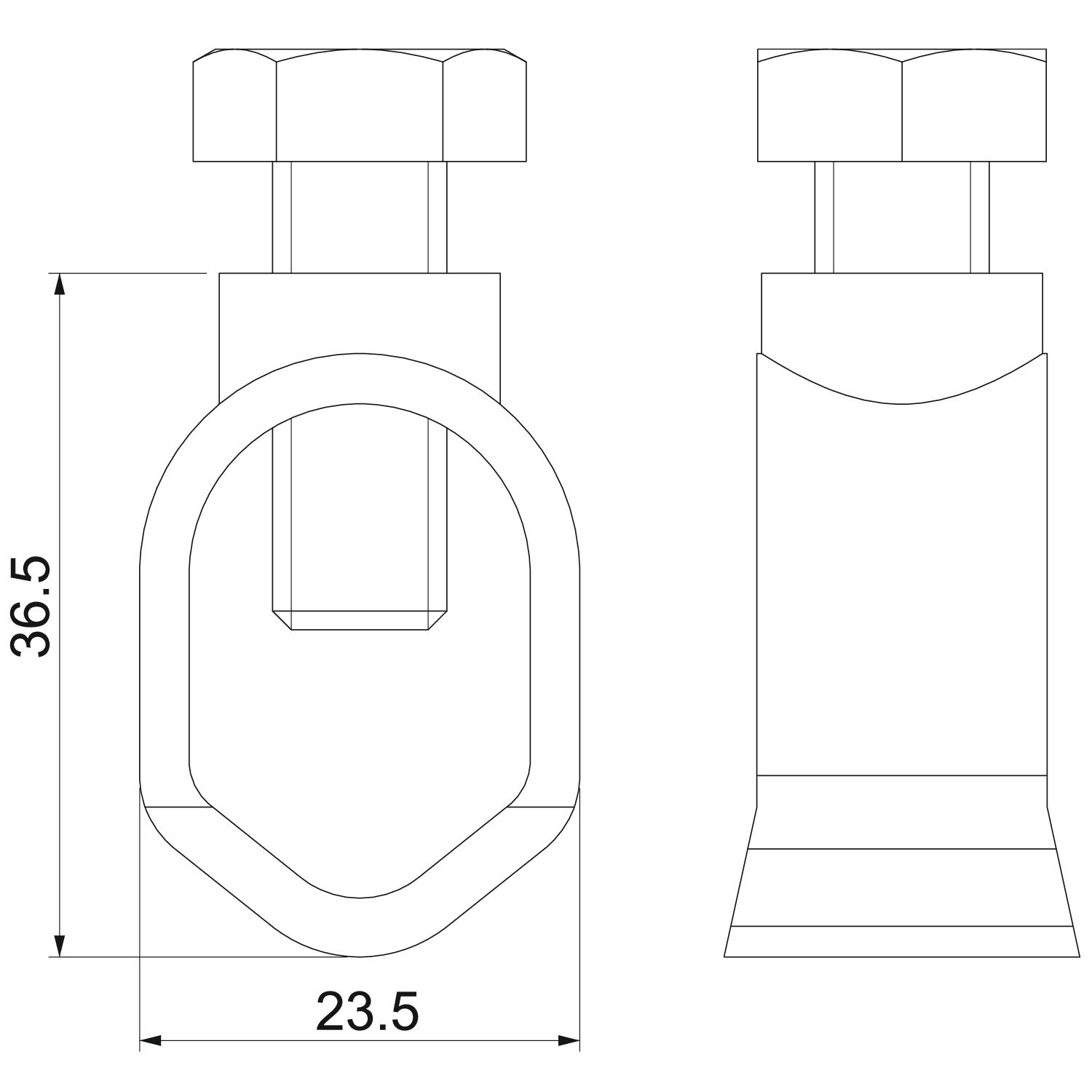

Connection Round conductor Dimension 24x37x24 Fit Rd 14,2 mm Intermediate plate no Material Red bronze Type Connection sleeve CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1982 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1982 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 2745 16 70 / 5001594 , 0.17MB , pdfEU declaration of conformity 2745 16 70 / 5001594 , 0.06MB , pdfREACH Declaration of conformity 2745 16 70 / 5001594 , 0.12MB , pdfRoHS Declaration of conformity 2745 16 70 / 5001594 , 0.12MB , pdf
