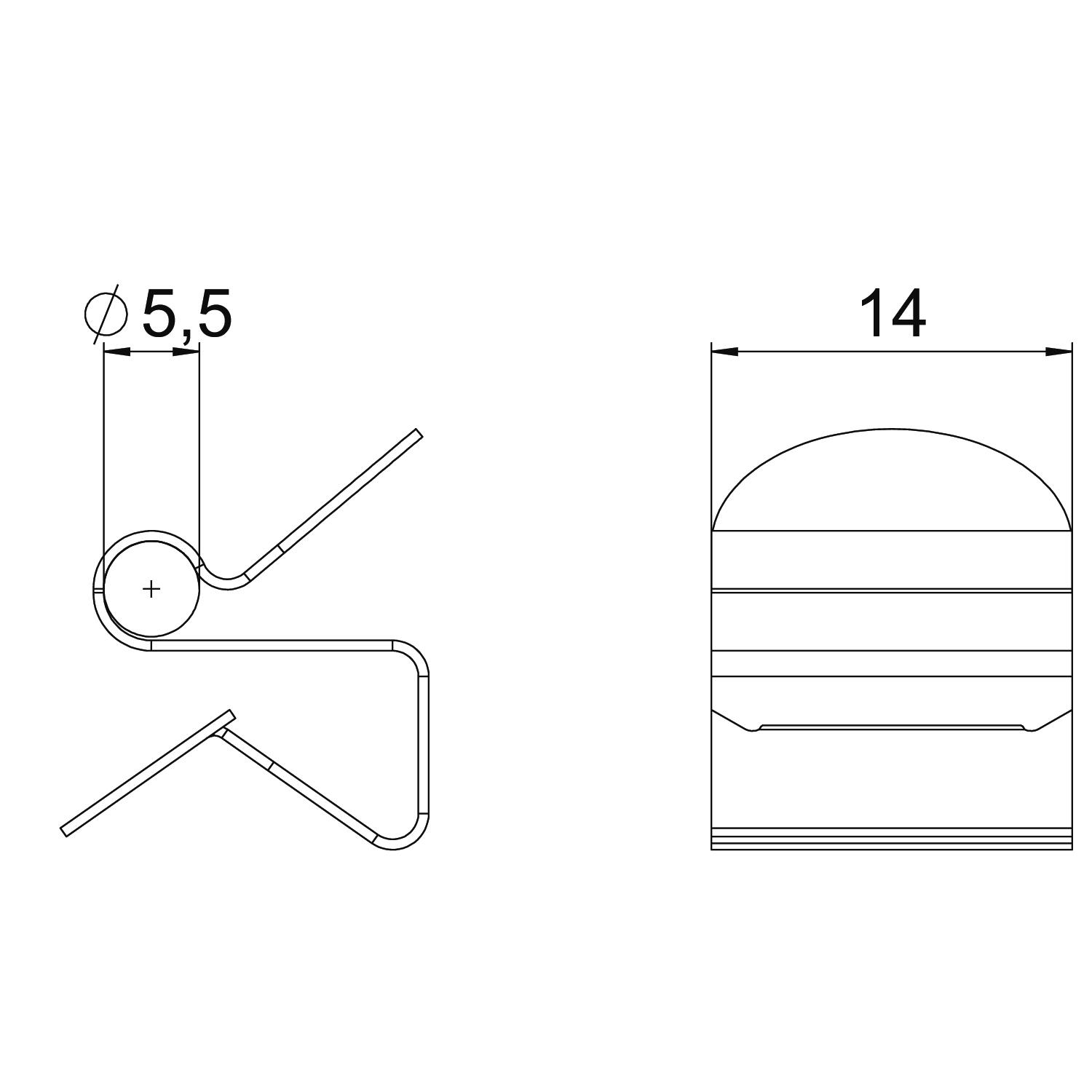

Support clamp for cables

Item no. 1488481 | EAN 4012197392239

Item no. / Types
1488481 / SCC 4-7,5 D5,5
Product description
Product description
Support clamp for mounting cables. Open cable seat at side. Fastening through knocking onto steel girders.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Connection type/component Pipe/cable
Dimension 4-7,5mm
Fastening type Clamp
Flange thickness F max. 7,5 mm
Flange thickness F min. 4 mm
Height 16 mm
Hinge, adjustable no
Hinged no
Length 14 mm
Maß W 14 mm
Material Steel
Pipe/cable diameter, max. 5 mm
Pipe/cable diameter, min. 4 mm
Surface Zinc slat
Width 14 mm
All types

All types

Types Length Width Height Pipe/cable diameter, min. Pipe/cable diameter, max. Dimension B Dimension L Flange thickness F min. Flange thickness F max. Item no. Quantity SSU
SCC 4-7,5 D5,5 14 14 16 4 5 4 7.5 1488481
100 piece
