Support clamp for cables
Item no. 1488510 | EAN 4012197383251
| Item no. / Types |
1488510 / SCC 7,5-12 D5,5
|
|---|
- Product description
-
Product descriptionSupport clamp for mounting cables. Open cable seat at side. Fastening through knocking onto steel girders.
-
- Technical data
-
Technical data

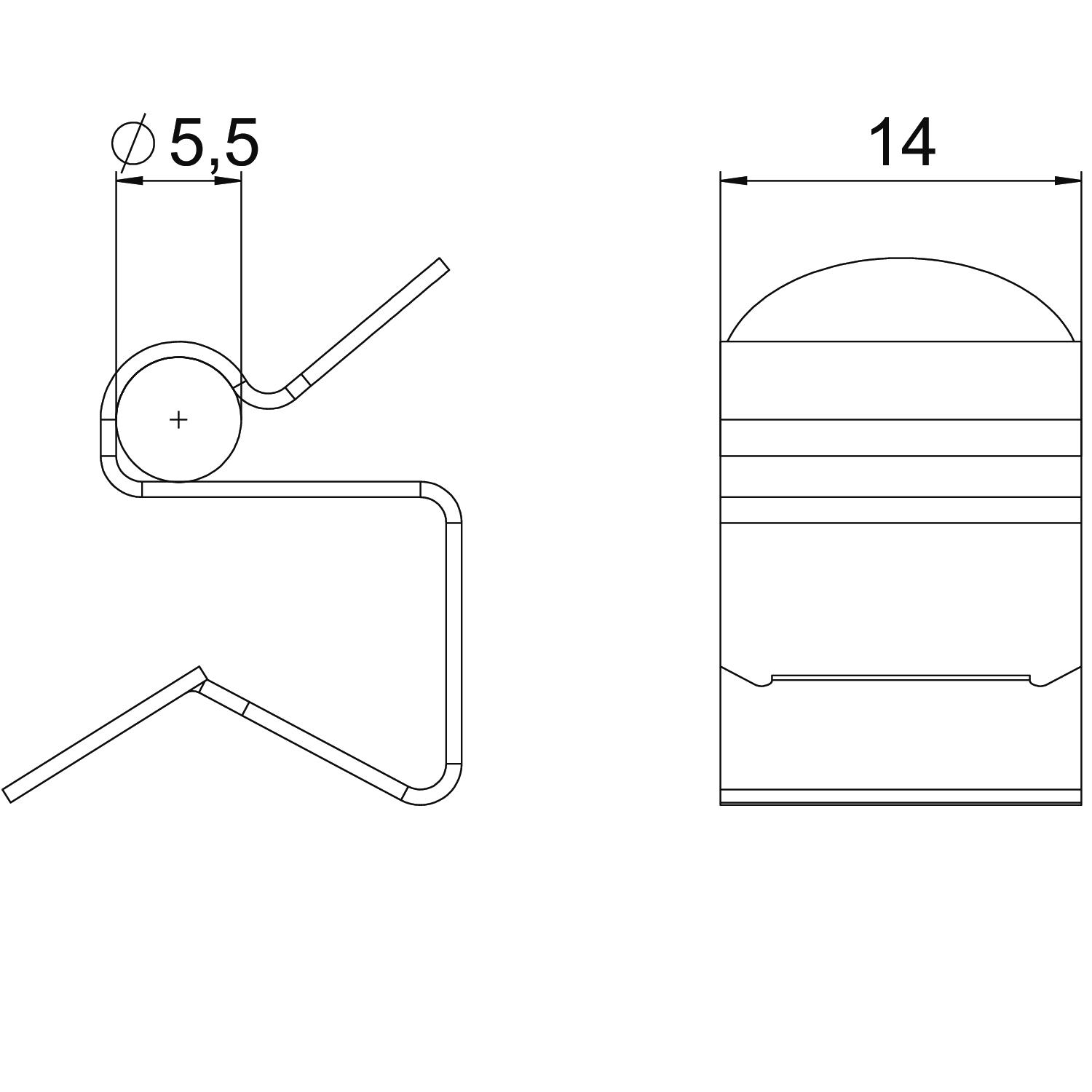

Connection type/component Pipe/cable Dimension 7,5-12mm Fastening type Clamp Flange thickness F max. 12 mm Flange thickness F min. 7,5 mm Height 21 mm Hinge, adjustable no Hinged no Length 18 mm Maß W 14 mm Material Steel Pipe/cable diameter, max. 5 mm Pipe/cable diameter, min. 4 mm Surface Zinc slat Width 14 mm - All types
- Downloads
-
Data sheet SCC 7,5-12 D5,5 / 1488510 , 0.16MB , pdfEU declaration of conformity SCC 7,5-12 D5,5 / 1488510 , 0.10MB , pdfUK Declaration of Conformity SCC 7,5-12 D5,5 / 1488510 , 0.09MB , pdf
