UDHOME2 floor socket, with stainless steel lid, freely equippable

UDHOME2 floor socket, with stainless steel lid, freely equippable

Item no. 7427019 | EAN 4012196149131

Item no. / Types

Cover version

Product description

Product description

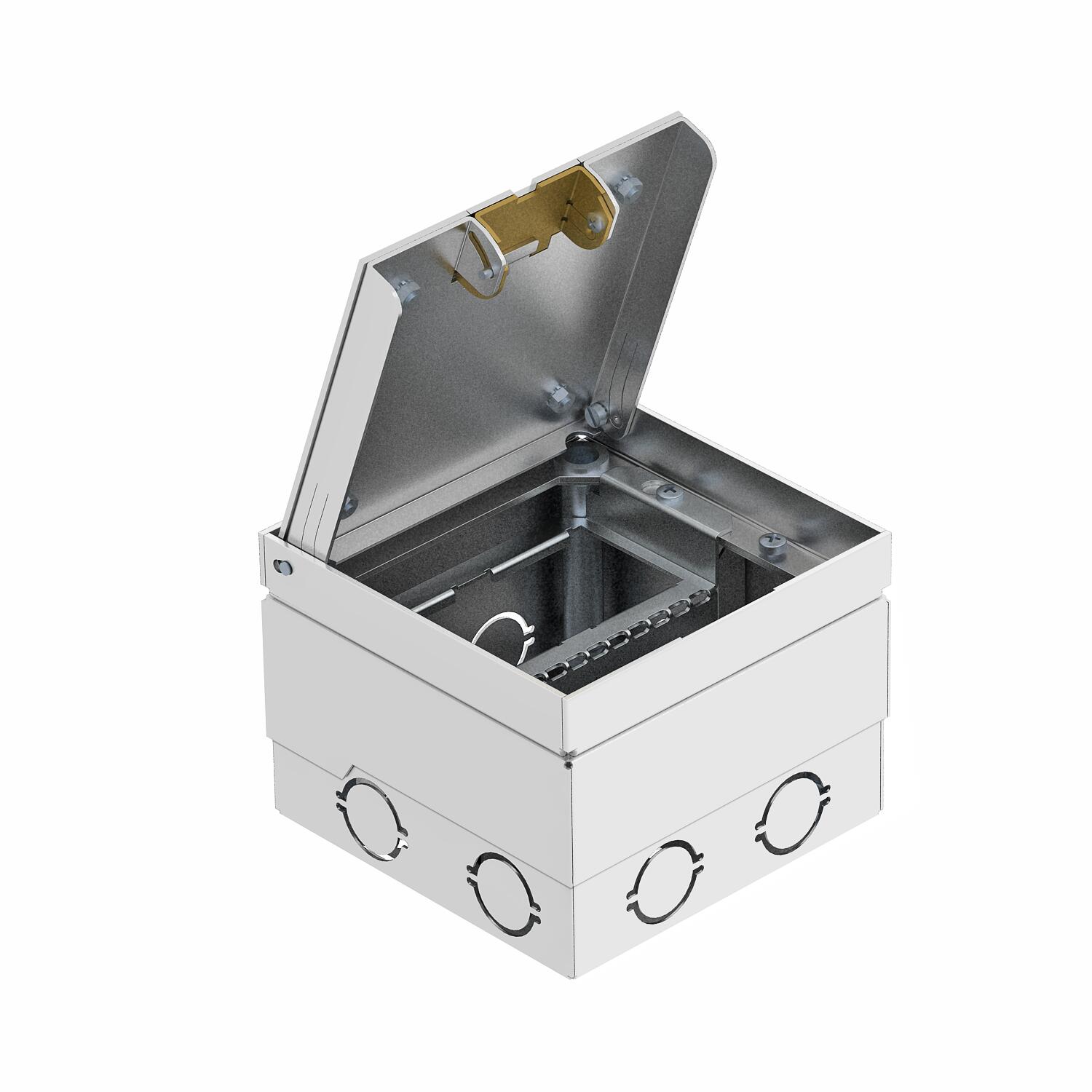

Square floor socket for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height-adjustment range +20 mm.

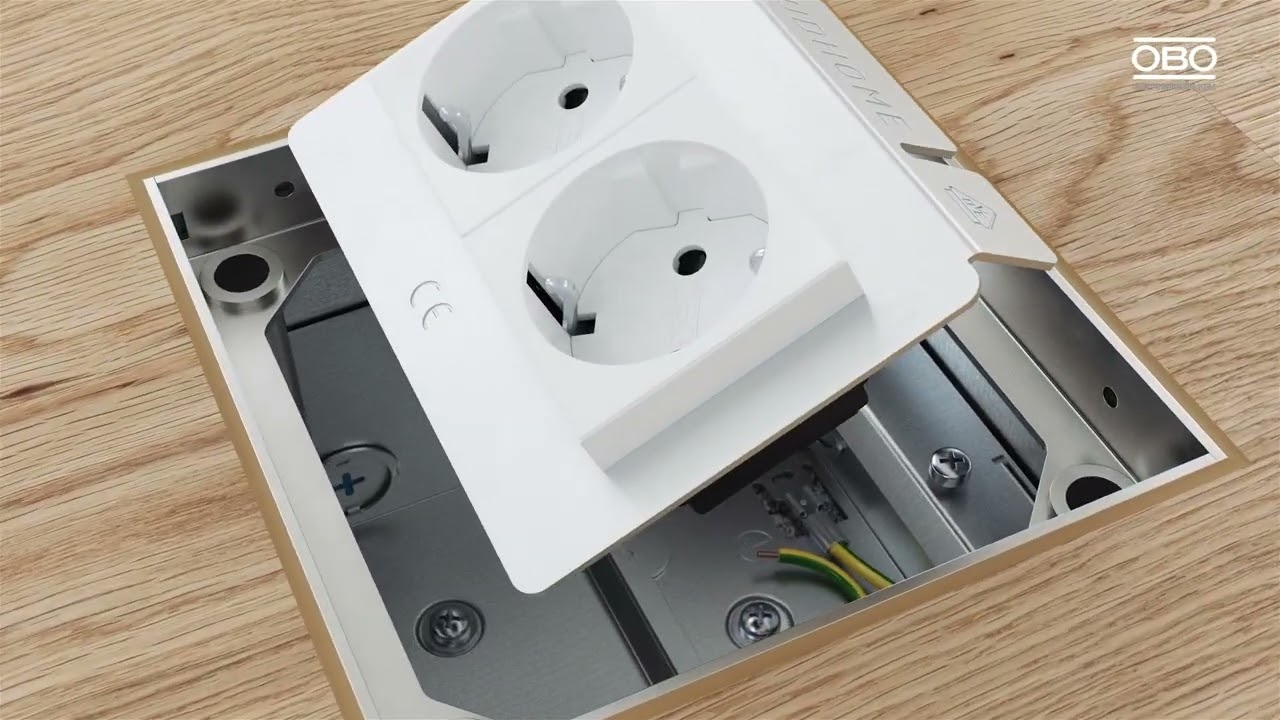

Up to two Modul45® sockets can be installed. In addition, up to two modular data modules (Keystones) can be installed with optional mounting supports.

Surfaces visible in the floor covering made of brushed stainless steel.

The load-bearing capacity of 15 kN is only guaranteed when in an unused state.

Technical data

Technical data

Cable outlet version	Swivellable cord outlet
CO₂ Footprint (GWP) Cradle-to-Gate	9,0486 kg CO₂e / 1 Piece

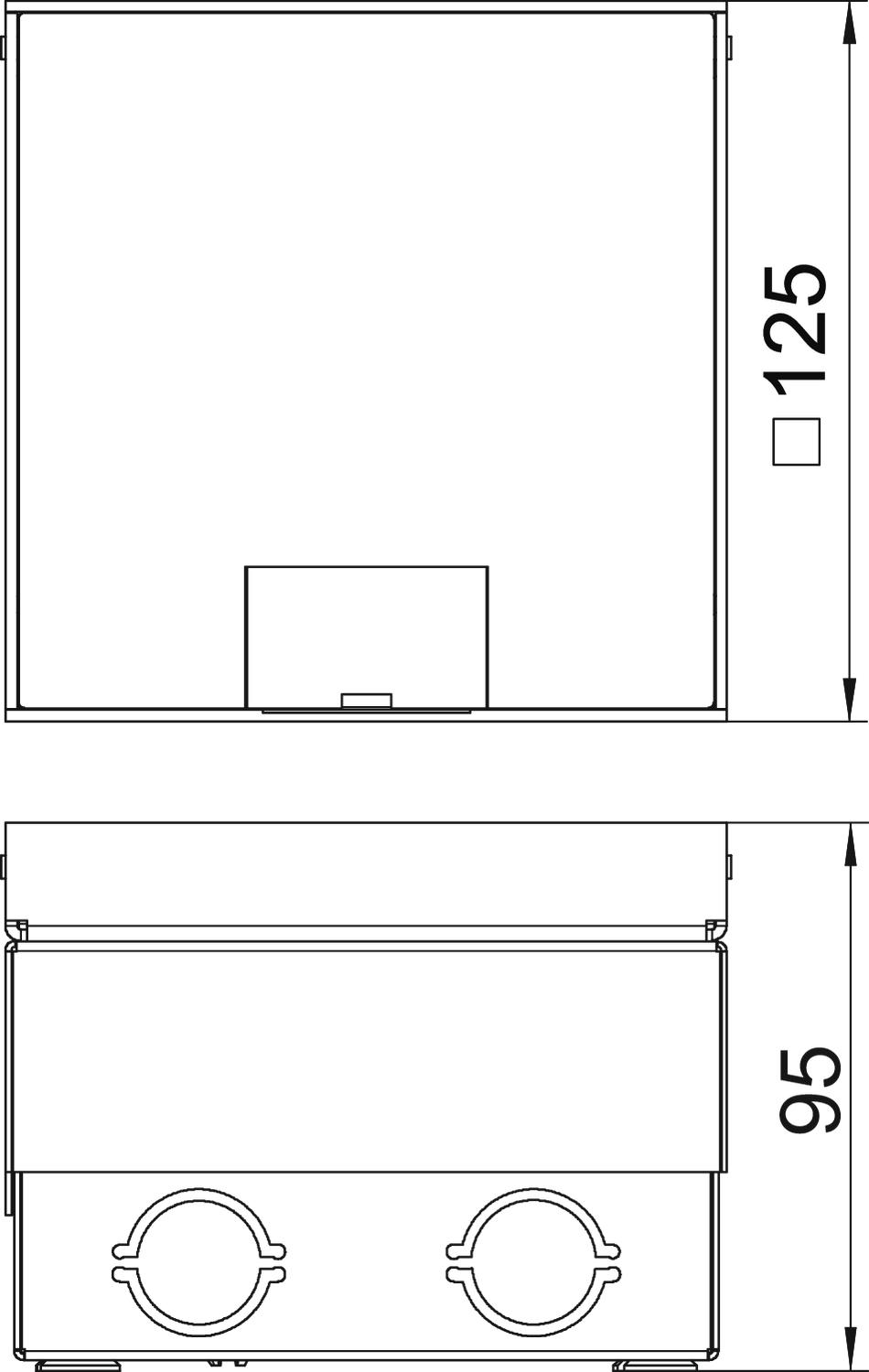

Dimension h	95 mm
Floor care	Dry
Floor height, max.	115 mm
Floor height, min.	95 mm
Height-adjustment range, max.	115 mm
Height-adjustment range, min.	95 mm
Installation depth	95 mm
Length of external dimensions	125 mm
Length of installation dimensions	125 mm
Material	Stainless steel

Opening mechanism	Tool
Suitable for cavity floor installation	yes
Suitable for raised floor installation	no
Suitable for screed-covered underfloor ducts	no
Suitable for screed-flush closed underfloor ducts	no
Suitable for underfloor ducts	no
Suitable for wet care	no
Version for	Square
Wide external dimensions	125 mm
Wide installation dimensions	125 mm
With floor covering recess	no
