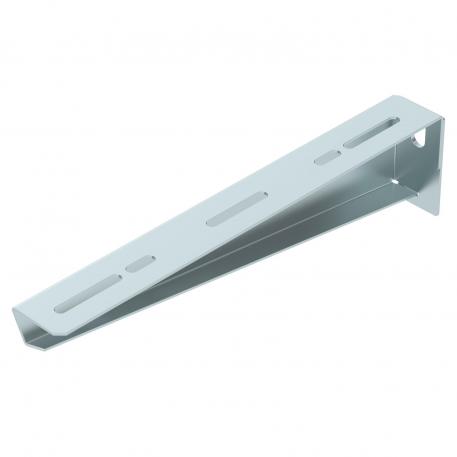

Wall and support bracket MWA 12
Item no. 6424506 | EAN 4012196863389
- Product description
-
Product descriptionLight-duty wall and support bracket.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension B310mm Dimension A 38 mm Dimension B 310 mm Dimension H 75 mm F in kN 1,2 kN Height 75 mm Hole diameter 11 mm Length 38 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Strip galvanized Version for Wall and support bracket Width 310 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet MWA 12 31 FS RU / 6424506 , 0.16MB , pdfEU declaration of conformity MWA 12 31 FS RU / 6424506 , 0.11MB , pdfUK Declaration of Conformity MWA 12 31 FS RU / 6424506 , 0.09MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
