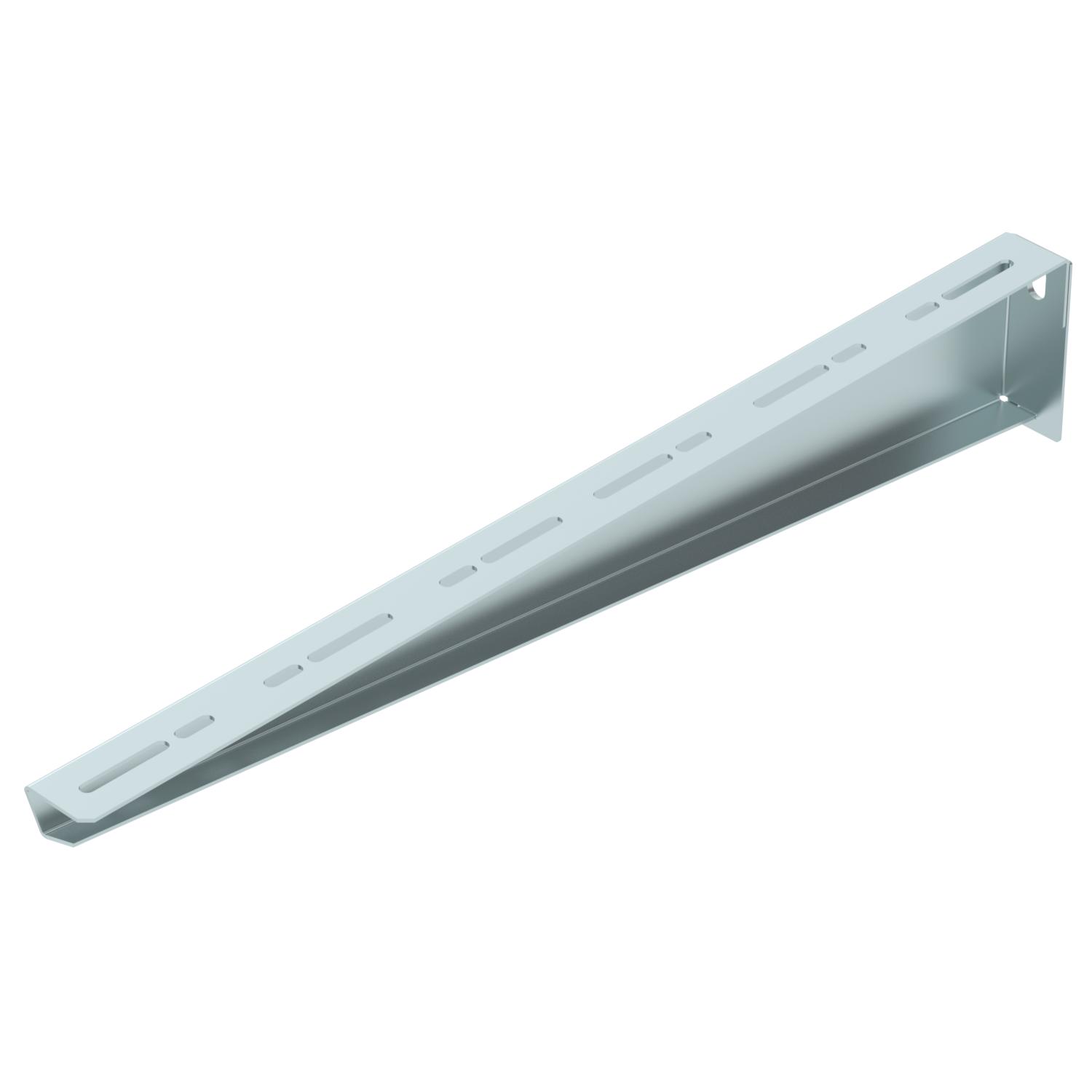

Wall and support bracket MWA 12
Item no. 6424512 | EAN 4012196863464
- Product description
-
Product descriptionLight-duty wall and support bracket.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension B610mm F in kN 1,2 kN Hole diameter 11 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Strip galvanised Version for Wall and support bracket Dimensions

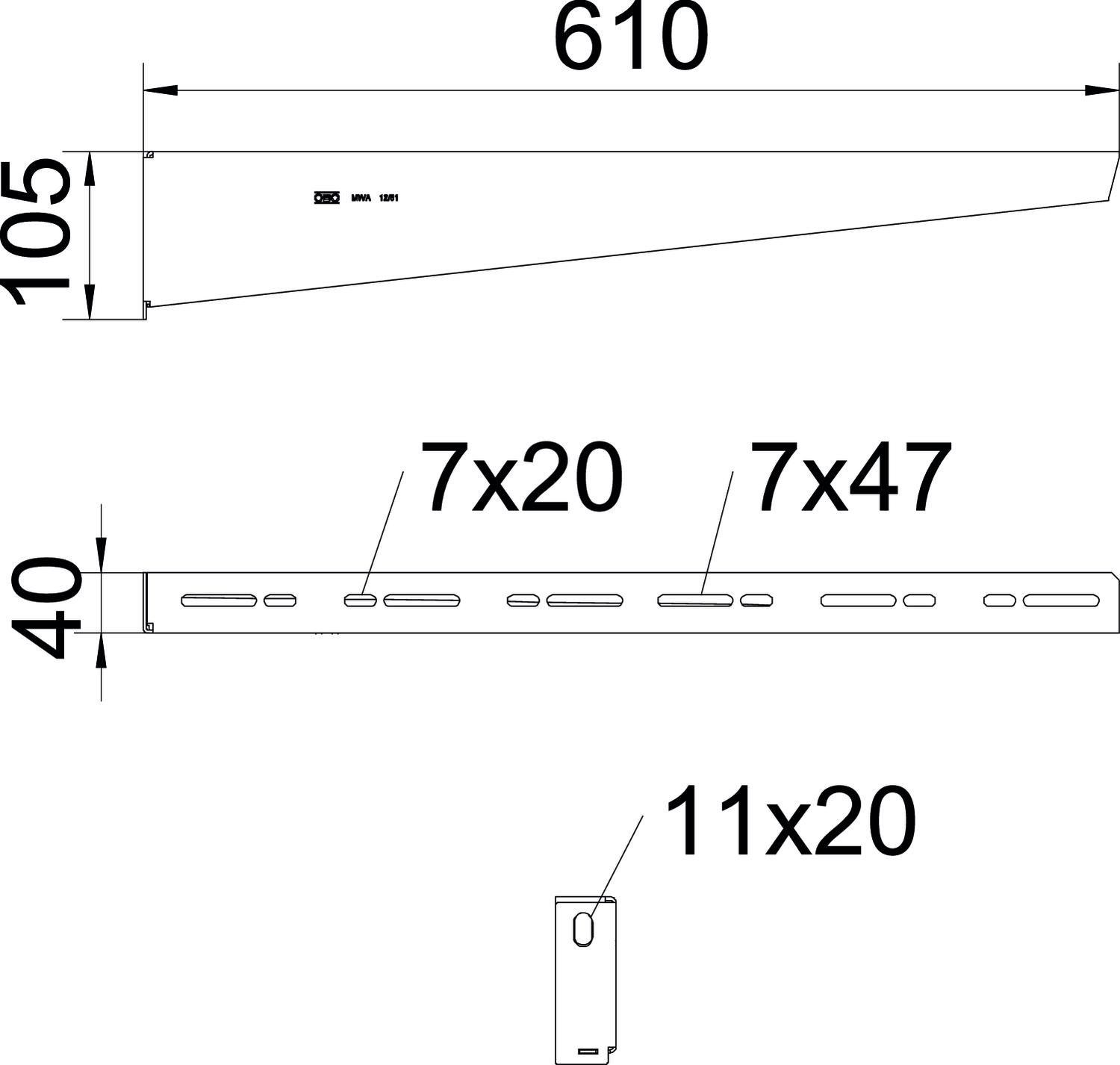

Dimension A 38 mm Dimension B 610 mm Dimension H 105 mm Height 105 mm Length 38 mm Width 610 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet MWA 12 61 FS RU / 6424512 , 0.16MB , pdfEU declaration of conformity MWA 12 61 FS RU / 6424512 , 0.11MB , pdfUK Declaration of Conformity MWA 12 61 FS RU / 6424512 , 0.09MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
