Wall bracket, variable AWV FT
Item no. 6419550 | EAN 4012196206353
- Product description
-

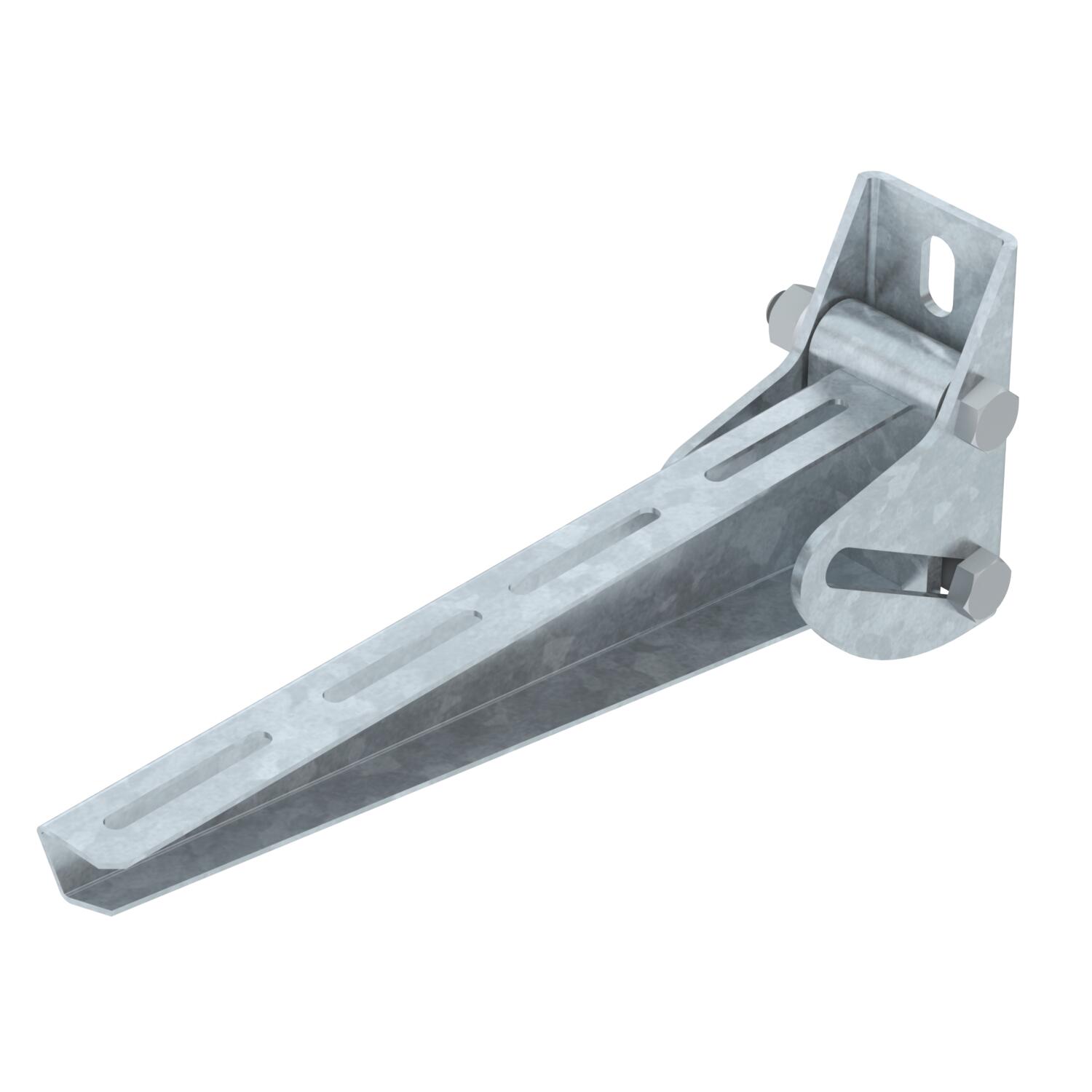

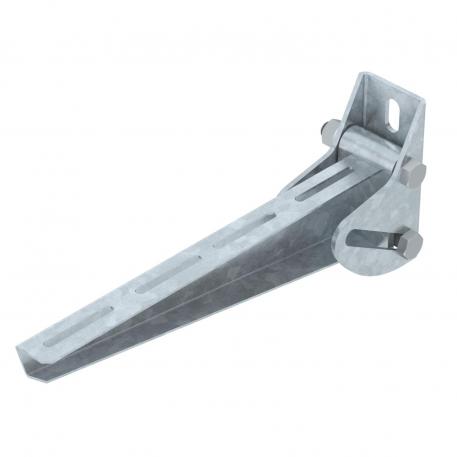

Product descriptionVariable wall bracket for fixing to sloping or vaulted walls.
Usable bracket length dependent on adjustment angle. The largest possible adjustment angle is 30°.
-
- Technical data
-
Technical data
Colour zinc Dimension B310mm F in kN 0,9 kN for width max. 90 mm for width min. 60 Hole diameter 13 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Dimensions

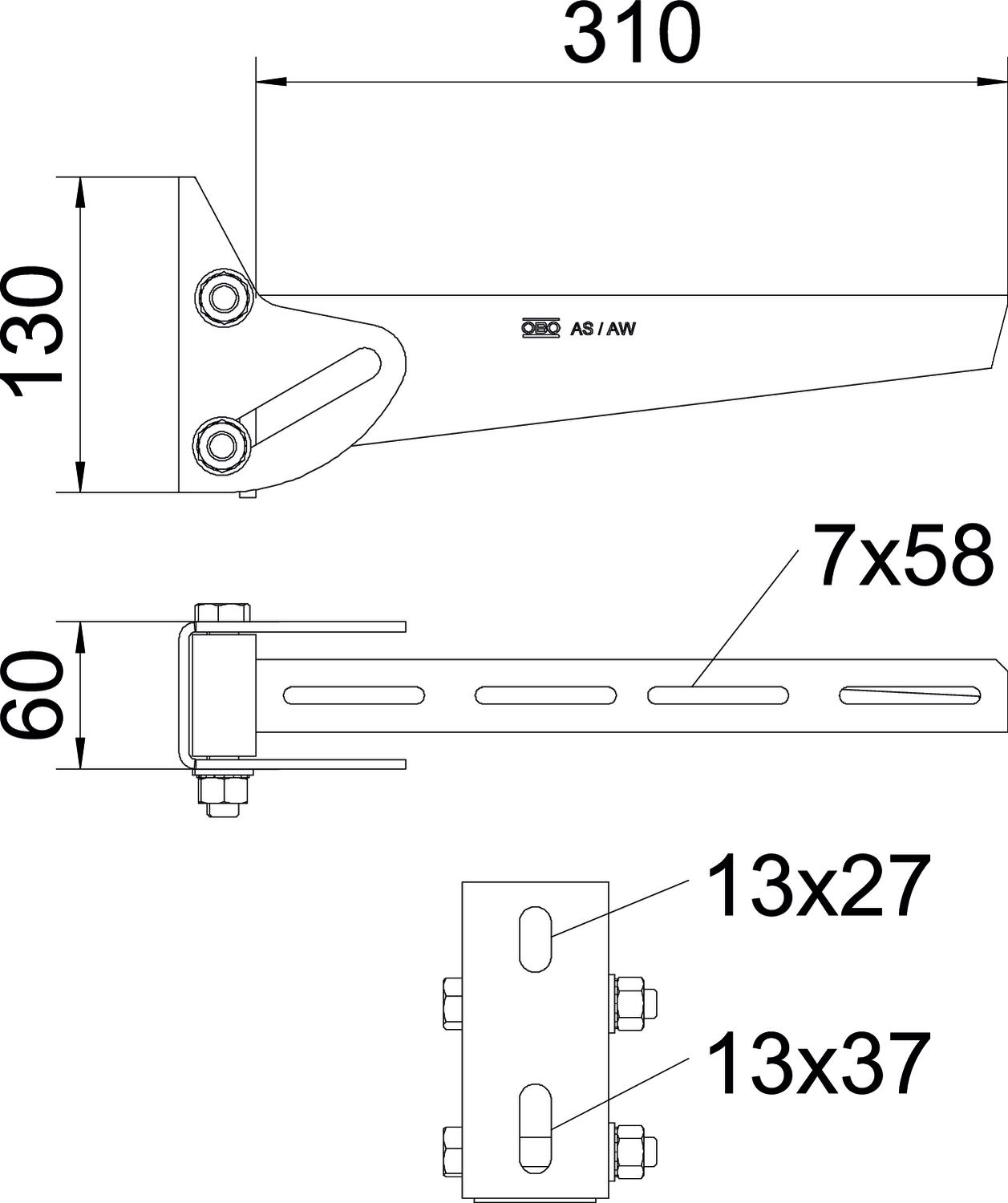

Dimension A 60 mm Dimension B 310 mm Dimension H 130 mm Height 130 mm Length 60 mm Width 310 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 4,3534 kg CO2e / 1 Piece CO₂ Footprint (GWP) 4,3534 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
