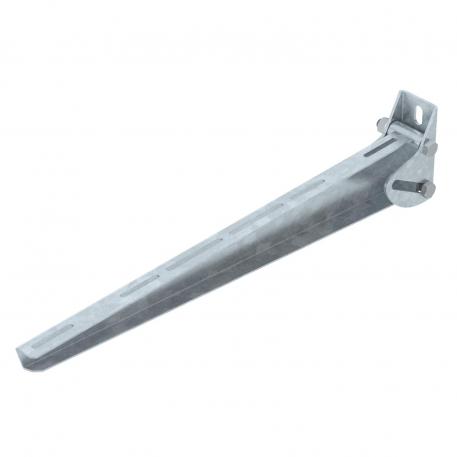

Wall bracket, variable AWV FT
Item no. 6419615 | EAN 4012196206537
- Product description
-
Product descriptionVariable wall bracket for fixing to sloping or vaulted walls.
Usable bracket length dependent on adjustment angle. The largest possible adjustment angle is 30°.
-
- Technical data
-
Technical data
Colour zinc Dimension B610mm F in kN 0,9 kN for width max. 90 mm for width min. 60 Hole diameter 13 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Dimensions

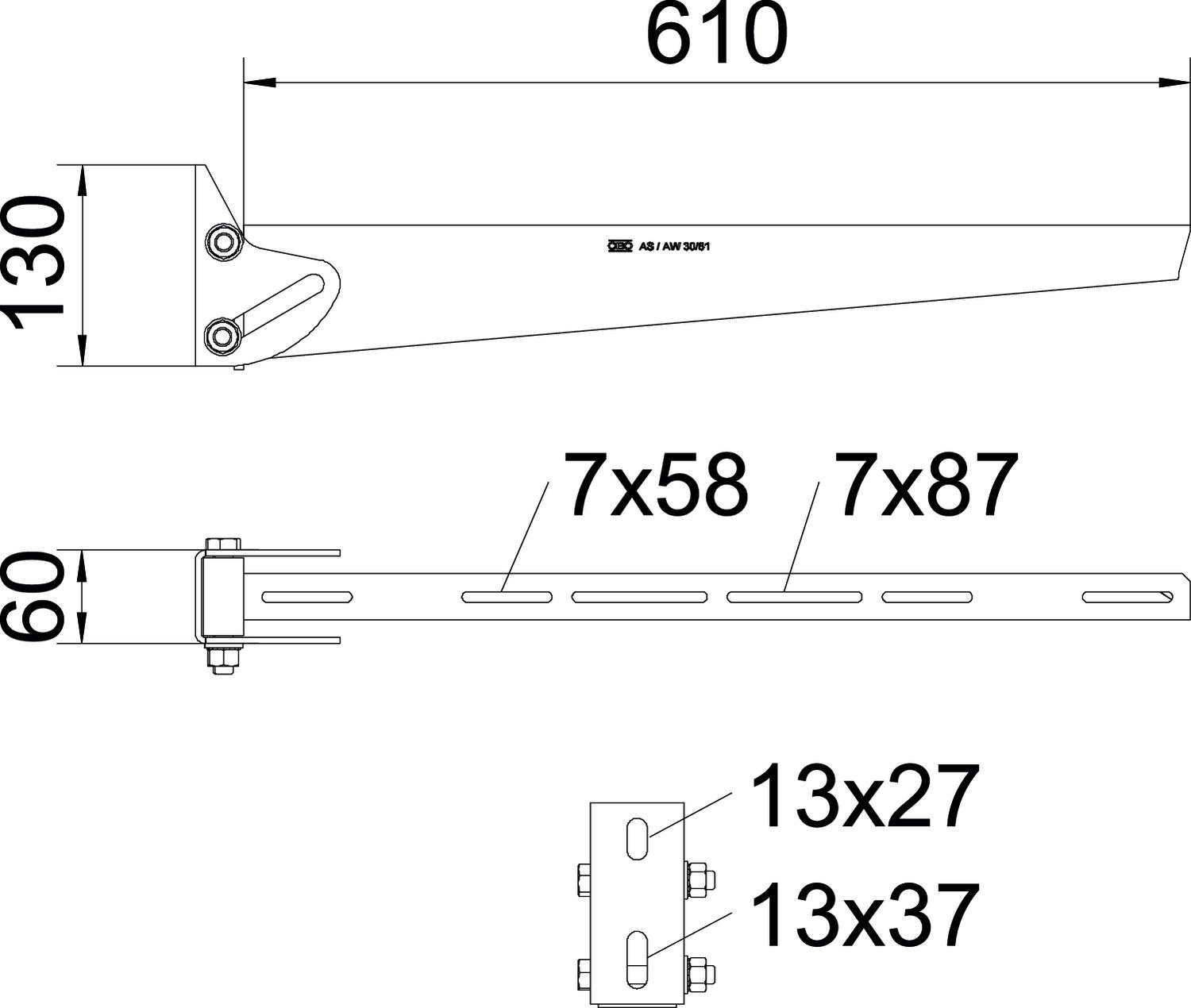

Dimension A 60 mm Dimension B 610 mm Dimension H 130 mm Height 130 mm Length 60 mm Width 610 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 6,1523 kg CO2e / 1 Piece CO₂ Footprint (GWP) 6,1523 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet AWV 61 FT / 6419615 , 0.21MB , pdfEU declaration of conformity AWV 61 FT / 6419615 , 0.11MB , pdfUK Declaration of Conformity AWV 61 FT / 6419615 , 0.09MB , pdfREACH Declaration of conformity AWV 61 FT / 6419615 , 0.12MB , pdfRoHS Declaration of conformity AWV 61 FT / 6419615 , 0.12MB , pdfEnvironmental Product Declaration (EPD) AWV 61 FT / 6419615 , 2.03MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, U support systems , 2.02MB , pdf
