Note: This article is discontinued.
Connectors
Item no. 7216633 | EAN 4012196532230
- Product description
-

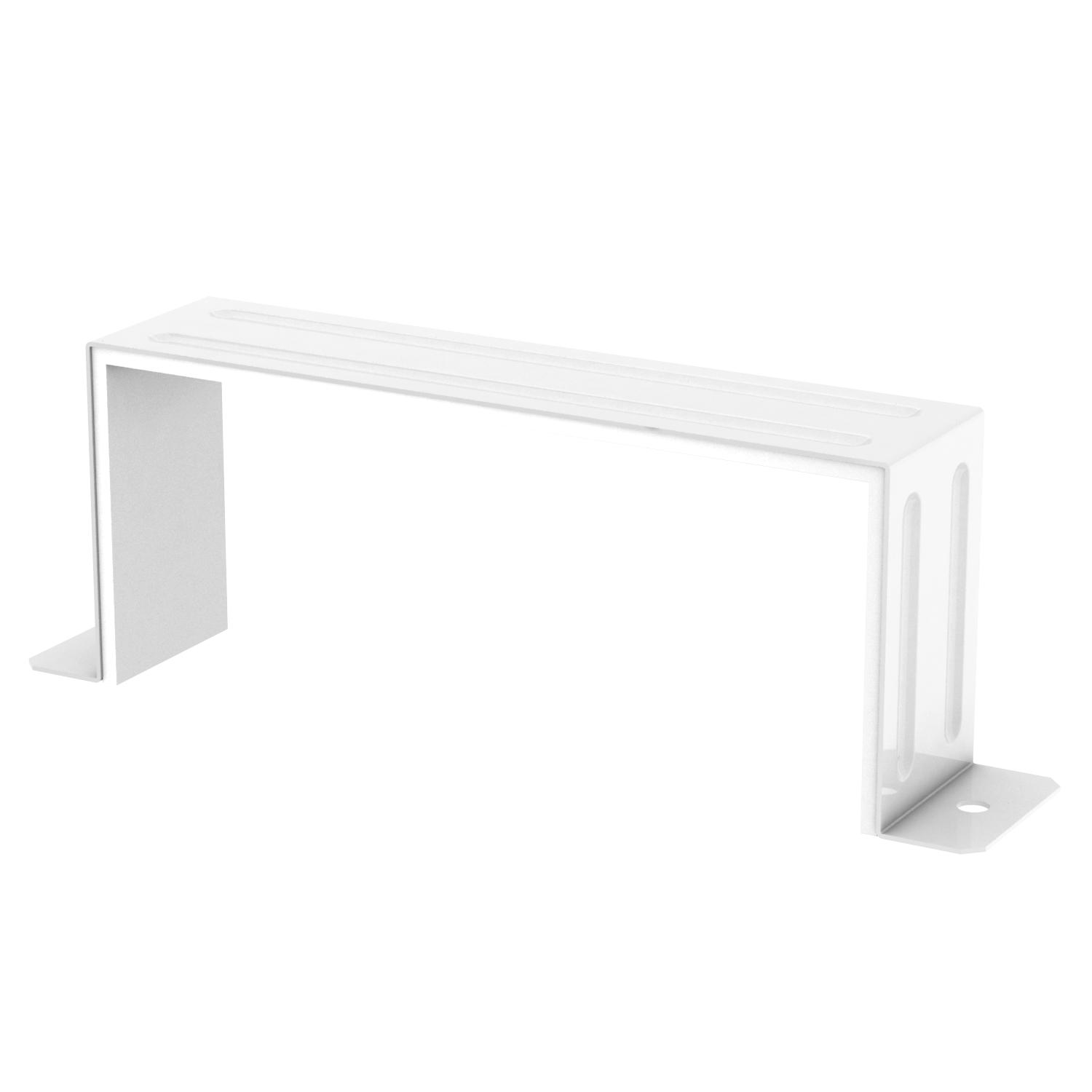

Product descriptionClamp with integrated seal for BKSM 1025, for connection and smoke-proof sealing of duct joints. Usable at min. 30 mm side distance of the duct to the ceiling or wall. Including loose seal for combination with support profile.
-
- Technical data
-
Technical data

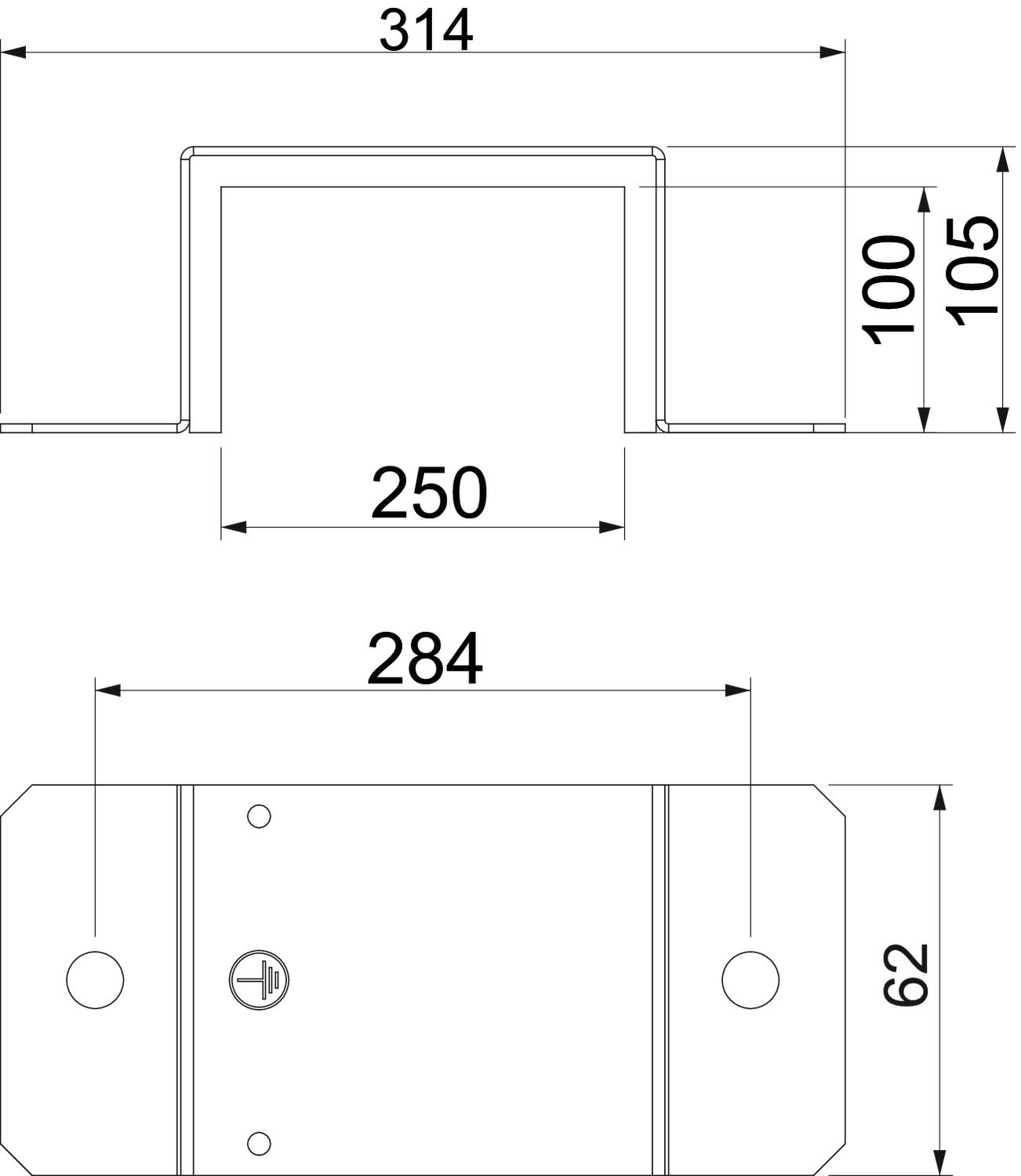

Colour Pure white; RAL 9010 Dimension 100x250 Dimension A 314 mm Dimension B 250 mm Dimension d 284 mm Dimension H 100 mm Dimension t 105 mm Fire resistance class I − installation duct 120 Material Steel Surface Painted Type of accessory Miscellaneous - All types
- Downloads
-
Data sheet BSKM-VD 1025RW / 7216633 , 0.15MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Rapid fire protection duct , 0.09MB , pdfNo invitation to tender text is available for this product.
