Note: This article is discontinued.
Connectors
Item no. 7216510 | EAN 4012196462094
- Product description
-

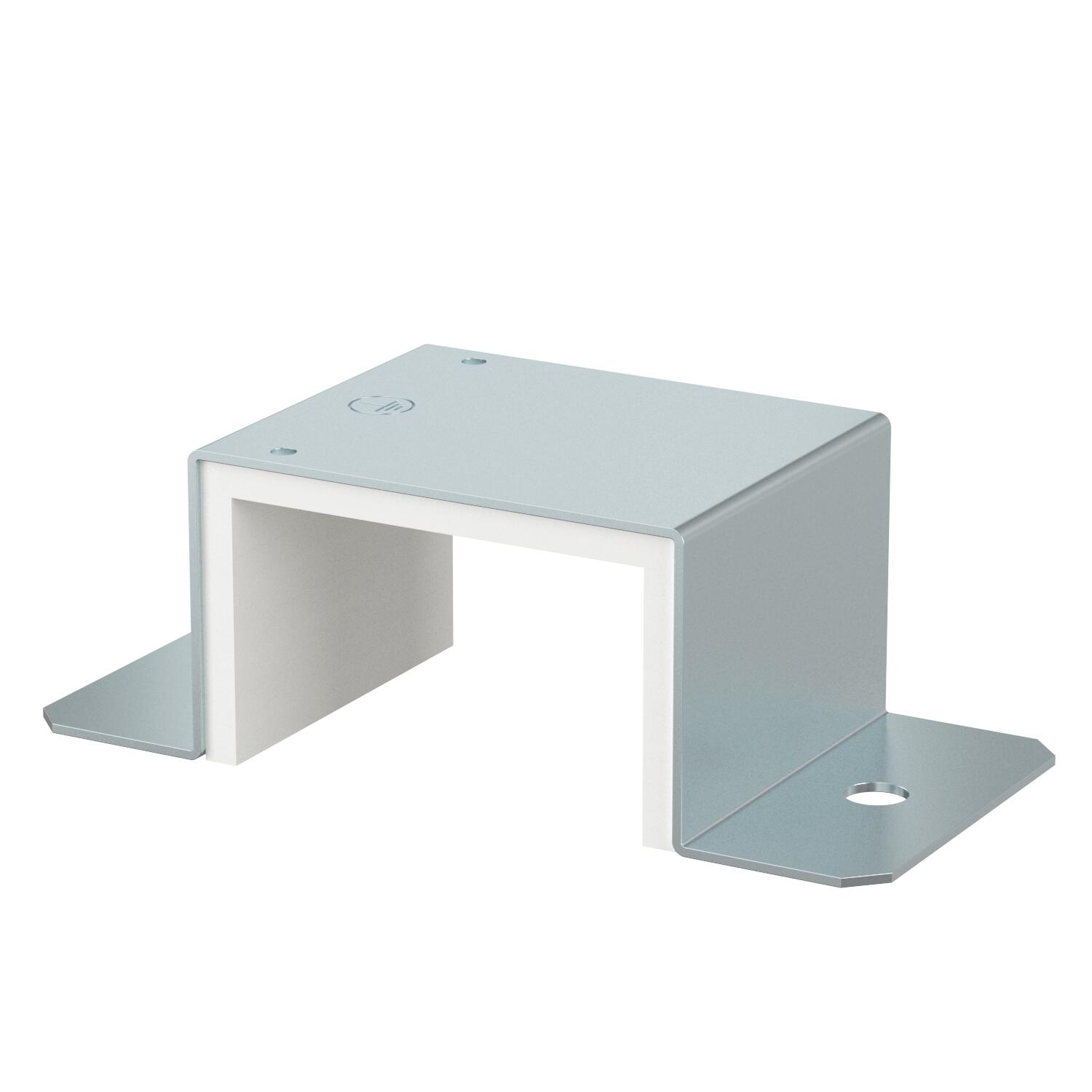

Product descriptionClamp with integrated seal for BKSM 0407, for connection and smoke-proof sealing of duct joints. Usable at min. 30 mm side distance of the duct to the ceiling or wall. Including loose seal for combination with support profile.
- Technical data
-
Technical data

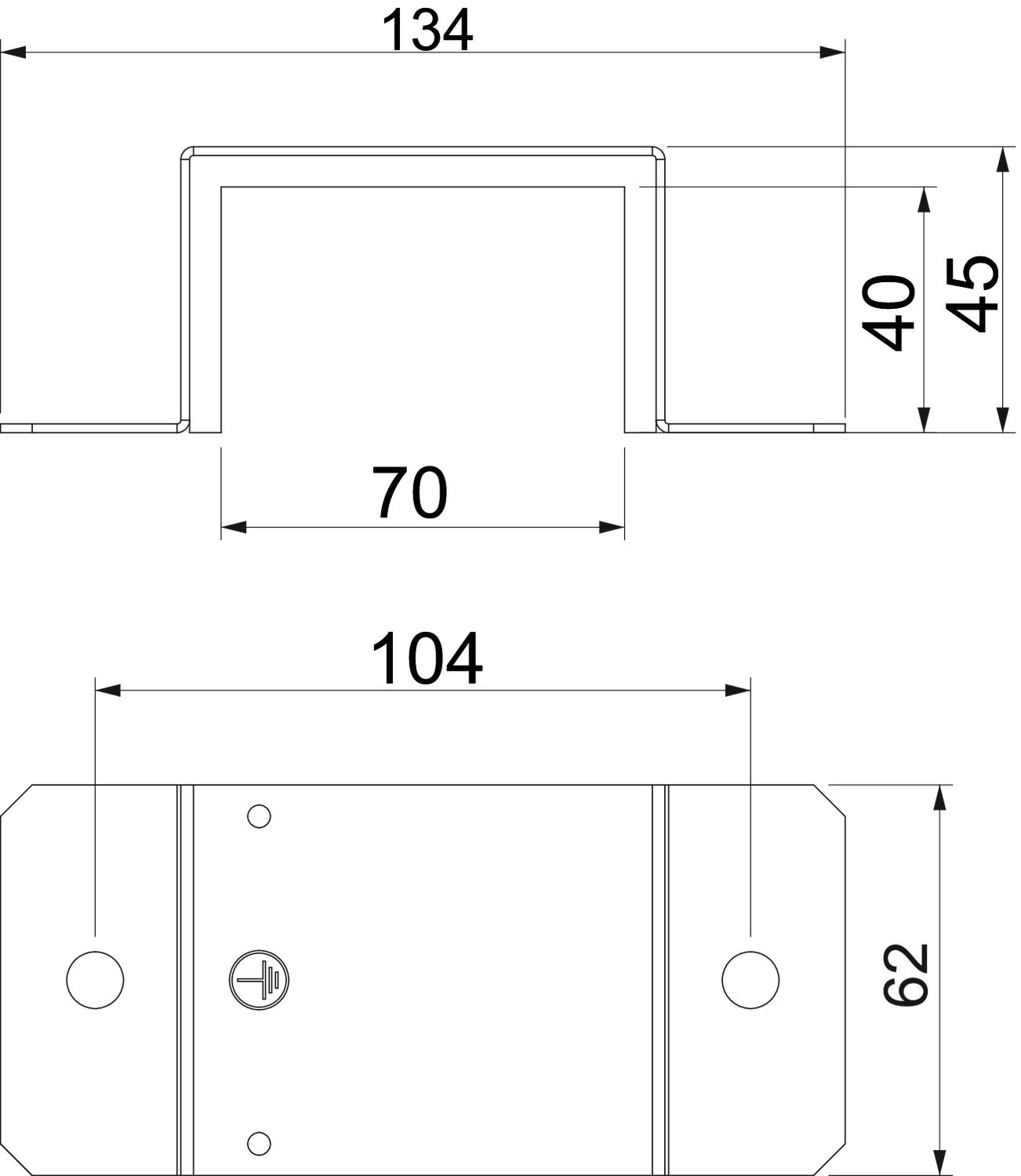

Colour zinc Dimension 40x70 Dimension A 134 mm Dimension B 70 mm Dimension d 104 mm Dimension H 40 mm Dimension t 45 mm Fire resistance class I − installation duct 120 Material Steel Surface Strip galvanized Type of accessory Miscellaneous - All types
- Downloads
-
Data sheet BSKM-VD 0407 FS / 7216510 , 0.20MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Rapid fire protection duct , 0.09MB , pdfNo invitation to tender text is available for this product.
